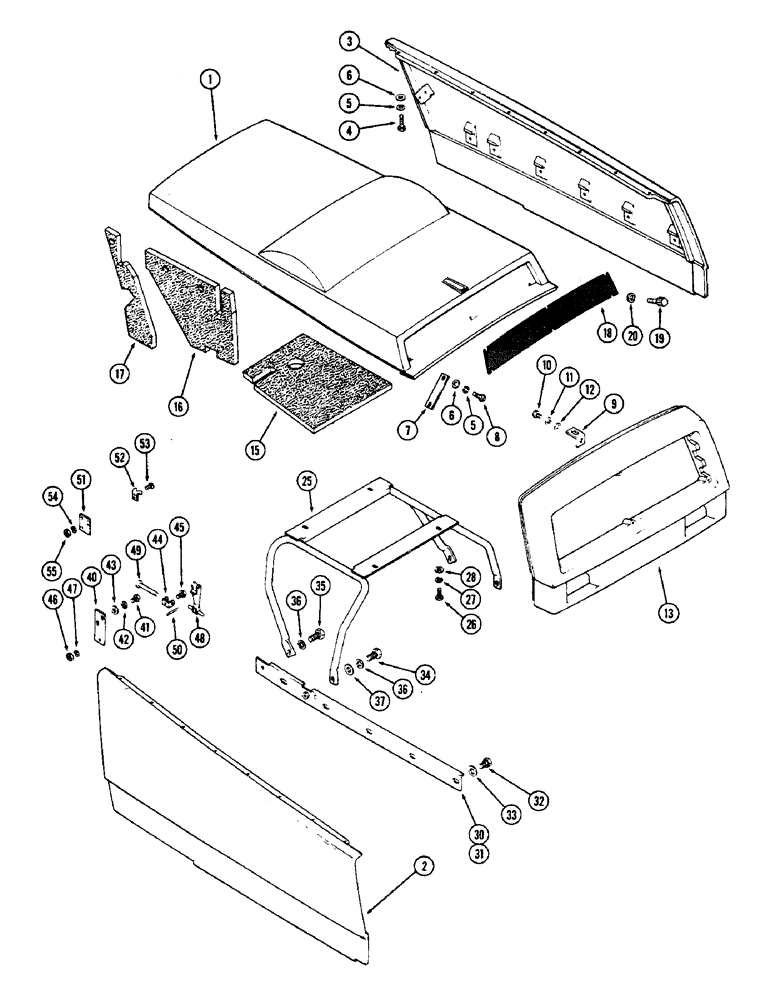

Запчасти Case IH 2870 (354) - FRONT HOOD, URETHANE (09) - CHASSIS/ATTACHMENTS

1

A148657

HOOD - top (See kit A46404 figure 360)

1шт.

2

A148366

PANEL - hood, right hand side (See kit A46404 figure 360)

1шт.

3

A148367

PANEL - hood, left hand side (See kit A46404 figure 360)

1шт.

4

113-36

BOLT - lock, 1/4 x 1" NC hex

16шт.

5

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

28шт.

6

195-518

WASHER,1/4", SAE

- 9/32 x 5/8 x 1/16"

28шт.

7

A148680

STRAP - top hood to side panels

6шт.

8

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

12шт.

9

A152155

BRACKET

- side panel and top, Serial Range: hood-grille

11шт.

10

113-6

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

22шт.

11

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

22шт.

12

195-518

WASHER,1/4", SAE

- 9/32 x 5/8 x 1/16"

22шт.

13

REF

INSTRUCTION

GRILLE - top (See page 346)

1шт.

15

A150309

PAD - heat deflector, right hand side top hood

1шт.

16

A150311

PAD - heat deflector, right hand side panel rear

1шт.

17

A150310

PAD - heat deflector, right hand side panel front

1шт.

18

A144254

SCREEN

- air scoop, top hood

1шт.

19

61-48

HEX SOC SCREW,1/4"-20 x 1/2"

SCREW - 1/4 x 1/2" NC socket head

6шт.

20

A152156

PACKAGE

WASHER - trimmed, 1/4 x 5/8 x 1/16"

6шт.

25

A148716

SUPPORT - top hood

1шт.

26

113-37

BOLT,Locking, 1/4" - 20 x 3/4", Gr 5, Full Thd

- 1/4 x 3/4" NC hex

4шт.

27

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

28

195-518

WASHER,1/4", SAE

- 1/4 x 5/8 x 1/16"

4шт.

30

A148596

ANGLE - support, right hand panel and pivot

1шт.

31

A148597

ANGLE - support, left hand panel and pivot

1шт.

32

A150914

BOLT - shoulder, angle to side panel (Replaces A58471)

10шт.

33

195-529

WASHER,7/16", SAE

- 1/2 x 15/16 x 1/16"

10шт.

34

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.

35

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

36

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

37

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16"

4шт.

40

A150691

PLATE

- latch hook, hood rear

2шт.

41

113-6

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

4шт.

42

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

43

195-518

WASHER,1/4", SAE

- 9/32 x 5/8 x 5/64"

4шт.

44

L47159

BRACKET

- hook anchor

2шт.

45

182-515

SCREW,Sl Pan Hd, 5/16" - 18 x 5/8"

- 5/16 x 5/8" NC pan head

2шт.

46

9635082

NUT,5/16" - 18, Gr 5

2шт.

47

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

48

L47157

HOOK

- hood latch, rear

2шт.

49

T11232

PIN

- clevis, Serial Range: hook-bracket

2шт.

50

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

51

A150692

PLATE

- latch keeper

2шт.

52

L47158

BRACKET

KEEPER - hood latch

2шт.

53

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- #10-24 x 1/2" pan head

4шт.

54

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

55

129-17

NUT,Hex, #10 - 24

NUT - hex #10-24

4шт.
