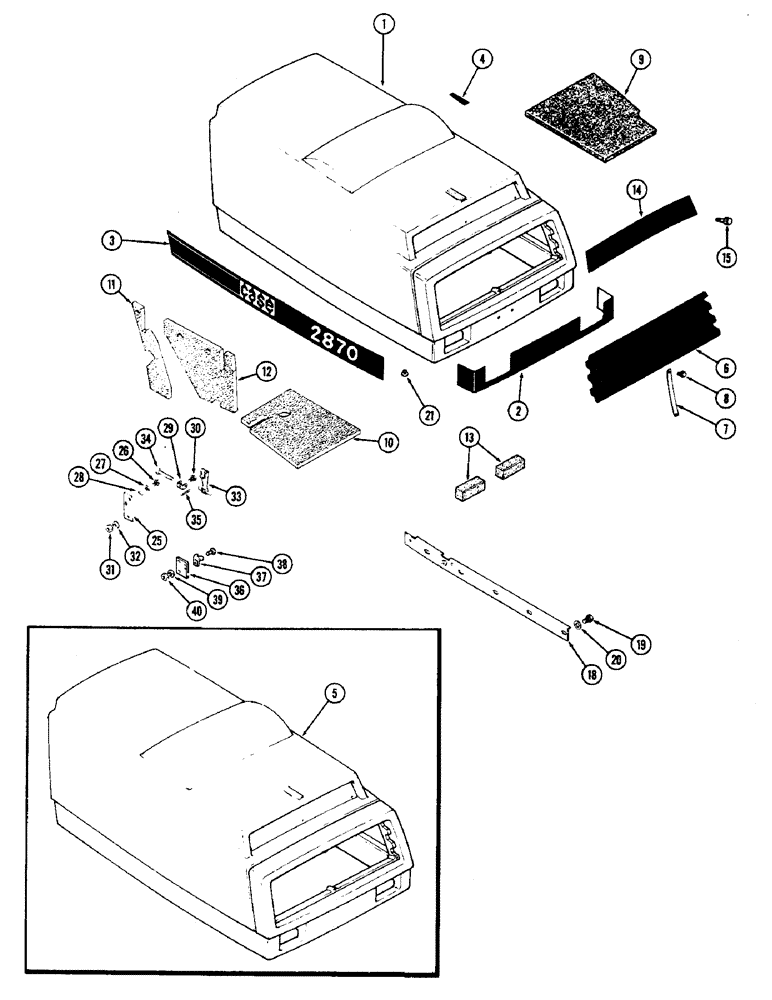

Запчасти Case IH 2870 (352) - FRONT HOOD, FIBERGLASS (09) - CHASSIS/ATTACHMENTS

1

A160400

GUARD

HOOD - front (1st used P.I.N. 8829086 and after)

1шт.

2

321-4434

DECAL

- front grille (Used with A160400 hood)

1шт.

3

321-4429

DECAL

- 2870, right hand side (Used with A160400 hood)

1шт.

3

321-4430

DECAL

- 2870, left hand side (Used with A160400 hood)

1шт.

4

321-4142

DECAL

- sight (Used with A160400 hood)

1шт.

5

A151216

HOOD

- front, Serial Range: -8829086

1шт.

6

A148579

FILTER SCREEN

SCREEN - upper grille

1шт.

7

A148581

RETAINER

- screen, upper grille

2шт.

8

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

6шт.

9

A149248

PAD - heat deflector, hood (1st used P.I.N. 8828199)

1шт.

10

A150309

PAD - heat deflector, right hand side hood top, Serial Range: -8828199

1шт.

11

A150311

PAD - heat deflector, right hand side panel rear, Serial Range: -8828199

1шт.

12

A150310

PAD - heat deflector, right hand side panel front, Serial Range: -8828199

1шт.

13

A151469

SEAL

- upper hood (One each side above head lights) 2" square x 6" long (50.8 x 152.4 mm)

2шт.

14

A151361

SCREEN

- air scoop, hood top

1шт.

15

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

6шт.

18

A148596

ANGLE - support, right hand panel and pivot

1шт.

18

A148597

ANGLE - support, left hand panel and pivot

1шт.

19

A150914

BOLT - shoulder, angle to side panel

10шт.

20

195-529

WASHER,7/16", SAE

- 15/32 x 59/64 x 1/16"

10шт.

21

A144246

FENDER

BUMPER - rubber

4шт.

25

A150691

PLATE

- latch hook, hood rear

2шт.

26

113-6

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

4шт.

27

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

28

195-518

WASHER,1/4", SAE

- 9/32 x 5/8 x 5/64"

4шт.

29

L47159

BRACKET

- hook anchor

2шт.

30

182-515

SCREW,Sl Pan Hd, 5/16" - 18 x 5/8"

- 5/16 x 5/8" NC pan head

2шт.

31

9635082

NUT,5/16" - 18, Gr 5

2шт.

32

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

33

L47157

HOOK

- hood latch, rear

2шт.

34

T11232

PIN

- clevis, Serial Range: hook-bracket

2шт.

35

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

36

A150692

PLATE

- latch keeper

2шт.

37

L47158

BRACKET

KEEPER - hood latch

2шт.

38

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- #10-24 x 1/2" pan head

4шт.

39

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

40

129-17

NUT,Hex, #10 - 24

NUT - hex #10-24

4шт.
