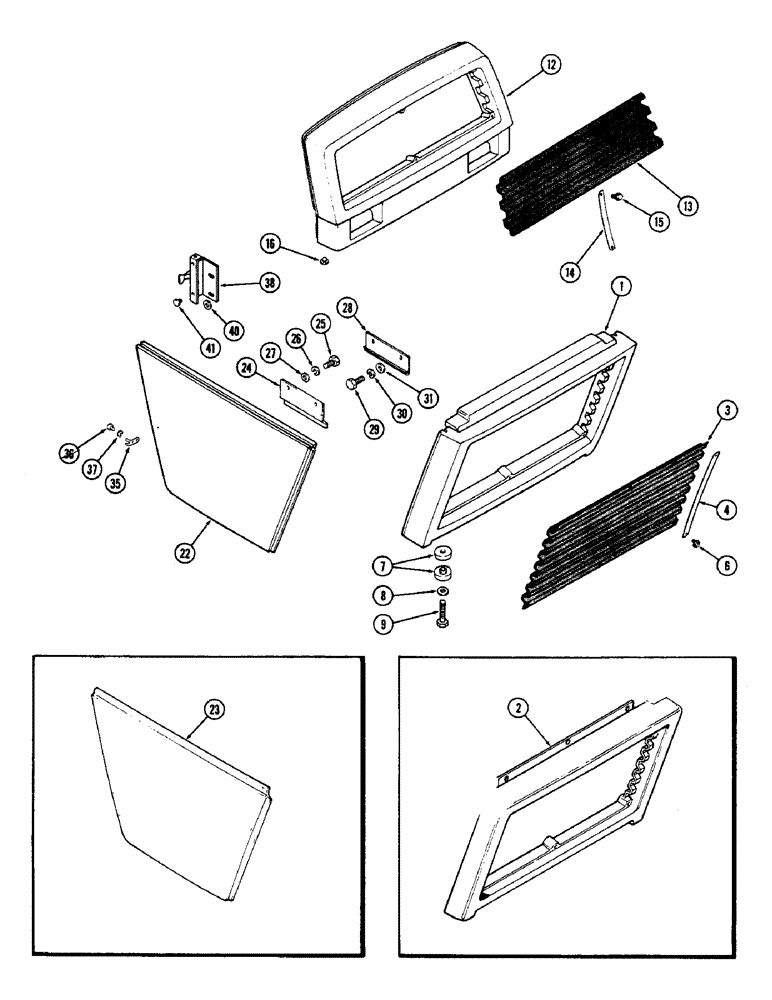

Запчасти Case IH 2870 (346) - GRILLE AND PANELS, WITH URETHANE HOOD (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
A148371
GRILLE
- lower (Urethane) (Order A160284) (See Ref. 2)
1шт.
2
A160284
GRILLE
- lower (Fiberglass)
1шт.
3
NLS
NO LONGER SERVICED
SCREEN - lower grille
1шт.
4
A150736
RETAINER
- screen left hand
1шт.
5
A150737
RETAINER
- screen right hand
1шт.
6
121-3
SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
6шт.
7
A144232
BUSHING
-, Serial Range: grille-frame
6шт.
8
195-524
WASHER,5/16"
- 3/8 x 1-1/8 x 1/16"
3шт.
9
113-2210
BOLT - lock, 3/8 x 1-3/4" NC hex nylock
3шт.
12
A148370
GRILLE - upper (See kit A46404, figure 360)
1шт.
13
A148579
FILTER SCREEN
SCREEN - upper grille
1шт.
14
A148581
RETAINER
- screen, upper grille
2шт.
15
121-3
SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
6шт.
16
A144246
FENDER
BUMPER - rubber
4шт.
22
A148372
PANEL
- right hand front (Urethane) (See Ref. 23)
1шт.
22
A148373
PANEL
- left hand front (Urethane) (See Ref. 23)
1шт.
23
A160281
PANEL
- right hand front (Fiberglass) (Can be used for A148372)
1шт.
23
A160282
PANEL
- left hand front (Fiberglass) (Can be used for A148373)
1шт.
24
A148105
RETAINER
- front panel, right hand and left hand
2шт.
25
113-221
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5
4шт.
26
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
27
195-525
WASHER,3/8", SAE
- 13/32 x 13/16 x 1/16"
1шт.
28
A148106
HOOK
- panel retainer
2шт.
29
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
4шт.
30
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
31
192-525
WASHER
- 13/32 x 13/16 x 1/16"
4шт.
35
A144245
NO LONGER SERVICED
KEEPER - latch, side panel
2шт.
36
113-1
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
2шт.
37
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
2шт.
38
A146543
LATCH
ASSEMBLY - right hand front panel
1шт.
38
A146545
LATCH
ASSEMBLY - left hand front panel
1шт.
40
195-108
WASHER,5/8"
- 11/16 x 1-3/4 x 9/64" (Latch to frame bolt)
4шт.
41
A144246
FENDER
BUMPER - rubber, Serial Range: panel-latch
6шт.
Выбрано товаров: 33
