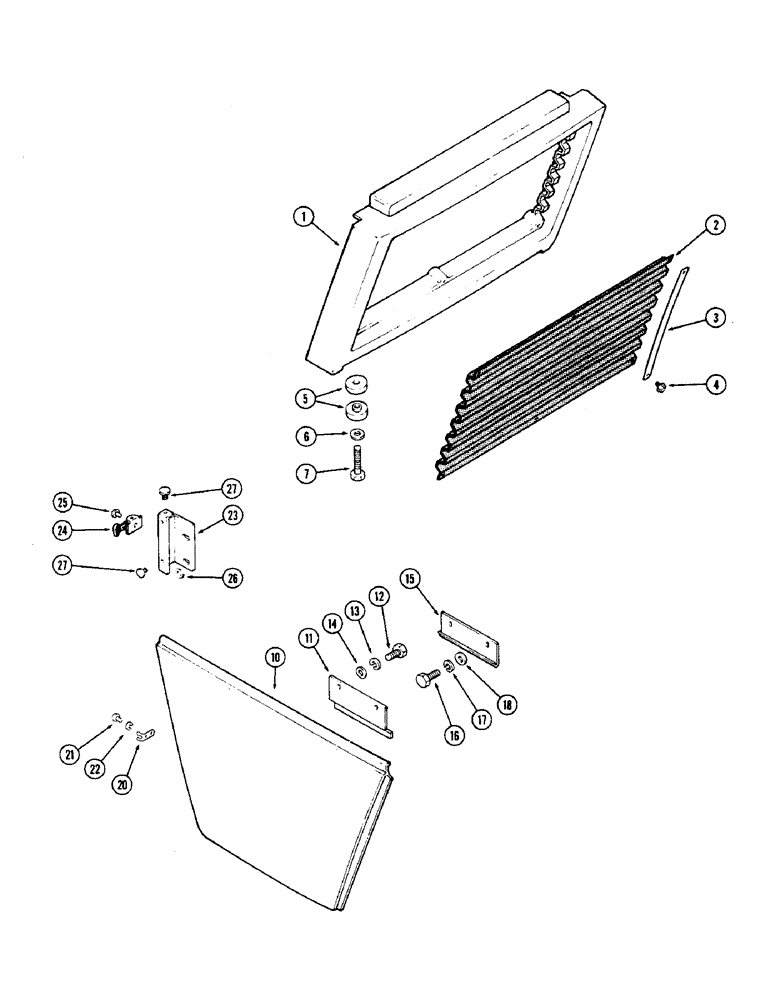

Запчасти Case IH 2870 (344) - GRILLE AND PANELS, WITH FIBERGLASS HOOD (09) - CHASSIS/ATTACHMENTS

1

A161328

GUARD

GRILLE - lower (Replaces A151218 and A160370)

1шт.

2

NLS

NO LONGER SERVICED

SCREEN - lower grille

1шт.

3

A150736

RETAINER

- screen, left hand

1шт.

3

A150737

RETAINER

- screen, right hand

1шт.

4

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

6шт.

5

A144232

BUSHING

-, Serial Range: grille-frame

6шт.

6

195-524

WASHER,5/16"

- 3/8 x 1-1/8 x 1/16"

3шт.

7

113-2210

BOLT - 3/8 x 1-3/4" NC hex nylock

3шт.

10

A151219

PANEL

- front, right hand

1шт.

10

A151220

PANEL

- front, left hand

1шт.

11

A148105

RETAINER

- front panel, right hand and left hand

2шт.

12

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

4шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

14

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16"

1шт.

15

A148106

HOOK

- retainer seat

2шт.

16

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

18

192-525

WASHER

- 13/32 x 13/16 x 1/16"

4шт.

20

A144245

NO LONGER SERVICED

KEEPER - latch, side panel

2шт.

21

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

22

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

23

A146544

BRACKET

- latch, right hand

1шт.

23

A146546

BRACKET

- latch, left hand

1шт.

24

A144244

LATCH

- flexible rubber

2шт.

25

151-553

RIVET,Pop, 1/8" x .337"

- 1/2 x 3/16" button, Latch to bracket

4шт.

26

195-108

WASHER,5/8"

- 11/16 x 1-3/4 x 9/64" (Latch to frame bolt)

4шт.

27

A144246

FENDER

BUMPER - rubber, Serial Range: panel-latch

6шт.
