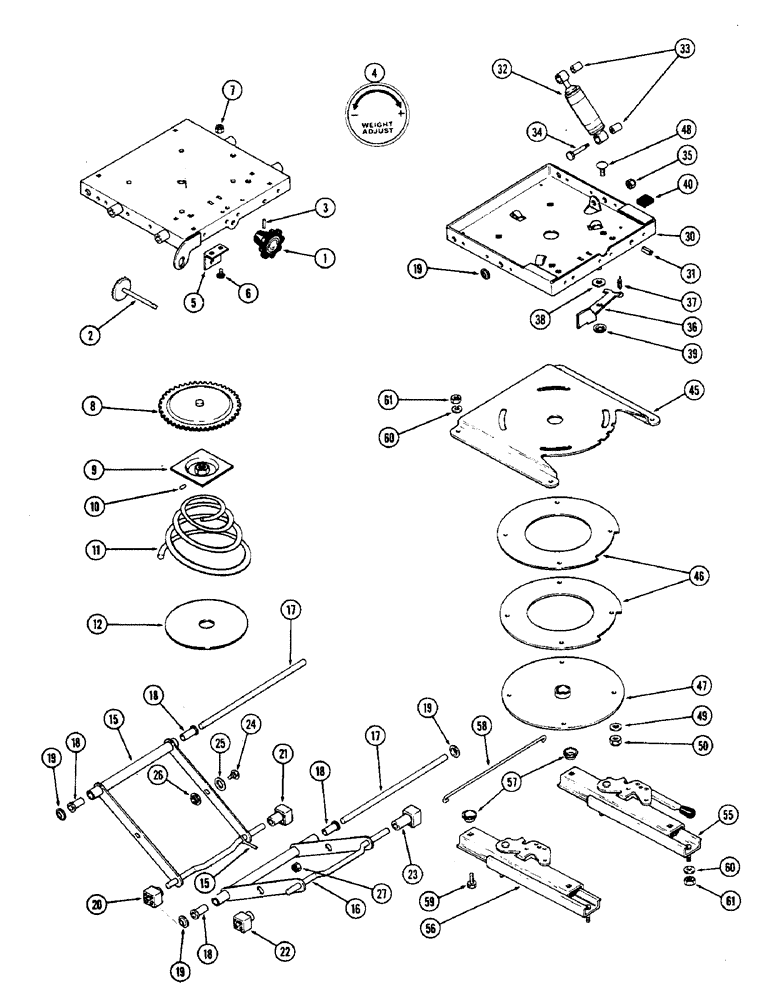

Запчасти Case IH 2870 (342) - SEAT (09) - CHASSIS/ATTACHMENTS

A139350

SEAT

AND SUSPENSION ASSEMBLY - (20 degree swivel), Includes: Ref. 1 - 61

1шт.

1

A45508

BUTTON

KNOB - weight adjustment

1шт.

2

A45513

GEAR

AMD SHAFT ASSEMBLY

1шт.

3

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, (3.97 x 25.4 mm) 5/32" x 1", Slotted

1шт.

4

A45511

DECAL

- weight adjustment

1шт.

5

A45531

BRACKET

- shaft

1шт.

6

411-48

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT - 1/4 x 1/2" NC carriage

2шт.

7

131-2

NUT,1/4"-20, GB

NUT - 1/4" NC hex jam

2шт.

8

A45505

GEAR

AND SHAFT ASSEMBLY

1шт.

9

A45504

SPRING WASHER

- spring

1шт.

10

138-73

LOCK PIN,5/32" x 3/4", Slotted

PIN, (3.97 x 19.05 mm) 5/32" x 3/4", Slotted

1шт.

11

A45497

SPRING

- control

1шт.

12

A45530

PAD

PIN - spring

1шт.

14

A45533

TUBE

ARM ASSEMBLY - outer

1шт.

15

A47070

INDICATOR

- ride height

1шт.

16

A45532

TUBE

ARM ASSEMBLY - inner

1шт.

17

A45057

SHAFT

- bearing (Replaces A45506)

2шт.

18

A45496

TUBE

- bearing

4шт.

19

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, (Pal type) Push, 1/2"

4шт.

20

A45512

BLOCK

- slider, 1-3/16" (30.16 mm)

1шт.

21

A45516

BLOCK

- slider, 2-3/16" (55.56 mm)

1шт.

22

A45515

BLOCK

- slider, 1-9/16" (39.69 mm)

1шт.

23

A45517

BLOCK

- slider, 2-9/16" (65.09 mm)

1шт.

24

A45569

STEP BOLT

BOLT - 3/8 x 1" NC carriage

2шт.

25

A45110

WASHER

- spacer

2шт.

26

A45498

BUSHING

BEARING - cross pivot

2шт.

27

131-6

LOCK NUT,3/8"-16, GC

NUT - 3/8" NC hex jam

2шт.

30

A45525

BASE

ASSEMBLY - lower, with swivel

1шт.

31

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, (M6.35 x 25.4) 1/4" x 1", Slotted

1шт.

32

A45503

SHOCK ABSORBER

- seat

1шт.

33

A45501

BUSHING,0.504" ID x 0.87" OD x 1.417"

BEARING - shock absorber

2шт.

34

A45056

STEP BOLT

BOLT - shoulder (Replaces A45502)

1шт.

35

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - 3/8" NC hex nylock

1шт.

36

A45520

LATCH

- swivel

1шт.

37

A45521

SPRING

- latch swivel

1шт.

38

A45519

WASHER

- spacer

1шт.

39

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, (Pal type) Push, 1/2"

1шт.

45

A45582

PLATE

- swivel latch

1шт.

46

A45514

DISC

BEARING - swivel

2шт.

47

A45526

PLATE

ASSEMBLY - bottom swivel

1шт.

48

11-620

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G2

BOLT - 3/8 x 1-1/4" NC carriage

4шт.

49

195-25

WASHER,3/8"

- 3/8 x 13/16 x 1/16"

4шт.

50

131-6

LOCK NUT,3/8"-16, GC

NUT - 3/8" NC hex

4шт.

55

A45522

SLIDE

- with handle

1шт.

56

A45523

SLIDE

- locking

1шт.

57

NSS

NOT SOLD SEPARAT

SPACER - slides (Supplied with slides)

4шт.

58

A45524

ROD

- latch connecting

1шт.

59

A47172

BOLT

- 5/16 x 1-1/8" NC carriage

4шт.

60

92-5

LOCK WASHER,5/16"

4шт.

61

9635082

NUT,5/16" - 18, Gr 5

- 5/16" NC hex

4шт.
