Запчасти Case IH 2870 (014) - ETHER STARTING AID, 674 CUBIC INCH DIESEL ENGINE, FIELD INSTALLATION (02) - ENGINE

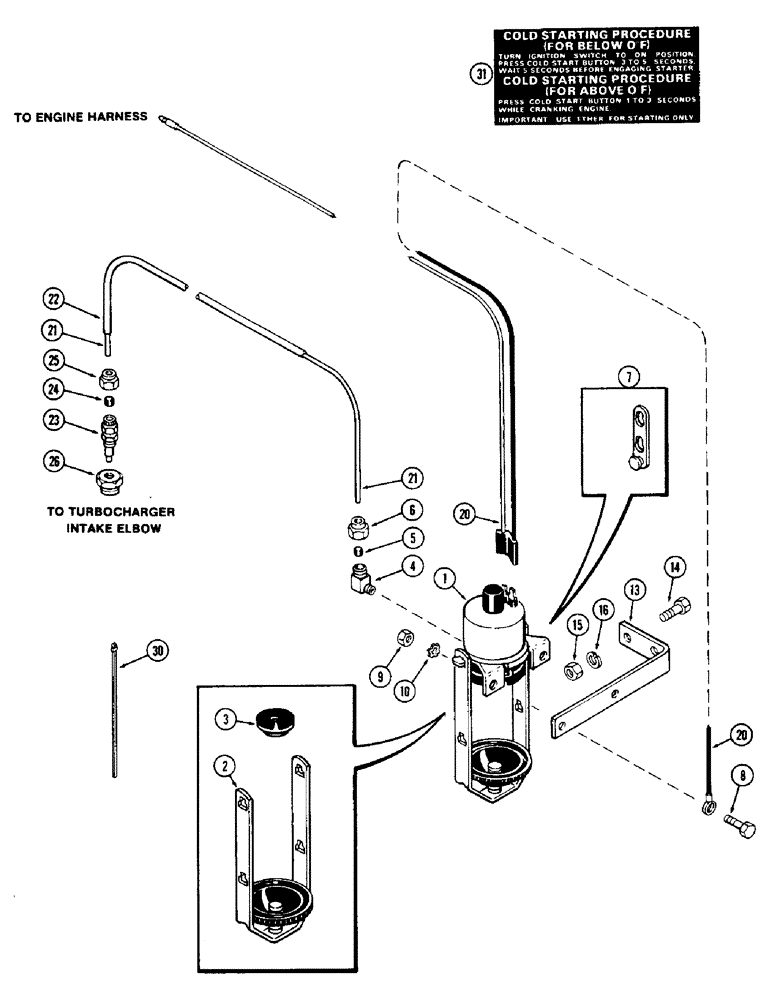

Схема запчастей Case IH 2870 - (014) - ETHER STARTING AID, 674 CUBIC INCH DIESEL ENGINE, FIELD INSTALLATION (02) - ENGINE
2
22
21
21
8
4
30
20
23
6
3
25
24
1
20
31
9
5
10
26

Артикул

Название

Примечание

Количество

A142495

KIT

STARTING AID KIT - ether, Includes: Ref. 1 - 26

1шт.

1

A143381

SOLENOID

ASSEMBLY - ether injection, Includes: Ref. 2 - 6

1шт.

2

A45687

CLAMP

HANGER ASSEMBLY - ether can

1шт.

3

R30786

GASKET

- ether can

1шт.

4

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

Assy, Incl. Ref 5 & 6 90º, 5/16"-24 x 1/8" NPT, Comp

1шт.

5

222-650

SLEEVE,1/8" Tube, Comp

(3.18 mm) 1/8" Tube, Comp

1шт.

6

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

- for 1/8" tube (3.18 mm) 5/16"-24, 45º Fl, Comp

1шт.

7

R30812

LINK

- hanger extension

2шт.

8

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

9

9635082

NUT,5/16" - 18, Gr 5

2шт.

10

192-45

LOCK WASHER

- 5/16" internal/external Shakeproof

2шт.

13

A146674

BRACKET

SUPPORT - solenoid

1шт.

14

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

16

192-21

LOCK WASHER,3/8"

WASHER - 5/16" lock

2шт.

20

A142480

HARNESS ASSEMBLY - wire

1шт.

21

A142475

TUBE - plastic, solenoid to injector, 1/8" OD x 45" (3.18 x 1143 mm)

1шт.

22

A135026

HOSE

TUBE - plastic, cover, 1/4" OD x 38" (6.35 x 965.2 mm)

1шт.

23

A145069

NOZZLE INJECTION

INJECTOR ASSEMBLY - turbocharger intake (Replaces A62446), Includes: Ref. 24 and 25

1шт.

24

222-650

SLEEVE,1/8" Tube, Comp

(3.18 mm) 1/8" Tube, Comp

1шт.

25

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

- for 1/8" tube (3.18 mm) 5/16"-24, 45º Fl, Comp

1шт.

26

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

BUSHING - reducer, 1/4" PT to 1/8" PT

1шт.

30

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - nylon, harness (Replaces L11541), Includes: Ref. 31

2шт.

31

321-2946

DECAL

- cold start procedure

1шт.

Выбрано товаров: 24
