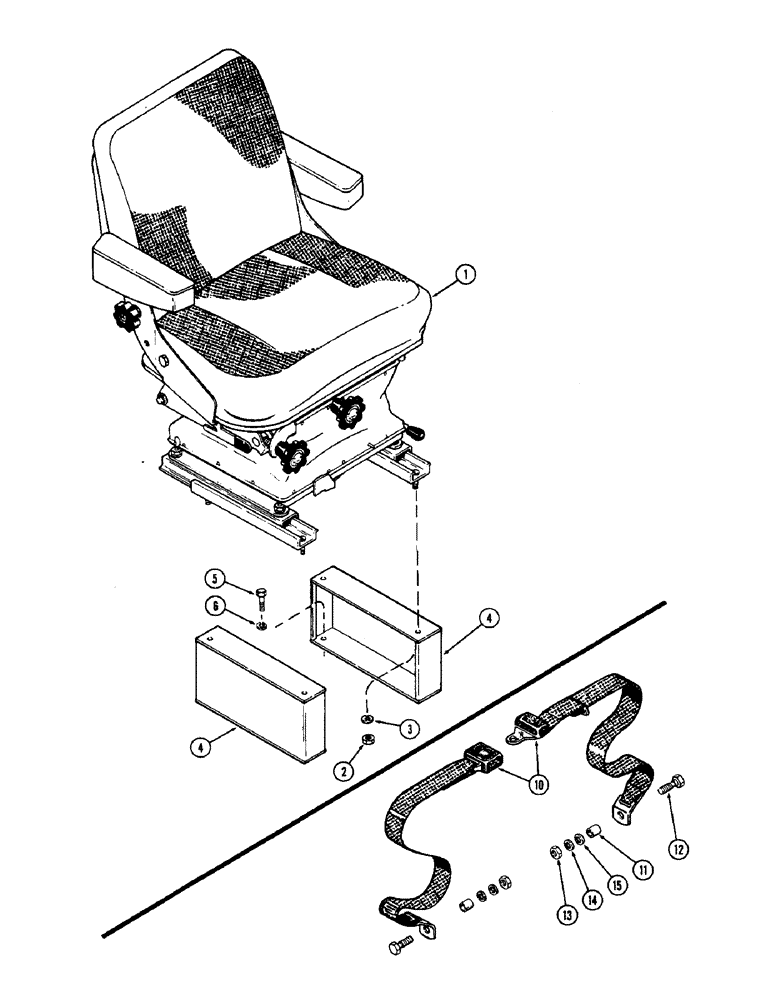

Запчасти Case IH 2870 (338) - SEAT MOUNTING (09) - CHASSIS/ATTACHMENTS

1

A139350

SEAT

ASSEMBLY - swivel (See figure 340)

1шт.

2

9635082

NUT,5/16" - 18, Gr 5

Seat to support 5/16"-18, G5

4шт.

3

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

4

A149290

SUPPORT

- seal (For 3/8" mounting bolts)

2шт.

4

A144324

SUPPORT

- seat (For 5/16" mounting bolts) (Order 1-A149290 support and 4 each of 113-221 and 192-21)

2шт.

5

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

Support mounting Hex, 3/8"-16 x 7/8", G5, Full Thd

4шт.

5

187-1069

SELF-TAP SCREW,5/16" - 18 x 3/4"

BOLT - support mounting, 5/16 x 3/4" NC hex

4шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

10

A160404

SAFETY BELT

BELT ASSEMBLY - safety (Replaces A66391)

1шт.

11

A61946

STEP BOLT

BOLT - belt anchor, shoulder, 7/16 x 1-3/4" NF hex, safety

2шт.

12

A60907

BUSHING

SPACER - anchor bolt, 1/2 x 3/4 x 3/4" (12.7 x 19.05 x 19.05 mm), safety belt

2шт.

13

195-529

WASHER,7/16", SAE

- 7/16 x 15/16 x 1/16" (11.11 x 23.81 x 1.59 mm), safety belt

2шт.

14

192-22

LOCK WASHER,7/16"

WASHER, LOCK, , Safety belt 7/16"

2шт.

15

425-117

NUT,7/16"-20, G5

- 7/16" NF hex, safety belt

2шт.
