Запчасти Case IH 2870 (332) - COCKPIT AND FIREWALL, USED P.I.N. 8825418 AND AFTER (09) - CHASSIS/ATTACHMENTS

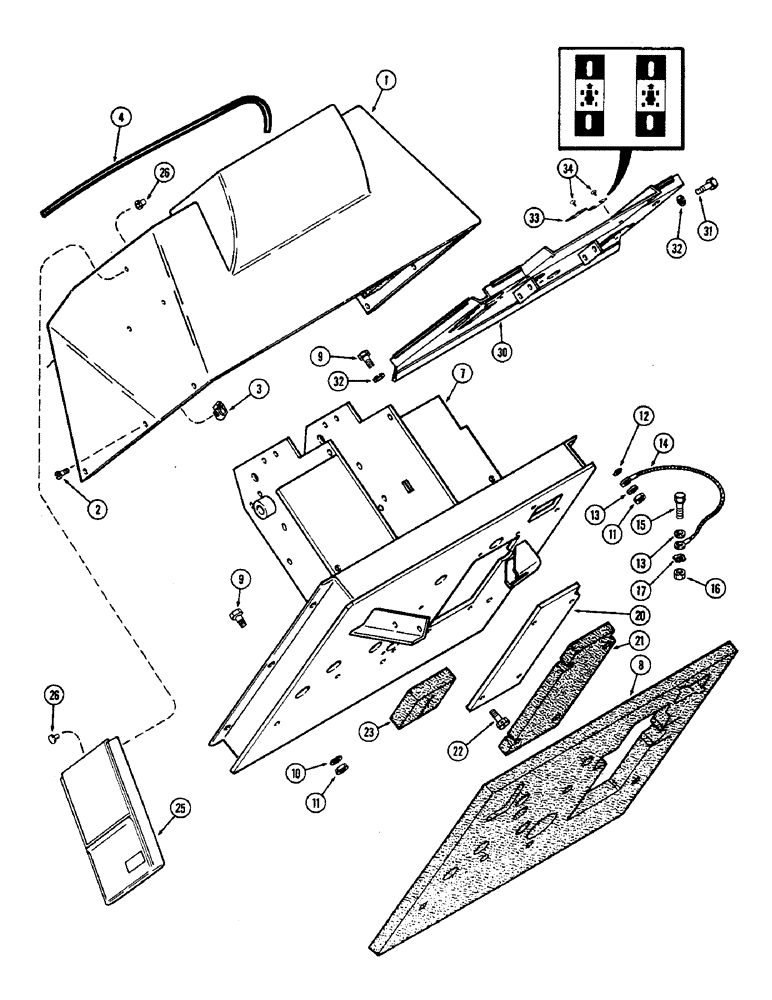

Схема запчастей Case IH 2870 - (332) - COCKPIT AND FIREWALL, USED P.I.N. 8825418 AND AFTER (09) - CHASSIS/ATTACHMENTS
26
4
3
17
11
20
23
12
32
15
9
13
10
13
31
30
16
21
32
9
25
8
11
26
7
14
34
22
33
1
2

Артикул

Название

Примечание

Количество

1

A144546

COWL

ING - instruments and cockpit

1шт.

2

A75390

STUD

- cowling

6шт.

3

A36042

CLIP

RECEPTACLE - cowling stud

6шт.

4

A76234

ROPE

CORD - cowling support

1шт.

7

A152106

SUPPORT

ASSEMBLY - cockpit and firewall (Replaces A148560), Includes: Ref. 8

1шт.

8

A144997

PAD

- firewall (Replaces A148561)

1шт.

9

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

10шт.

10

92-6

LOCK WASHER,3/8"

9шт.

11

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

8шт.

12

193-72

LOCK WASHER

- 3/8" internal/external Shakeproof

2шт.

13

195-104

WASHER,3/8"

- 7/16 x 1 x 1/16"

1шт.

14

A64704

STRAP

- ground

1шт.

15

113-2400

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

1шт.

16

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

17

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

1шт.

20

A77204

PLATE - cover, firewall opening (Without rear steering)

1шт.

21

A77205

PAD

- cover (Without rear steering)

1шт.

22

187-1069

SELF-TAP SCREW,5/16" - 18 x 3/4"

SCREW - self-tapping, 5/16 x 3/4" hex

4шт.

23

A142782

SEAL - brake rod opening

1шт.

25

A141933

BOX

- operator's manual

1шт.

26

A143300

FASTENER

-, Serial Range: box-cowling

3шт.

30

A144734

PANEL - instrument (With rear steering)

1шт.

30

A144729

PANEL - instrument (Without rear steering)

1шт.

31

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - 3/8 x 1/2" NC hex, instrument panel

4шт.

32

92-6

LOCK WASHER,3/8"

instrument panel 3/8"

4шт.

33

A147162

PLATE

- rear steering adjust, instrument panel

2шт.

34

182-556

SCREW,Cross Pan Hd, #10-24 x 1/4"

- #10-24 x 1/4" pan head, instrument panel

4шт.

Выбрано товаров: 27
