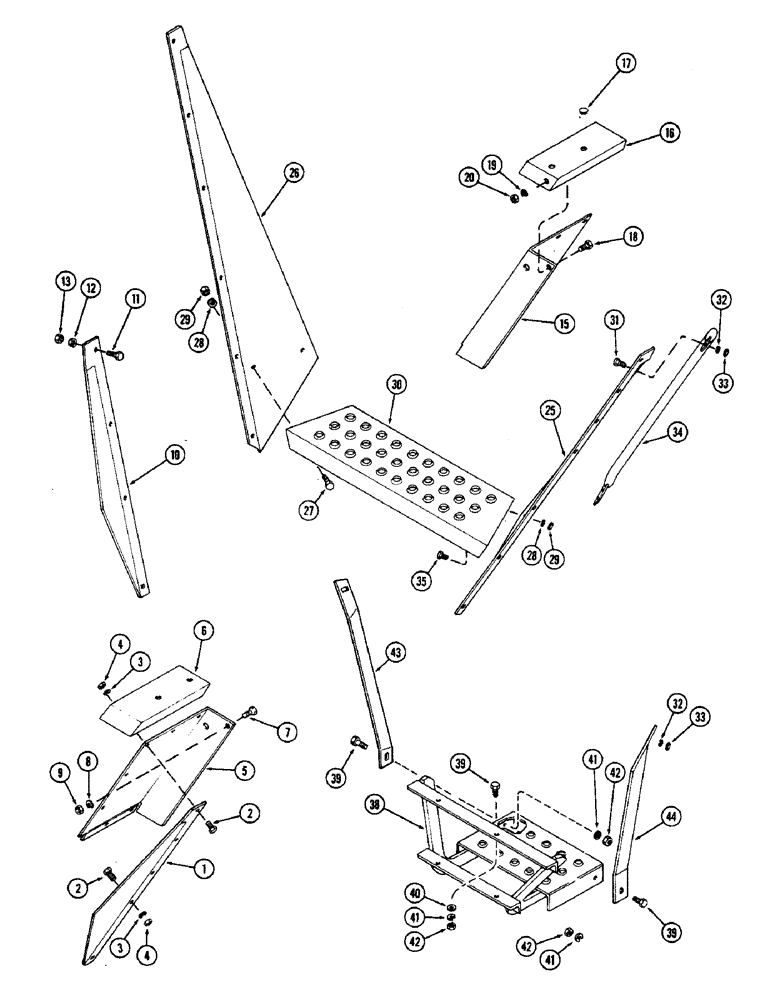

Запчасти Case IH 2870 (330) - WHEEL GUARDS, STEPS AND HANDRAILS (09) - CHASSIS/ATTACHMENTS

1

A140559

GUARD

- mud, right hand front

1шт.

2

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

2

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

1шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

4

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

5шт.

5

A144086

GUARD

- right hand front wheel

1шт.

6

A144087

CAP

- guard, right hand front

1шт.

7

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

5шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

5шт.

10

A140560

GUARD

- mud, right hand rear

1шт.

11

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

11

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

1шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

15

A144091

GUARD

- wheel, left hand front

1шт.

16

A144092

CAP

- guard, left hand front

1шт.

17

205-23

PLUG,17/32"

- button, 21/32" OD (16.67 mm)

2шт.

18

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

5шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

20

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

5шт.

25

A148665

BRACKET

- step mounting, left hand front

1шт.

26

A148666

BRACKET

- step mounting, left hand rear

1шт.

27

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

11шт.

27

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

2шт.

28

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

13шт.

29

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

13шт.

30

A144089

STEP

- upper

1шт.

31

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

32

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

33

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

34

A139487

RAIL

- hand

1шт.

38

A150909

STEP

- lower (1st used P.I.N. 8827805)

1шт.

38

A148845

STEP

- lower, Serial Range: -8826805

1шт.

39

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Lower step Hex, 3/8"-16 x 3/4", G5, Full Thd

3шт.

39

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

Lower step Hex, 3/8"-16 x 7/8", G5, Full Thd

3шт.

40

195-525

WASHER,3/8", SAE

- 3/8 x 13/16 x 1/16"

4шт.

41

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

42

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

5шт.

43

A150804

GUIDE

- lower step, right hand side (Used with A150909 step only)

1шт.

44

A150008

GUIDE

- lower step, left hand side (Used with A150909 and A148845 steps)

1шт.
