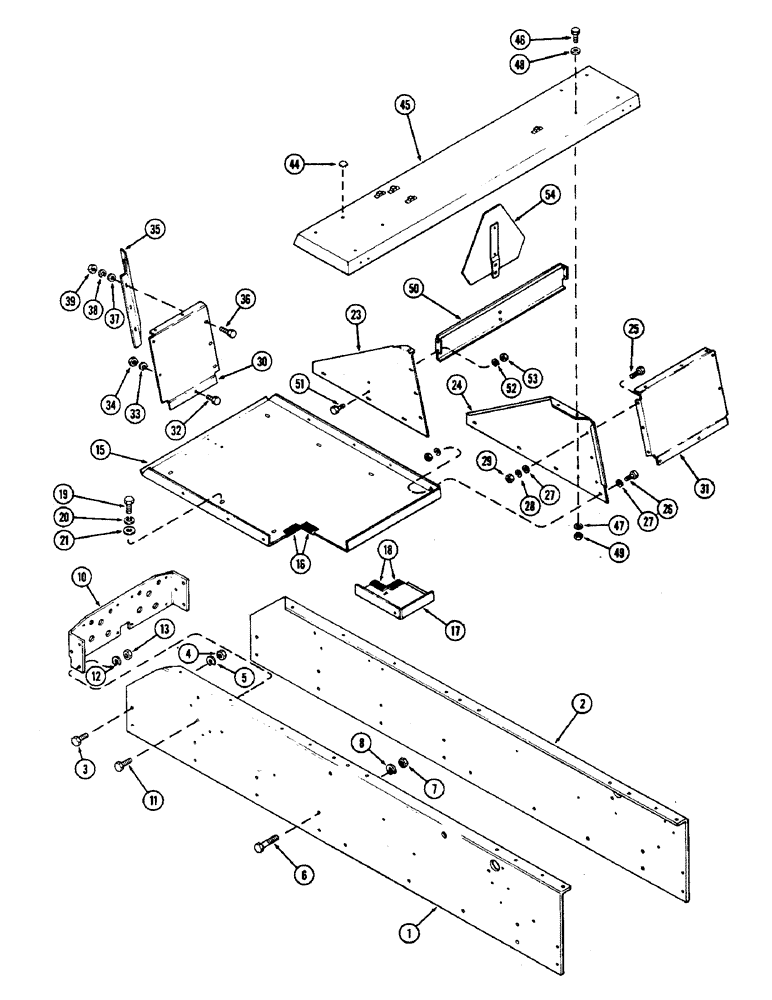

Запчасти Case IH 2870 (328) - PLATFORM AND SIDE PLATES, USED PRIOR TO P.I.N. 8826982 (09) - CHASSIS/ATTACHMENTS

1

A144068

PLATE - side, right hand

1шт.

2

A144069

PLATE - side, left hand

1шт.

3

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2 x 1-1/2" NC hex

4шт.

3

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- 1/2 x 2-1/2" NC hex

2шт.

4

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.

5

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

6

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

8шт.

6

113-621

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

8шт.

7

129-107

NUT,5/8"-11, G5

16шт.

8

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

10

A76612

SUPPORT - cross, side plate

1шт.

11

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

6шт.

12

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

13

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.

15

A144211

PLATFORM ASSEMBLY - rear, Includes: Ref. 16

1шт.

16

A144216

CHANNEL - rubber molding, 3-5/16" long (84.14 mm)

2шт.

17

A144213

CORNER ASSEMBLY - rear platform, Includes: Ref. 18

1шт.

18

A144216

CHANNEL - rubber molding, 3-5/16" long (84.14 mm)

1шт.

19

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

9шт.

20

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

9шт.

21

195-533

WASHER,1/2", SAE

- 1/2 x 1-1/16 x 3/32"

9шт.

23

A144070

SHEET

- right hand side, platform

1шт.

24

A144071

SHEET

- left hand side, platform

1шт.

25

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

7шт.

26

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(LH side only) Hex, 3/8"-16 x 3/4", G5, Full Thd

3шт.

27

195-525

WASHER,3/8", SAE

- 3/8 x 13/16 x 1/16"

10шт.

28

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

10шт.

29

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

10шт.

30

A144072

GUARD - right hand rear, platform

1шт.

31

A144073

GUARD - left hand rear, platform

1шт.

32

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

33

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

34

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

35

A144212

GUARD - rear, right hand corner

1шт.

36

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

37

195-525

WASHER,3/8", SAE

- 3/8 x 13/16 x 1/16"

12шт.

38

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

39

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

44

353-405

PLUG,Dome, .562" hole, Nylon

- button, 9/16" diameter (14.29 mm)

1шт.

45

A144217

CAP - rear, platform guard

1шт.

46

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

8шт.

47

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

48

195-525

WASHER,3/8", SAE

- 3/8 x 13/16 x 1/16"

8шт.

49

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

50

A76023

BRACKET - mounting, SMV emblem

1шт.

51

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

52

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

53

9635082

NUT,5/16" - 18, Gr 5

4шт.

54

A59450

WARNING SIGN

EMBLEM - SMV

1шт.
