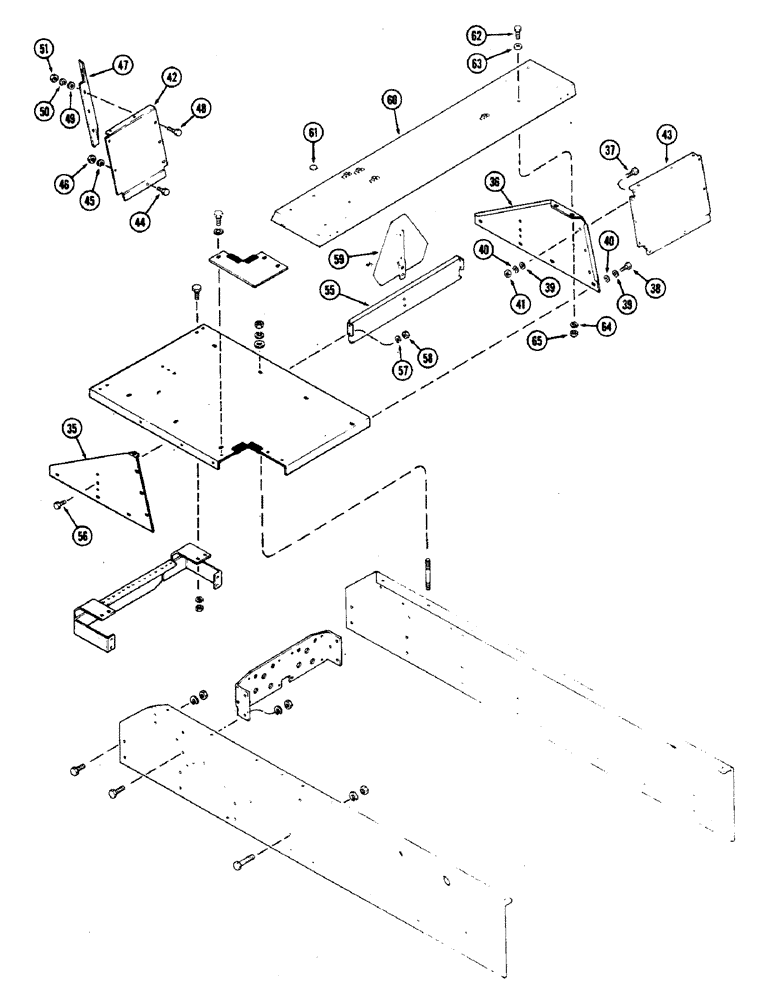

Запчасти Case IH 2870 (326) - PLATFORM AND SIDE PLATES, USED P.I.N. 8826982 AND AFTER (09) - CHASSIS/ATTACHMENTS

35

A149066

SHEET

- side, platform, right hand

1шт.

36

A149067

SHEET

- side, platform, left hand

1шт.

37

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

7шт.

38

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(LH side only) Hex, 3/8"-16 x 3/4", G5, Full Thd

3шт.

39

195-525

WASHER,3/8", SAE

- 3/8 x 13/16 x 1/16"

10шт.

40

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

10шт.

41

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

42

A144072

GUARD - platform, right hand rear

1шт.

43

A144073

GUARD - platform, left hand rear

1шт.

44

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

45

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

46

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

47

A144212

GUARD - rear, right hand corner

1шт.

48

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

49

195-525

WASHER,3/8", SAE

- 3/8 x 13/16 x 1/16"

12шт.

50

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

51

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

55

A76023

BRACKET - mounting, SMV emblem

1шт.

56

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

57

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

58

9635082

NUT,5/16" - 18, Gr 5

4шт.

59

A59450

WARNING SIGN

EMBLEM - SMV

1шт.

60

A144217

CAP - rear, platform guard

1шт.

61

353-405

PLUG,Dome, .562" hole, Nylon

- button, 9/16" diameter (14.29 mm)

1шт.

62

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

8шт.

63

195-525

WASHER,3/8", SAE

- 3/8 x 13/16 x 1/16"

8шт.

64

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

65

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.
