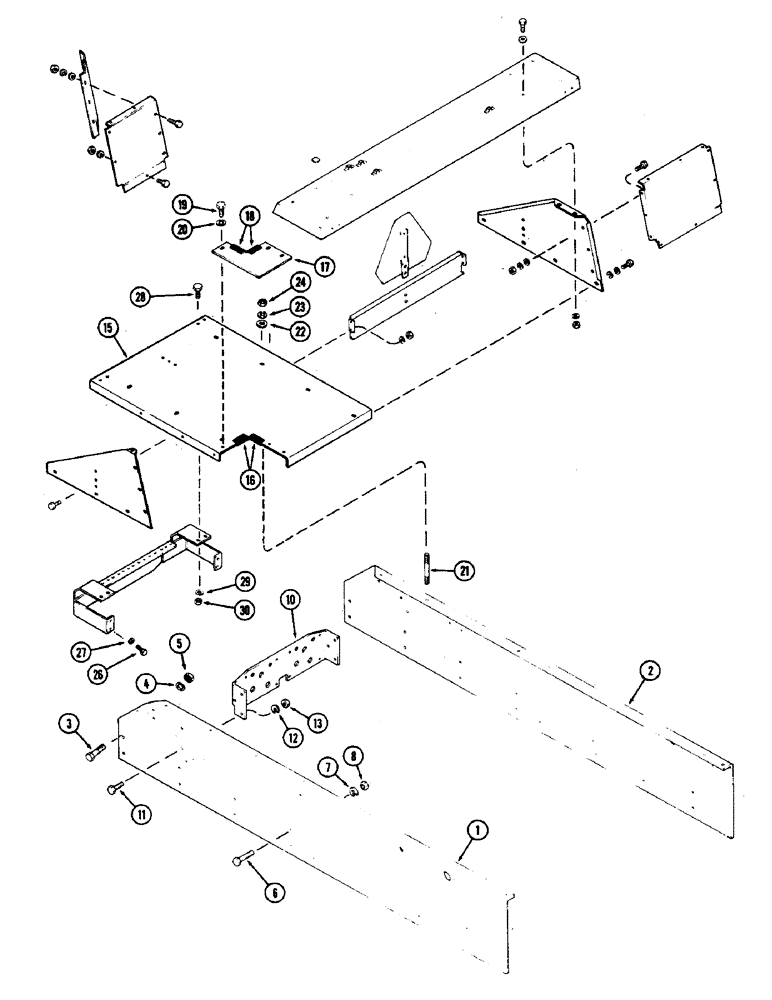

Запчасти Case IH 2870 (324) - PLATFORM AND SIDE PLATES, USED P.I.N. 8826982 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

A147625

PLATE - side, right hand

1шт.

2

A147626

PLATE - side, left hand

1шт.

3

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2 x 1-1/2" NC hex

4шт.

3

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- 1/2 x 2-1/2" NC hex

2шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.

6

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

8шт.

6

113-621

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

8шт.

7

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

8

129-107

NUT,5/8"-11, G5

16шт.

10

A76612

SUPPORT - cross, side plate

1шт.

11

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

6шт.

12

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

13

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.

15

A149065

PLATFORM ASSEMBLY - rear, Includes: Ref. 16

1шт.

16

A144216

CHANNEL - rubber molding, 3-5/16" long (84.14 mm)

2шт.

17

A147655

CORNER ASSEMBLY - platform, Includes: Ref. 18

1шт.

18

A144216

CHANNEL - rubber molding, 3-5/16" long (84.14 mm)

2шт.

19

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

21

A147585

STUD

- 1/2" NC x 3-5/8"

6шт.

22

195-533

WASHER,1/2", SAE

- 1/2 x 1-1/16 x 3/32 (12.7 x 27 x 2.38 mm)

6шт.

23

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

24

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.

25

A149026

COVER - rear, coupling mounting

1шт.

26

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

27

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

28

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

29

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

30

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.
