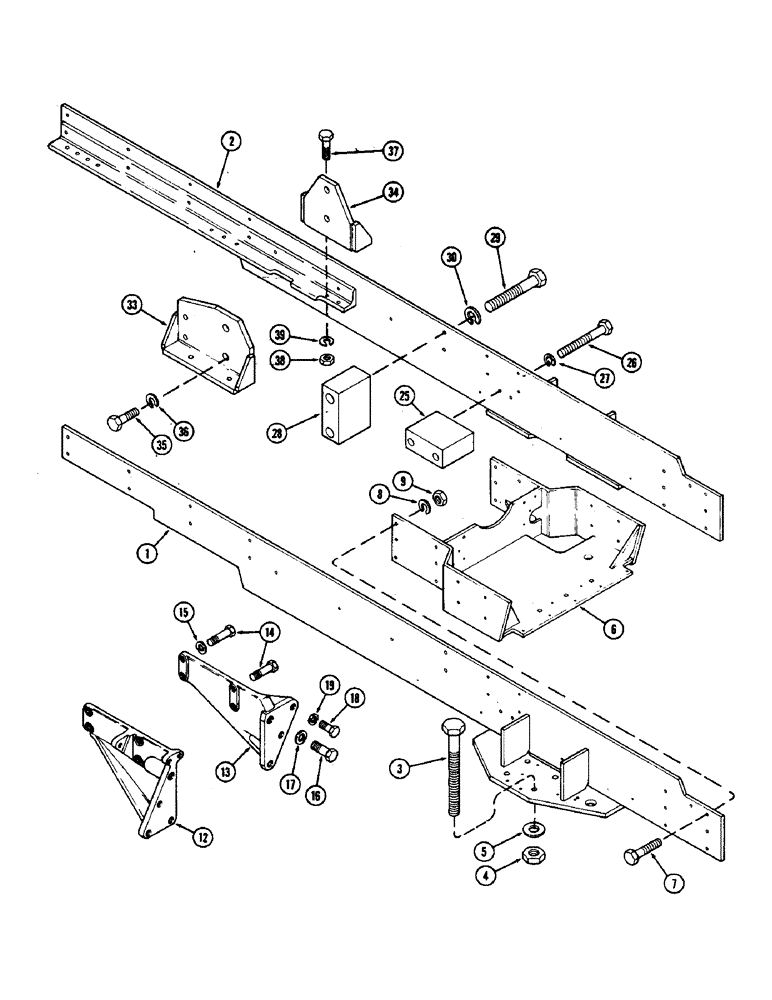

Запчасти Case IH 2870 (322) - CHASSIS SILLS (09) - CHASSIS/ATTACHMENTS

1

A144063

SILL - right hand chassis

1шт.

2

A144066

SILL - left hand chassis

1шт.

3

28-18152

BOLT,Hex, 1-1/8" - 12 x 9-1/2", Gr 8

- 1-1/8 x 9-1/2" NF hex, Grade 8

8шт.

4

131-189

LOCK NUT,1 1/8"-12, GB

NUT - 1-1/8" NF hex, grade 8

8шт.

5

A152201

WASHER

- mounting bolt, 1-3/16 x 2-1/2 x 3/16"

8шт.

6

A149185

FRAME

EXTENSION - front, chassis (Replaces A148152)

1шт.

7

113-620

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- 5/8 x 2-1/4" NC hex

10шт.

7

13-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

- 5/8 x 2-1/2" NC hex

2шт.

8

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

9

129-107

NUT,5/8"-11, G5

12шт.

12

A140414

SUPPORT

- right hand, engine mounting

1шт.

13

A148155

SUPPORT

- left hand, engine mounting

1шт.

14

813-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

- 12 x 1.75 x 35 mm hex (Engine to support) (Replaces 513-806)

8шт.

15

92-8

LOCK WASHER,1/2"

8шт.

16

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

2шт.

17

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

18

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

6шт.

19

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

25

A136981

BUSHING

SPACER - mounting, transmission front

2шт.

26

13-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- 5/8 x 5-1/2" NC hex

4шт.

27

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

28

A136980

BUSHING

SPACER - mounting, transmission center

2шт.

29

26-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 8

- 3/4 x 6" NC hex

4шт.

30

12-12

WASHER - 3/4" lock

4шт.

33

A136965

BRACKET

- right hand support, transmission, rear

1шт.

34

A136982

BRACKET - left hand support, transmission, rear

1шт.

35

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

4шт.

36

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

37

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

4шт.

38

25-1010

NUT,5/8"-11, G5

4шт.

39

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.
