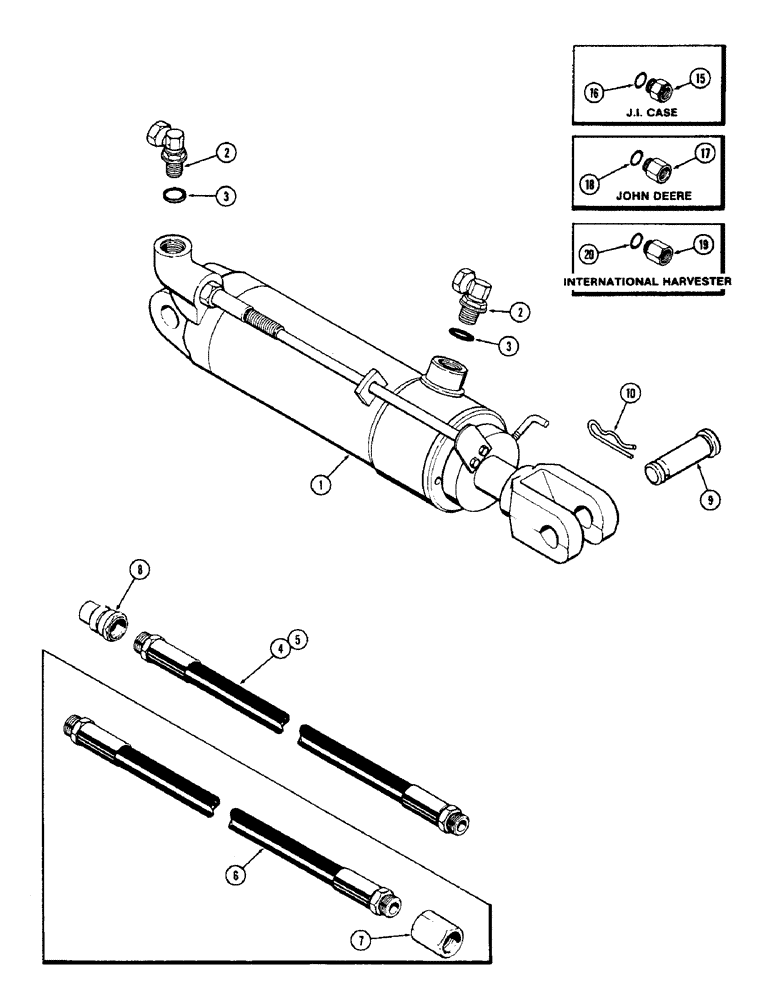

Запчасти Case IH 2870 (316) - REMOTE CYLINDER ATTACHMENTS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - remote (See figure 318)

1шт.

2

218-5201

90 ELBOW,90 Degree, 7/8"-14 O-Ring x 1/2" NPSM Fem

ASSEMBLY - adapter, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 15/16 x 3/32" (19.05 x 23.81 x 2.38 mm)

1шт.

4

A135006

HYDRAULIC HOSE,0.50" ID x 106.00", SAE 100R1 per SAE 100 R1

0.50" ID x 106.00", SAE 100R1 per SAE 100 R1

1шт.

4

A135007

HYDRAULIC HOSE,0.50" ID x 118.00", SAE 100R1 per SAE 100 R1

0.50" ID x 118.00", SAE 100R1 per SAE 100 R1

1шт.

4

A135109

HYDRAULIC HOSE,1/2" ID x 31" L, SAE 100R1

0.50" ID x , SAE 100R1 31.00"

1шт.

5

A135110

ADAPTER

- hose (1/2", Serial Range: PT-7/8"-14)

1шт.

6

REF

INSTRUCTION

COUPLING ASSEMBLY - male section (See figure 298)

1шт.

7

A27347

PIN

- cylinder anchor

2шт.

8

A29054

HAIR PIN COTTER

- internal hair

2шт.

12

A135687

ADAPTER

ASSEMBLY - hose to coupling (J.I. Case hoses) (7/8"-14 male x 7/8"-18 female), hydraulic, Includes: Ref. 13

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 15/16 x 3/32" (19.05 x 23.81 x 2.38 mm), hydraulic hose adapters

1шт.

14

A135688

ADAPTER

ASSEMBLY - hose to coupling (John Deere hoses) (7/8"-14 male x 3/4"-16 female), hydraulic, Includes: Ref. 15

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 15/16 x 3/32" (19.05 x 23.81 x 2.38 mm), hydraulic hose adapters

1шт.

16

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER ASSEMBLY - hose to coupling (International Harvester hoses) (7/8"-14 male x 1/2" PT female), hydraulic, Incl. Ref 17

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 15/16 x 3/32" (19.05 x 23.81 x 2.38 mm), hydraulic hose adapters

1шт.
