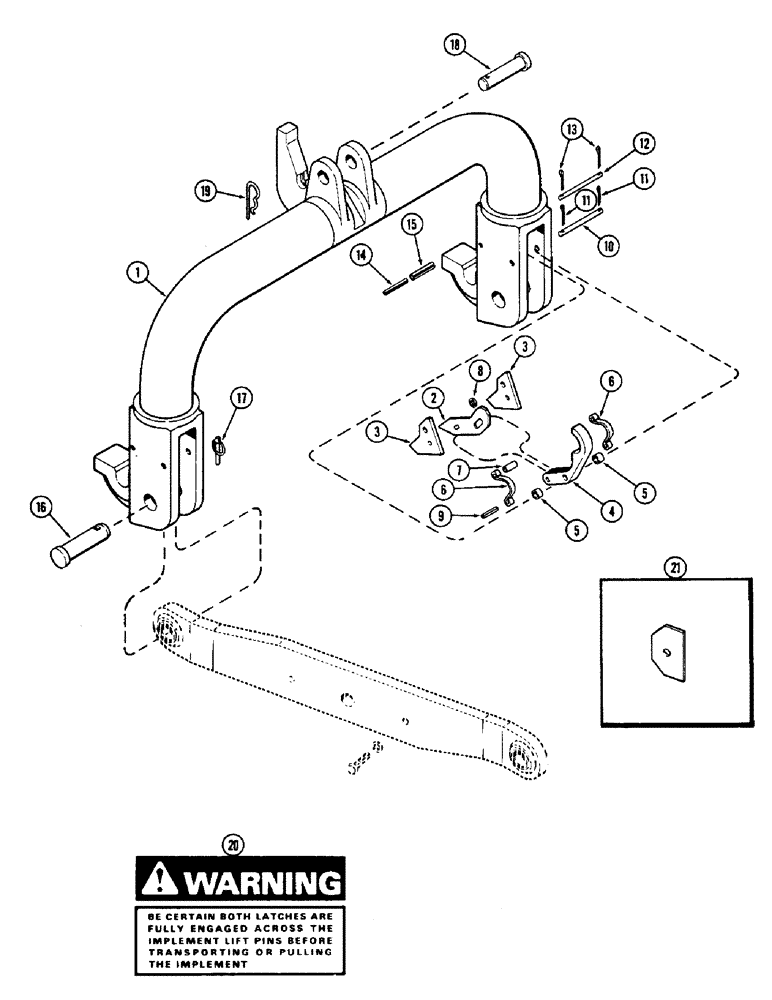

Запчасти Case IH 2870 (310) - QUICK HITCH COUPLER (09) - CHASSIS/ATTACHMENTS

A67166

ATTACHMENT

- coupler (Machinery item) (Replaces T87847), Includes: Ref. 1 - 21

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - hitch coupler (Order A67166)

1шт.

2

L10088

PLATE

ASSEMBLY - actuator release

2шт.

3

L10177

PLATE

- implement lock

4шт.

4

L10175

HANDLE

- release

2шт.

5

T30946

BUSHING

SPACER - handle, 1/2 x 3/4 x 1/2" (12.7 x 19.05 x 12.7 mm)

4шт.

6

L10263

SPRING

- actuator

4шт.

7

L10264

BUSHING

SPACER - actuator, 3/8 x 1/2 x 1" (9.53 x 12.7 x 25.4 mm)

2шт.

8

A29701

BUSHING

SPACER - release activator, 1/2 x 5/8 x 1/4" (12.7 x 15.88 x 6.35 mm)

2шт.

9

138-176

LOCK PIN,3/8" x 1 3/4", Slotted

Pin, (9.53 x 44.45 mm) 3/8" x 1 3/4", Slotted

2шт.

10

L10262

PIN

- pivot, 1/2 x 4-11/16" (12.7 x 119.06 mm)

2шт.

11

132-48

COTTER PIN,1/8" x 1"

PIN - cotter, 1/8 x 1-1/8" (3.18 x 28.58 mm)

4шт.

12

L10261

PIN

- spring anchor, 3/8 x 4-11/16" (9.53 x 119.06 mm)

2шт.

13

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4" (2.38 x 19.05 mm)

4шт.

14

138-163

LOCK PIN,5/16" x 2 1/2", Slotted

PIN, (7.94 x 63.5 mm) 5/16" x 2 1/2", Slotted

2шт.

15

138-208

LOCK PIN,1/2" x 2 1/2", Slotted

PIN, (12.7 x 63.5 mm) 1/2" x 2 1/2", Slotted

2шт.

16

A75028

PIN,36.45mm OD x 138mm L

- lower hitch, 1-3/8 x 5" (34.93 x 127 mm)

2шт.

17

A64204

PIN

- klik

2шт.

18

A56401

PIN

- swivel, upper hitch 1-1/4 x 4-1/2" (31.75 x 114.3 mm)

1шт.

19

A56393

PIN

- internal hair

1шт.

20

321-3339

DECAL

- warning

2шт.

21

A64331

BUSHING

SPACER - sway block

4шт.
