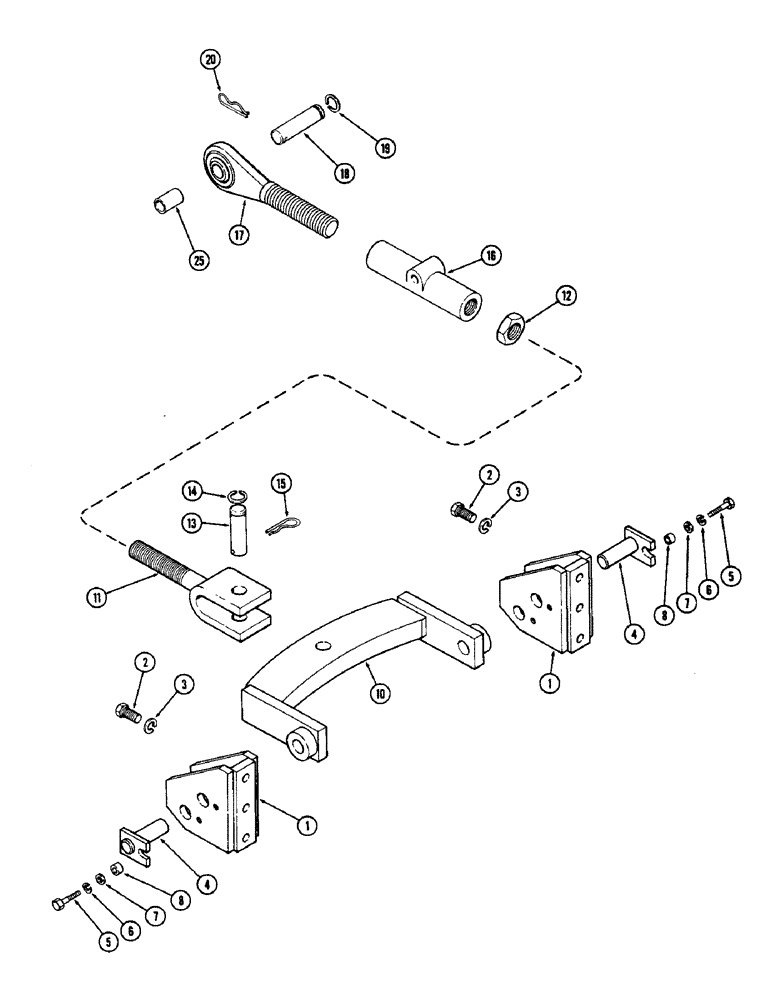

Запчасти Case IH 2870 (308) - THREE POINT HITCH TURNBUCKLE (09) - CHASSIS/ATTACHMENTS

1

A146714

BRACKET

- pivot, turnbuckle mounting

2шт.

2

113-713

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

6шт.

3

122-27

WASHER - 3/4" lock

6шт.

4

A138905

PIN

- pivot, mounting plate

2шт.

5

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

7

L30674

WASHER

- spacer, 1/2 x 7/8 x 1/8" (12.7 x 22.23 x 3.18 mm)

2шт.

8

A148908

SPACER

- pivot pin, 1/2 x 3/4 x 7/16" (12.7 x 19.05 x 11.11 mm)

2шт.

10

A148269

PLATE

- turnbuckle mounting

1шт.

11

A138907

CLEVIS

- turnbuckle (Right hand thread)

1шт.

12

129-174

JAM NUT,Hex, 1 1/2" - 12, Gr 5

NUT - 1-1/2" NF hex, jam

1шт.

13

A76283

PIN

- clevis to plate, 1-1/4 x 4-1/4" (31.75 x 107.95 mm)

1шт.

14

17406

RING

- snap

1шт.

15

A56393

PIN

- internal hair

1шт.

16

A75964

BELT TENSIONER

TURNBUCKLE - adjustable

1шт.

17

A141051

ROD

- third point (Left hand thread)

1шт.

18

A76285

PIN

- third point, 1-1/4" x 4-7/8" (31.75 x 123.83 mm)

1шт.

19

17406

RING

- snap

1шт.

20

A56393

PIN

- internal hair

1шт.

25

L10462

BUSHING

- hitch pin, Category II, 1 x 1-1/4 x 2" (25.4 x 31.75 x 50.8 mm)

1шт.
