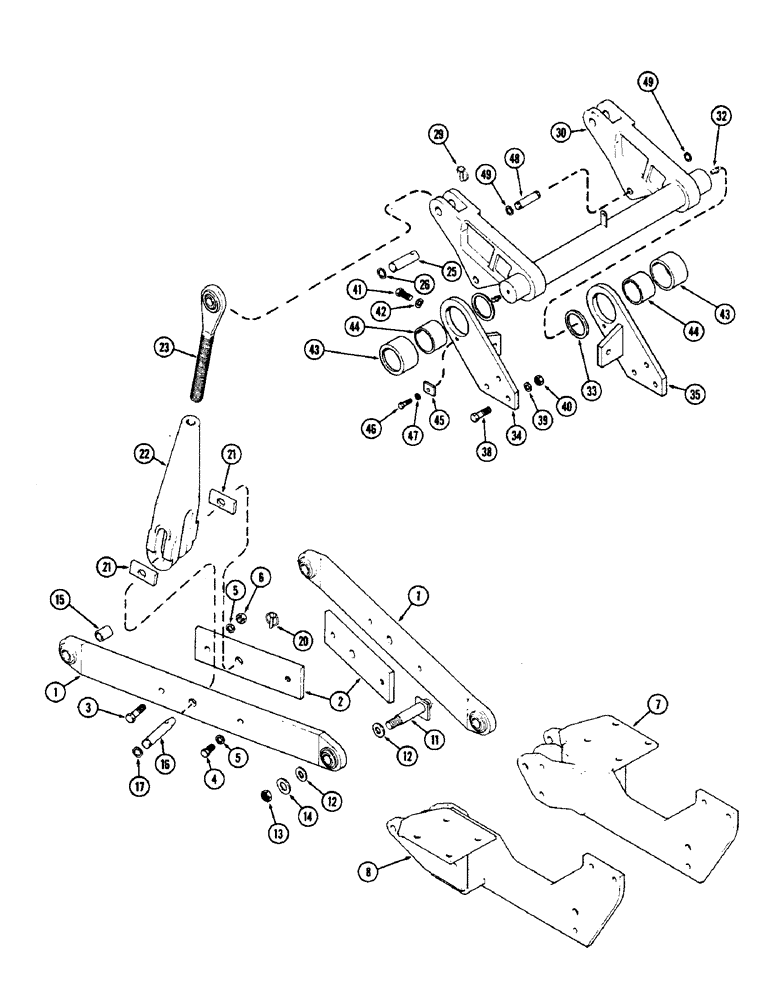

Запчасти Case IH 2870 (306) - ROCKSHAFT, DRAFT ARM AND LIFT LINK (09) - CHASSIS/ATTACHMENTS

1

A142852

ARM

- draft

2шт.

2

A142854

NO LONGER SERVICED

STIFFENER - draft arm

2шт.

3

113-730

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- 3/4 x 2-3/4" NC hex

2шт.

4

113-713

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

2шт.

5

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

6

129-108

NUT,3/4"-10, G5

2шт.

7

REF

INSTRUCTION

BRACE - drawbar, left hand (See figure 312)

1шт.

8

REF

INSTRUCTION

BRACE - drawbar, right hand (See figure 312)

1шт.

11

A148142

PIN

- pivot, draft arm

2шт.

12

L10007

WASHER

- spacer, 1-1/2 x 1-3/4 x 3/16" (38.1 x 44.45 x 4.76 mm)

4шт.

13

131-487

LOCK NUT,1 1/4"-18

NUT - 1-1/4" NF hex, ESNA

4шт.

14

D24516

WASHER

- nut, 1-9/32 x 2-1/4 x 1/4" (32.54 x 57.15 x 6.35 mm)

2шт.

15

L10463

BUSHING

- draft arm, Category II

2шт.

16

A76286

PIN,31.6mm OD x 193.04mm L

- lower clevis, lift link

2шт.

17

17406

RING

- snap

2шт.

20

A64204

PIN

RING - klik

2шт.

21

A63515

PLATE

- stop, lower clevis

4шт.

22

A75969

LINK

CLEVIS - lower, lift link

2шт.

23

A141049

ROD

- lift link

2шт.

25

A76284

PIN

- upper, lift link

2шт.

26

17406

RING

- snap

2шт.

27

A30338

PIN

- klik

2шт.

30

A76771

ROCKER

ROCKSHAFT - hitch

1шт.

32

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 1/8" PT - 45 degree

2шт.

33

A32804

WASHER

- spacer, 3-9/32 x 4-1/4 x 1/8" (83.34 x 107.95 x 3.18 mm)

1шт.

34

A75396

SUPPORT

- right hand bearing, rockshaft

1шт.

35

A75397

SUPPORT

- left hand bearing, rockshaft

1шт.

38

12-1248

GEAR

BOLT - 3/4 x 3" NF hex

6шт.

39

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

6шт.

40

131-186

LOCK NUT,3/4"-16, GB

NUT - 3/4" NF ESNA

6шт.

41

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

2шт.

42

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- 3/4 x 1-3/8 x 5/32" (19.05 x 34.93 x 3.97 mm)

2шт.

43

A75399

HOUSING

ASSEMBLY - rockshaft bearing, Includes: Ref. 44

2шт.

44

A75401

BUSHING

- rockshaft, 3-1/4 x 3-3/4 x 2-13/32" (82.55 x 95.25 x 61.12 mm)

1шт.

45

A75402

KEY

- retaining, bearing

2шт.

46

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

47

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

48

A76282

PIN

- hydraulic lift cylinder to rockshaft arm

2шт.

49

A12667

RING

- retaining, cylinder pin

4шт.
