Запчасти Case IH 2870 (304) - LIFT CYLINDER, 4 INCH DIAMETER (101.6 MM) X 9-7/8 INCH STROKE (250.83 MM) (08) - HYDRAULICS

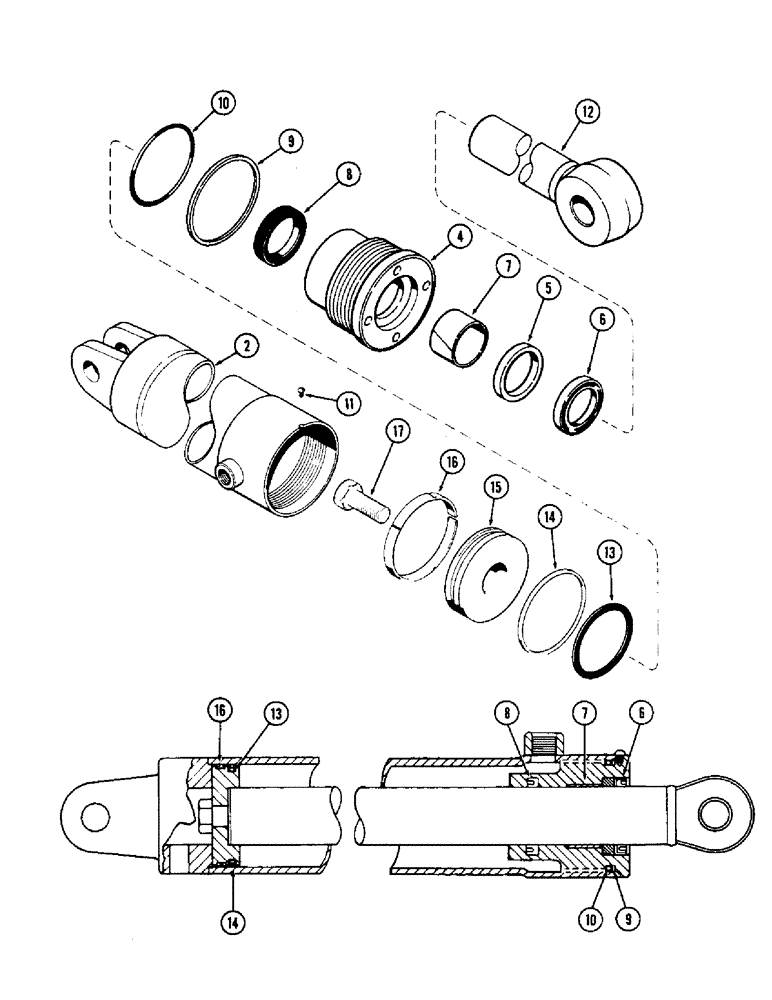

Схема запчастей Case IH 2870 - (304) - LIFT CYLINDER, 4 INCH DIAMETER (101.6 MM) X 9-7/8 INCH STROKE (250.83 MM) (08) - HYDRAULICS
16
9
7
6
17
13
5
8
11
12
4
14
2
10
15

Артикул

Название

Примечание

Количество

G33943

CYLINDER

ASSEMBLY - 3 point hitch (Stamped G33943 on gland), Includes: Ref. 2 - 17

1шт.

2

G33957

TUBE,18.11" L

ASSEMBLY - cylinder body

1шт.

G34773

GLAND

ASSEMBLY - (Hand stamp for identification), Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND

1шт.

5

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

6

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer, 1-1/2 x 2 x 5/16" (38.1 x 50.8 x 7.94 mm)

1шт.

Part of Cylinder Repair Seal Kit P/N G33968

1шт.

7

G34302

BEARING

- center

1шт.

Part of Cylinder Repair Seal Kit P/N G33968

1шт.

8

D36969

CUP

SEAL - piston rod, 1-1/2 x 2 x 7/16" (38.1 x 50.8 x 11.11 mm)

1шт.

Part of Cylinder Repair Seal Kit P/N G33968

1шт.

9

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

- Gland O-Ring

1шт.

Part of Cylinder Repair Seal Kit P/N G33968

1шт.

10

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- 4 x 4-1/4 x 1/8" (101.6 x 107.95 x 3.18 mm)

1шт.

Part of Cylinder Repair Seal Kit P/N G33968

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock, #8-32 x 1/4" self tapping

1шт.

12

G33961

ROD

- piston, 1-1/2" diameter (38.1 mm)

1шт.

13

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

- 3-1/2 x 3-3/4 x 1/8" (88.9 x 95.25 x 3.18 mm)

1шт.

Part of Cylinder Repair Seal Kit P/N G33968

1шт.

14

G31928

RING

- piston seal (Teflon)

1шт.

Part of Cylinder Repair Seal Kit P/N G33968

1шт.

15

G33774

PISTON

- cylinder

1шт.

16

G31927

RING

- wear, piston (Nylon)

1шт.

Part of Cylinder Repair Seal Kit P/N G33968

1шт.

17

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

Piston Hex, 3/4-16 x 2", G8, Full Thd

1шт.

G33968

REPAIR KIT

SEAL KIT - cylinder repair, Includes Refs. 6, 7, 8, 9, 10, 13, 14 and 16

1шт.

Выбрано товаров: 26
