(302) - HITCH HYDRAULIC CIRCUITRY

Запчасти Case IH 2870 (302) - HITCH HYDRAULIC CIRCUITRY (08) - HYDRAULICS

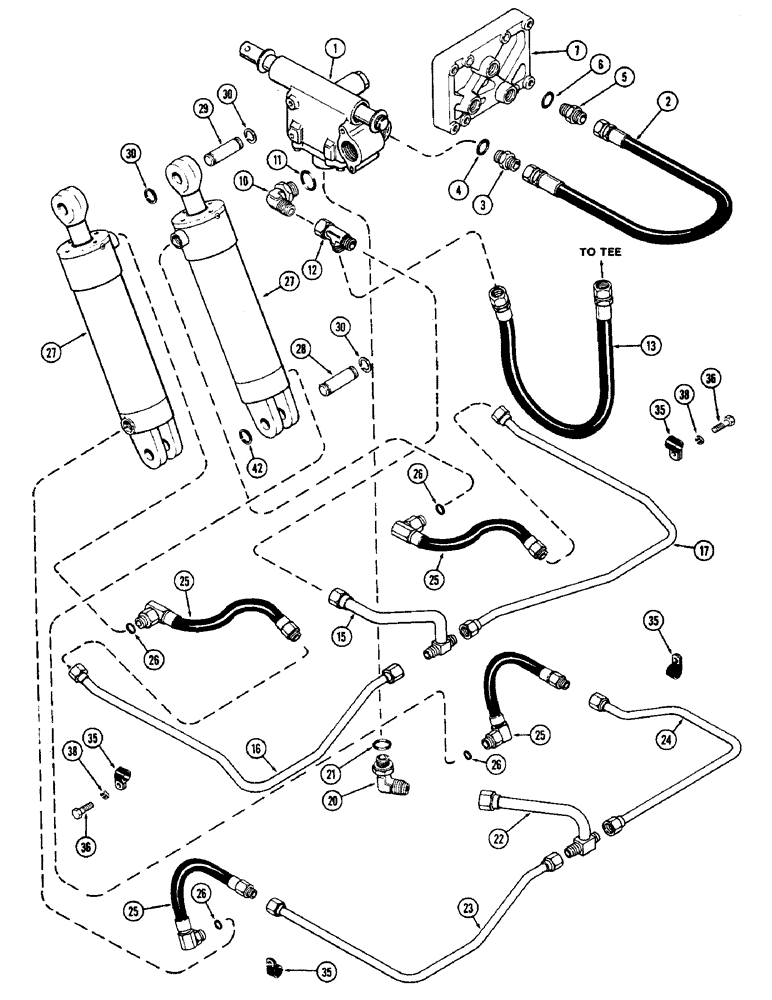

Схема запчастей Case IH 2870 - (302) - HITCH HYDRAULIC CIRCUITRY (08) - HYDRAULICS
30
10
27
38
5
35
25
20
25
30
13
15
4
28
26
24
2
30
17
25
36
23
25
35
22
26
11
35
26
38
16
35
27
1
29
26
4
21
7
6
36
3
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE ASSEMBLY - depth control (See figure 320)

1шт.

2

A140575

HOSE

Remote Valve to Depth Control Valve

1шт.

3

218-5048

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-3/16" - 12 Male ORB

CONNECTOR ASSEMBLY - hose to valve, Includes: Ref. 4

1шт.

4

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1 x 1-1/4 x 1/8" (25.4 x 31.75 x 3.18 mm)

1шт.

5

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY - hose to manifold, Incl. Ref. 6

1шт.

6

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1 x 1-1/4 x 1/8" (25.4 x 31.75 x 3.18 mm)

1шт.

7

REF

INSTRUCTION

MANIFOLD - remote hydraulic valve (See figure 278)

1шт.

10

518-5118

ELBOW ASSEMBLY - 90 degree adjustable, Includes: Ref. 11

1шт.

11

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-3/16 x 1-7/16 x 1/8" (30.6 x 36.51 x 3.18 mm)

1шт.

12

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

13

A140575

HOSE

Depth Control Valve to Return Tee

1шт.

15

A142188

TUBE - return, Serial Range: line-valve

1шт.

16

A142191

TUBE - return, right hand

1шт.

17

A142192

TUBE - return, left hand

1шт.

20

218-5109

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male JIC x 1-3/16" - 12 Male ORB

ASSEMBLY - 90 degree adjustable, Includes: Ref. 21

1шт.

21

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1 x 1-1/4 x 1/8" (25.4 x 31.75 x 3.18 mm)

1шт.

22

A142187

TUBE - pressure, Serial Range: line-valve

1шт.

23

A142189

TUBE - pressure, right hand

1шт.

24

A142190

TUBE - pressure, left hand

1шт.

25

A75438

HOSE

- cylinder, pressure and return, 16-7/16" long (417.51 mm)

4шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 15/16 x 3/32" (19.05 x 23.81 x 2.38 mm)

4шт.

27

REF

INSTRUCTION

CYLINDER ASSEMBLY - hydraulic lift (See figure 304)

2шт.

28

A76281

PIN

- lower, lift cylinder, 1 x 3-11/32" (25.4 x 84.93 mm)

2шт.

29

A76282

PIN

- upper, lift cylinder, 2 x 3-27/32" (25.4 x 97.63 mm)

2шт.

30

A12667

RING

- retaining cylinder pin

8шт.

35

NLS

NO LONGER SERVICED

TUBE

4шт.

36

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

38

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
