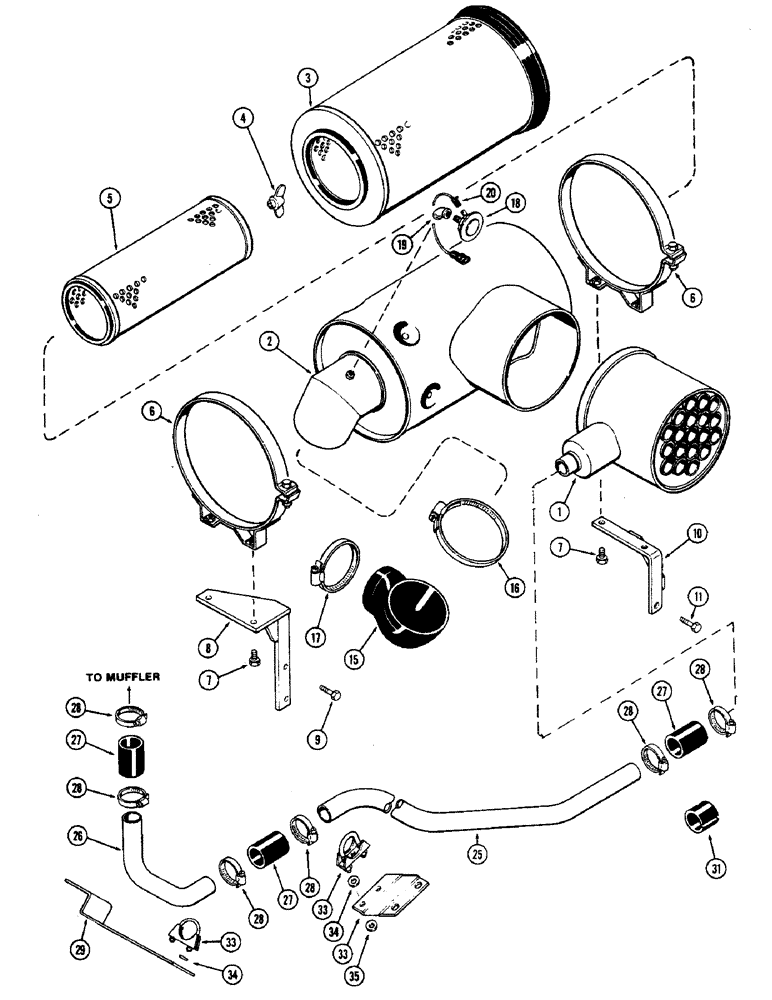

Запчасти Case IH 2870 (010) - AIR INDUCTION SYSTEM, 674 CUBIC INCH DIESEL ENGINE (02) - ENGINE

1

A142579

CLEANER

PRE-CLEANER ASSEMBLY - (Includes clamp)

1шт.

A166721

SEAL

pre cleaner

1шт.

A146326

CLEANER

AIR CLEANER ASSEMBLY, Includes: Ref. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

BODY

1шт.

3

A45694

AIR CLEANER

ELEMENT ASSEMBLY - outer, Includes: Ref. 4

1шт.

The wingnut and star shape retainer do not come with this outer element any longer. Use wing nut 47143 and retainer 1347879C1 for Ref 3 & wing nut F91761 for A45695.

1шт.

4

F91761

WING NUT

- wing, element retaining

1шт.

5

A45695

AIR CLEANER

ELEMENT - inner

1шт.

6

A138724

CLAMP

ASSEMBLY - mounting

2шт.

7

113-298

BOLT,Locking, 3/8" - 16 x 3/4", Gr 8, Full Thd

- clamp to bracket, 3/8 x 3/4" NC hex, nylock

4шт.

8

A138725

BRACKET

- mounting, air, Serial Range: cleaner-head

1шт.

9

813-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

- 10 x 1.5 x 40 MM, hex head (Replaces 513-708)

2шт.

10

A138730

BRACKET

- mounting, air, Serial Range: cleaner-manifold

1шт.

11

813-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

- 10 x 1.5 x 30 MM, hex head (Replaces 513-706)

1шт.

15

A146324

HOSE

- connector, air, Serial Range: cleaner-turbocharger

1шт.

16

214-272

HOSE CLAMP,#84, 4.88" - 5.75", Type F Worm

CLAMP - hose, 4-7/8" to 5-3/4" (123.83 to 146.05 mm) (At air cleaner)

1шт.

17

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - hose, 3-9/16" to 4-1/2" (90.49 to 114.3 mm) (At turbocharger)

1шт.

A161060

KIT

SWITCH KIT - sender, air restriction (Replaces A137280), Includes: Ref. 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

SWITCH

1шт.

19

221-1365

ELBOW,45 Degree, 1/8" NPT

- 45 degree pipe (Used with 2870 tractor)

1шт.

19

221-1401

ELBOW,45º, 1/8"-27, NPT

- 45 degree street (Not used this application)

1шт.

20

A161048

ELECTRICAL WIRE

WIRE - jumper, 6" long (152.4 mm)

1шт.

25

A152024

TUBE

- aspirator (At pre-cleaner)

1шт.

26

A148146

TUBE

- aspirator (At muffler)

1шт.

27

A29928

HOSE,1.50" ID x 5.50", SAE 20R2 CLASS R OR SAE 20R4 CLASS-S

RADIATOR HOSE, , Coupling, Aspirator Tube (Replaces A11887) 1.50" ID x 5.50", SAE 20R2 CLASS R OR SAE 20R4 CLASS-S

3шт.

28

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

(33.34 to 57.15 mm), aspirator tube #28, 1.31/2.25 Type F Worm

6шт.

29

A148210

SUPPORT

- aspirator tube

1шт.

32

A152023

BRACKET

- aspirator tube support

1шт.

33

A152446

CLAMP

ASSEMBLY - aspirator tube

2шт.

34

195-521

WASHER,5/16", SAE

- 5/16 x 11/16 x 1/16" (7.94 x 17.46 x 1.59 mm), aspirator tube

4шт.

35

195-522

WASHER,5/16"

- 3/8 x 3/4 x 1/16" (9.53 x 19.05 x 1.59 mm), aspirator tube

4шт.
