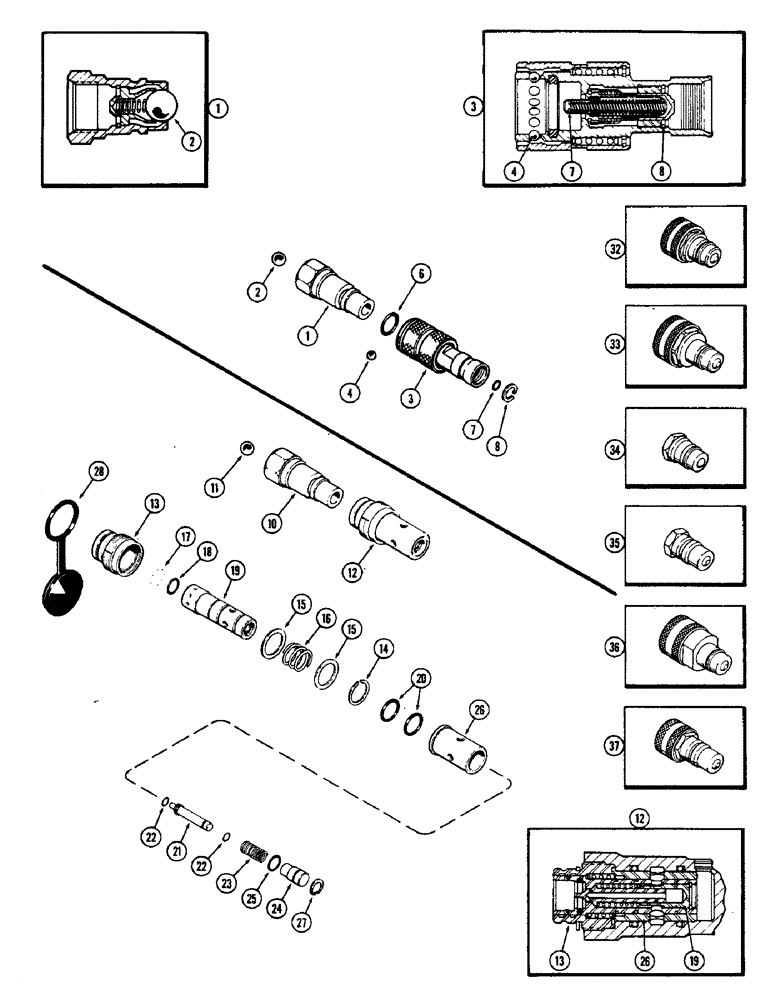

Запчасти Case IH 2870 (298) - HYDRAULIC COUPLINGS, USED P.I.N. 8826982 AND AFTER (08) - HYDRAULICS

1

A147889

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - male half, 7/8"-14 internal threads (Replaces A66816), Includes: Ref. 2

1шт.

2

211-316

BALL,17/32" Dia

- coupling, meter (13.49 mm) 17/32" Dia

1шт.

3

A147888

BREAKER POINTS

COUPLING ASSEMBLY - female half, Includes: Ref. 4 - 8

1шт.

4

211-355

BALL

- coupling, 3/16" diameter (4.76 mm)

10шт.

A47220

GASKET KIT

REPAIR KIT - coupling, Includes: Ref. 6 - 8

1шт.

6

A47221

SEALING RING,20.22mm ID x 27.28mm OD x 3.53mm Thk

- body

1шт.

7

A47222

SEAL

- poppet

1шт.

8

A45603

RING, LOCKING

RING - snap, poppet retaining

1шт.

10

A147889

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - male half, 7/8"-14 internal threads (Replaces A66816), Includes: Ref. 11, Serial Range: -8826878

1шт.

11

211-316

BALL,17/32" Dia

- coupling, meter (13.49 mm) 17/32" Dia, Serial Range: -8826878

1шт.

12

A149136

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - female half (Replaces A141845), Includes: Ref. 13 - 37, Serial Range: -8826878

1шт.

13

A135280

SLEEVE

- coupling, Serial Range: -8826878

1шт.

14

A140169

SNAP RING,#106, 1.000", Ext

RING - snap, Serial Range: -8826878

1шт.

15

A140163

WASHER

- spring, 1-3/32 x 1-5/16 x 1/16" (27.78 x 33.34 x 1.59 mm), Serial Range: -8826878

2шт.

16

A141287

SPRING

- body centering, 1-3/8" free length (34.92 mm), Serial Range: -8826878

1шт.

17

211-5

BALL,3/16" Dia

- meter (4.76 mm) 3/16" Dia, Serial Range: -8826878

8шт.

18

A140067

O-RING,0.796" ID x 1.074" OD x 0.139"

- body, inner, 13/16 x 1-1/16 x 1/8" (20.64 x 27 x 3.18 mm), Serial Range: -8826878

1шт.

19

A140167

HOUSING

BODY - coupling, Serial Range: -8826878

1шт.

20

A62239

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

- body, outer, 15/16 x 1-1/16 x 1/16" (23.81 x 27 x 1.59 mm), Serial Range: -8826878

2шт.

21

A140164

PISTON

- coupling, Serial Range: -8826878

1шт.

22

A138385

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

- piston, 5/16 x 7/16 x 1/16" (7.94 x 11.11 x 1.59 mm), Serial Range: -8826878

2шт.

23

A11324

SPRING

- piston, 1-3/16" free length (30.16 mm), Serial Range: -8826878

1шт.

24

A140166

PLUG

- pressure release, Serial Range: -8826878

1шт.

25

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

- plug, 5/8 x 3/4 x 1/16" (15.88 x 19.05 x 1.59 mm), Serial Range: -8826878

1шт.

26

A149082

COUPLING, BREAK AWAY

SLEEVE - adapter, (Replaces A140165), Serial Range: -8826878

1шт.

27

G46150

SNAP RING,0.75", Int, #75

Ring, Snap, 0.75", Int, #75, Serial Range: -8826878

1шт.

28

A135213

PLUG

- dust, Serial Range: -8826878

1шт.

32

A160879

COUPLING, BREAK AWAY

ADAPTER ASSEMBLY - male half (For John Deere male half to J.I. Case female (A147888) half), hydraulic coupling

1шт.

33

A160880

COUPLING, BREAK AWAY

ADAPTER ASSEMBLY - male half (For IHC male half to J.I. Case female (A147888) half), hydraulic coupling

1шт.

34

A160937

COUPLING, BREAK AWAY

ADAPTER ASSEMBLY - male half, 1/2"-14 PT internal threads, hydraulic coupling

1шт.

35

A160884

COUPLING, BREAK AWAY

ADAPTER ASSEMBLY - male half, 1/2"-14 PT internal threads, hydraulic coupling

1шт.

36

A160885

QUICK MALE COUPLING

ADAPTER ASSEMBLY - male half (For J.I. Case male half to J.I. Case female (A147888) half), hydraulic coupling

1шт.

37

A160888

COUPLING

ADAPTER ASSEMBLY - male half (For J.I. Case male half to J.I. Case female (A28542) half), hydraulic coupling

1шт.
