Запчасти Case IH 2870 (292) - REMOTE CONTROL VALVE, WITHOUT RELIEF VALVE, USED P.I.N. 8826982 AND AFTER (08) - HYDRAULICS

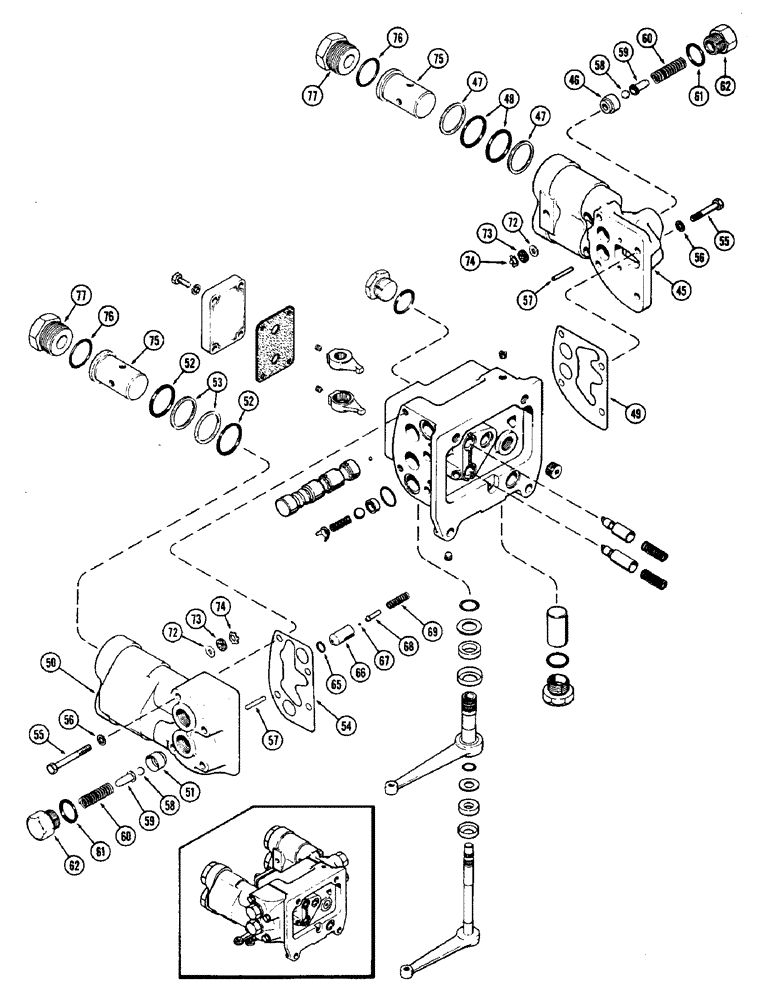

Схема запчастей Case IH 2870 - (292) - REMOTE CONTROL VALVE, WITHOUT RELIEF VALVE, USED P.I.N. 8826982 AND AFTER (08) - HYDRAULICS
53
76
50
62
72
54
65
68
62
59
46
77
7
75
7
57
74
72
69
51
48
67
75
74
59
55
61
66
55
58
52
49
73
47
60
47
56
57
52
45
58
77
60
56
61

Артикул

Название

Примечание

Количество

A147433

VALVE ASSEMBLY - , Includes: Ref. 45 - 77 and Ref. 2 - 41 on Figure 290

1шт.

45

A139951

HEAD

ASSEMBLY - left head, Includes: Ref. 46 - 48

1шт.

46

NSS

NOT SOLD SEPARAT

SEAT - valve head

2шт.

47

A76898

RING

- back-up, 1-1/2 x 1-3/4 x 1/16" (38.1 x 44.45 x 1.59 mm)

4шт.

48

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

- 1-1/2 x 1-3/4 x 1/8" (38.1 x 44.45 x 3.18 mm)

4шт.

49

A143303

GASKET

- valve head, left hand

1шт.

Part of Remote Valve Repair Kit P/N A43086

1шт.

50

A139949

HEAD

ASSEMBLY - right hand, Includes: Ref. 51 - 53

1шт.

51

NSS

NOT SOLD SEPARAT

SEAT - valve head

1шт.

52

A76898

RING

- back-up 1-1/2 x 1-3/4 x 1/16" (38.1 x 44.45 x 1.59 mm)

4шт.

53

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

- 1-1/2 x 1-3/4 x 1/8" (38.1 x 44.45 x 3.18 mm)

4шт.

54

A143304

GASKET

- valve head, right hand

1шт.

Part of Remote Valve Repair Kit P/N A43086

1шт.

55

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- head to body, 3/8 x 2-3/4" NC hex

8шт.

56

92-6

LOCK WASHER,3/8"

8шт.

57

A57559

SPOOL

PIN - return ball check

4шт.

58

211-28

BALL,13/32" Dia

- return, meter (10.32 mm) 13/32" Dia

4шт.

59

A76895

GUIDE

- return ball check spring

4шт.

60

A76896

SPRING

- check, return ball, 2" free length (50.8 mm)

4шт.

61

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- head fitting, 3/4 x 15/16 x 1/8" (19.05 x 23.81 x 3.18 mm)

4шт.

Part of Remote Valve Repair Kit P/N A43086

1шт.

62

A76894

FITTING

- valve head

4шт.

65

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- thermal valve seat, 3/8 x 9/16 x 3/32" (9.53 x 14.29 x 2.38 mm)

2шт.

Part of Remote Valve Repair Kit P/N A43086

1шт.

66

A137335

SEAT

- thermal valve (Right hand head)

2шт.

67

211-3

BALL,1/8" Dia

- thermal valve, meter (3.18 mm) 1/8" Dia

2шт.

68

A137594

GUIDE

- thermal valve ball

2шт.

69

A57396

SPRING

- thermal valve, 1-1/8" free length (28.58 mm)

2шт.

72

195-516

WASHER,#12

- 1/4 x 9/16 x 1/16" (6.35 x 14.29 x 1.59 mm)

4шт.

73

A76892

SEAL

- quick coupler

4шт.

74

A76893

SNAP RING,0.625", Int, #62

Ring, Snap, , seal 0.625", Int, #62

4шт.

75

A147286

INSERT

- head

4шт.

76

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

- adapter, 1-3/8 x 1-5/8 x 1/8" (34.93 x 41.28 x 3.18 mm)

4шт.

77

A147561

ADAPTER

- valve head

4шт.

A43086

SEAL

REPAIR KIT - remote valve, Includes: Ref. 49, 54, 61, 65 on Figure 290 and 292

1шт.

Выбрано товаров: 35
