Запчасти Case IH 2870 (290) - REMOTE CONTROL VALVE, WITHOUT RELIEF VALVE, USED P.I.N. 8826982 AND AFTER (08) - HYDRAULICS

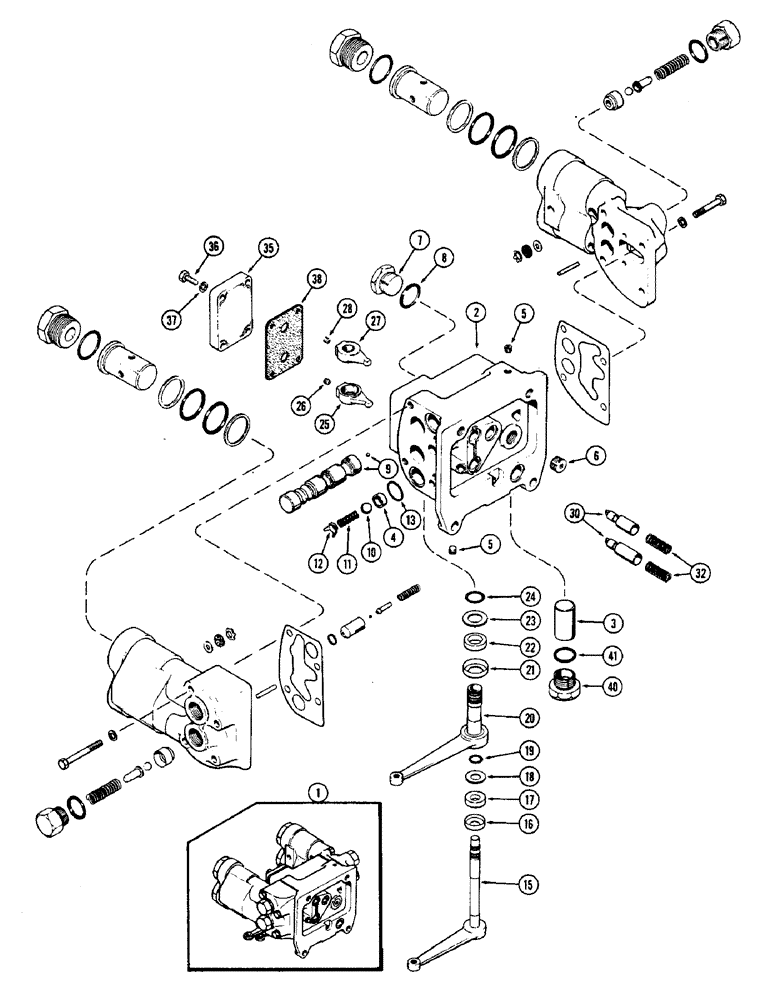

Схема запчастей Case IH 2870 - (290) - REMOTE CONTROL VALVE, WITHOUT RELIEF VALVE, USED P.I.N. 8826982 AND AFTER (08) - HYDRAULICS
1
8
18
25
17
20
11
26
40
19
4
9
32
15
28
7
35
5
3
12
38
13
2
27
10
6
5
37
30
36
16
21
41
22
23
24

Артикул

Название

Примечание

Количество

1

A147433

VALVE ASSEMBLY - hydraulic, remote control, Includes: Ref. 2 - 41 and Ref. 45 - 77 on Figure 292

1шт.

2

A141380

HOUSING

BODY ASSEMBLY, Includes: Ref. 3 - 8

1шт.

3

A63764

PLUG

- relief valve port

1шт.

4

A139799

SEAT

- ball check

4шт.

5

221-849

PLUG,Hex Soc, 1/8"-27

- 1/8" PT, socket head

3шт.

6

221-843

PLUG,Hex Soc, 3/8"-18

- 3/8" PT, socket head

1шт.

7

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Assy, Includes: Ref. 8 Hex Hd, 1 1/16"-12 ORB

1шт.

8

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 1-5/32 x 1/8" (23.1 x 29.37 x 3.18 mm) (See kit, figure 292)

1шт.

Part of Remote Valve Repair Kit P/N A43086

1шт.

9

A66469

SPOOL

ASSEMBLY

2шт.

10

211-15

BALL,5/8" Dia

- meter (15.88 mm) 5/8" Dia

4шт.

11

A27452

SPRING

- ball check, 1-1/8" free length (28.58 mm)

4шт.

12

A27364

GUIDE

- ball check spring

4шт.

13

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

- body, 15/16 x 1-1/8 x 3/32" (23.81 x 28.58 x 2.38 mm) (See kit, figure 292)

4шт.

Part of Remote Valve Repair Kit P/N A43086

1шт.

15

A57605

LEVER

- remote valve, lower

1шт.

16

A30875

RETAINER

- felt washer, 17/32" hole (13.49 mm) (See kit, figure 292)

1шт.

Part of Remote Valve Repair Kit P/N A43086

1шт.

17

A30853

WASHER

- felt, 1/2 x 15/16 x 1/4" (12.7 x 23.81 x 6.35 mm) (See kit, figure 292)

1шт.

Part of Remote Valve Repair Kit P/N A43086

1шт.

18

A27409

WASHER

- seal, 1/2 x 1 x 1/32" (12.7 x 25.4 x 0.79 mm) (See kit, figure 292)

1шт.

Part of Remote Valve Repair Kit P/N A43086

1шт.

19

A64836

O-RING,0.487" ID x 0.693" OD

- 1/2 x 11/16 x 3/32" (12.7 x 17.46 x 2.38) (See kit, figure 292)

1шт.

Part of Remote Valve Repair Kit P/N A43086

1шт.

20

A57604

LEVER

- remote valve, upper

1шт.

21

A30880

RETAINER

- felt washer, 3/4" hole (19.05 mm) (See kit, figure 292)

1шт.

Part of Remote Valve Repair Kit P/N A43086

1шт.

22

A30879

WASHER

- felt, 3/4 x 1-13/16 x 1/4" (19.05 x 46.04 x 6.35 mm) (See kit, figure 292)

1шт.

Part of Remote Valve Repair Kit P/N A43086

1шт.

23

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER - seal, 3/4 x 1-1/4 x 1/32" (19.05 x 31.75 x 0.79 mm) (See kit, figure 292)

1шт.

Part of Remote Valve Repair Kit P/N A43086

1шт.

24

A64837

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- 3/4 x 15/16 x 3/32" (19.05 x 23.81 x 2.38 mm) (See kit, figure 292)

1шт.

Part of Remote Valve Repair Kit P/N A43086

1шт.

25

A57546

ARM

ASSEMBLY - upper lever, Includes: Ref. 26

1шт.

26

178-875

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set, 1/4 x 1/4" NC, socket head, cup point

1шт.

27

A57547

ARM

ASSEMBLY - lower lever, Includes: Ref. 28

1шт.

28

178-875

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set, 1/4 x 1/4" NC, socket head, cup point

1шт.

30

A63765

PLUNGER

- valve spool

2шт.

32

A76886

SPRING

- plunger, 1-15/32" free length (37.31 mm)

2шт.

35

A66435

CAP

- body

1шт.

36

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Cap to body Hex, 1/4"-20 x 1", G5

4шт.

37

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

38

A76374

GASKET

- cap (See kit, figure 292)

1шт.

Part of Remote Valve Repair Kit P/N A43086

1шт.

40

A34392

PLUG

- pilot, relief valve hose

1шт.

41

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 15/16 x 1/8" (19.05 x 23.81 x 3.18 mm) (See kit, figure 292)

1шт.

Part of Remote Valve Repair Kit P/N A43086

1шт.
