Запчасти Case IH 2870 (288) - REMOTE CONTROL VALVE, WITH RELIEF VALVE, USED PRIOR TO P.I.N 8826982 (08) - HYDRAULICS

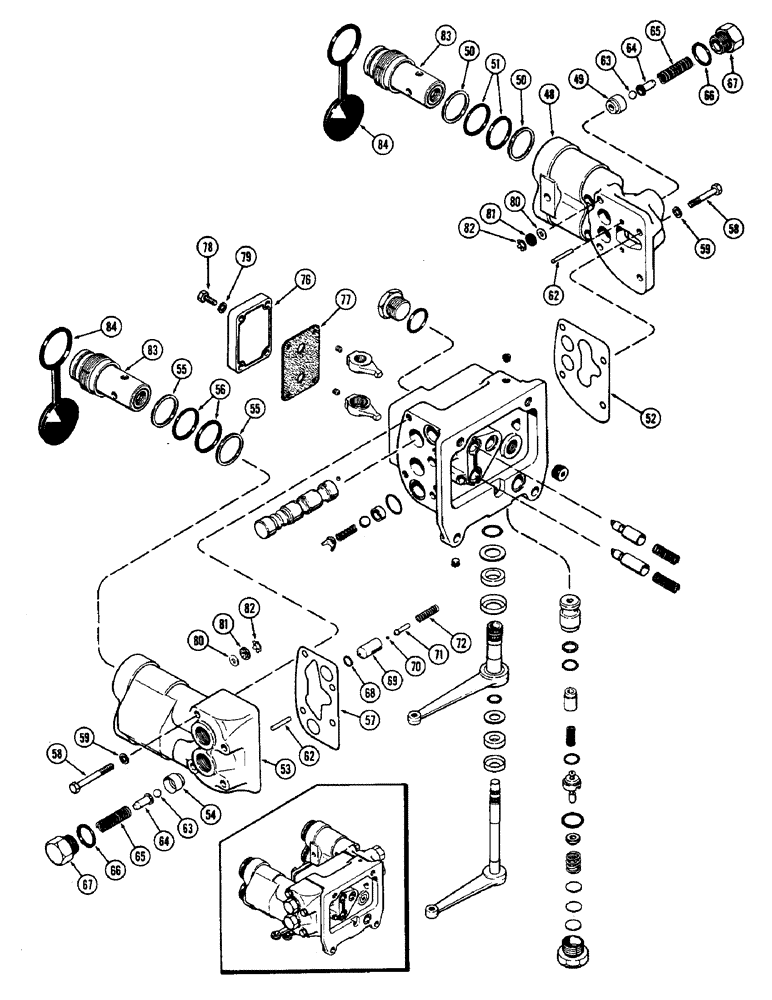

Схема запчастей Case IH 2870 - (288) - REMOTE CONTROL VALVE, WITH RELIEF VALVE, USED PRIOR TO P.I.N 8826982 (08) - HYDRAULICS
50
59
57
84
77
65
80
68
63
82
55
64
51
82
56
55
62
67
49
5
80
64
69
58
76
83
53
52
48
81
79
58
70
84
66
72
83
59
54
81
67
78
62
71
65
66
63

Артикул

Название

Примечание

Количество

A149137

VALVE

ASSEMBLY - , Includes: Ref. 48 - 84 and Ref. 2 - 44 on Figure 286

1шт.

48

A139951

HEAD

ASSEMBLY - left hand, Includes: Ref. 49 - 51

1шт.

49

NSS

NOT SOLD SEPARAT

SEAT - valve head

2шт.

50

A76898

RING

- back-up, 1/2 x 1-3/4 x 1/16" (38.1 x 44.45 x 1.59 mm)

4шт.

51

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

- 1-1/2 x 1-3/4 x 1/8" (38.1 x 44.45 x 3.18 mm)

4шт.

52

A143303

GASKET

- valve head, left hand

1шт.

Part of Remote Valve Repair Kit P/N A43086

1шт.

53

A139949

HEAD

ASSEMBLY - right hand, Includes: Ref. 54 - 56

1шт.

54

NSS

NOT SOLD SEPARAT

SEAT - valve head

2шт.

55

A76898

RING

- back-up, 1/2 x 1-3/4 x 1/16" (38.1 x 44.45 x 1.59 mm)

4шт.

56

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

- 1-1/2 x 1-3/4 x 1/8" (38.1 x 44.45 x 3.18 mm)

4шт.

57

A143304

GASKET

- valve head, right hand

1шт.

Part of Remote Valve Repair Kit P/N A43086

1шт.

58

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- head to body, 3/8 x 2-3/4" NC hex

8шт.

59

92-6

LOCK WASHER,3/8"

8шт.

62

A57559

SPOOL

PIN - return ball check

4шт.

63

211-28

BALL,13/32" Dia

- return, meter (10.32 mm) 13/32" Dia

4шт.

64

A76895

GUIDE

- return ball check spring

4шт.

65

A76896

SPRING

- check, return ball, 2" free length (50.8 mm)

4шт.

66

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- head fitting, 3/4 x 15/16 x 1/8" (19.05 x 23.81 x 3.18 mm)

4шт.

Part of Remote Valve Repair Kit P/N A43086

1шт.

67

A76894

FITTING

- valve head

4шт.

68

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- thermal valve seat, 3/8 x 9/16 x 3/32" (9.53 x 14.29 2.38 mm)

2шт.

Part of Remote Valve Repair Kit P/N A43086

1шт.

69

A137335

SEAT

- thermal valve (Right hand head)

2шт.

70

211-3

BALL,1/8" Dia

- thermal valve, meter (3.18 mm) 1/8" Dia

2шт.

71

A137594

GUIDE

- thermal valve ball

2шт.

72

A57396

SPRING

- thermal valve, 1-1/8" free length (28.58 mm)

2шт.

76

A66435

CAP

- body

1шт.

77

A76374

GASKET

- body cap

1шт.

Part of Remote Valve Repair Kit P/N P/N A43086

1шт.

78

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Cap to body Hex, 1/4"-20 x 1", G5

4шт.

79

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

80

195-516

WASHER,#12

- 1/4 x 9/16 x 1/16" (6.35 x 14.29 x 1.59 mm)

4шт.

81

A76892

SEAL

- quick coupler

4шт.

82

A76893

SNAP RING,0.625", Int, #62

Ring, Snap, , seal 0.625", Int, #62

4шт.

83

REF

INSTRUCTION

COUPLER ASSEMBLY - break-away (See figure 298)

4шт.

84

REF

INSTRUCTION

PLUG - dust (See figure 298)

4шт.

A43086

SEAL

REPAIR KIT - remote valve, Includes: Ref. 52, 57, 66, 68 and 77 on figure 286 and 288

1шт.

Выбрано товаров: 39
