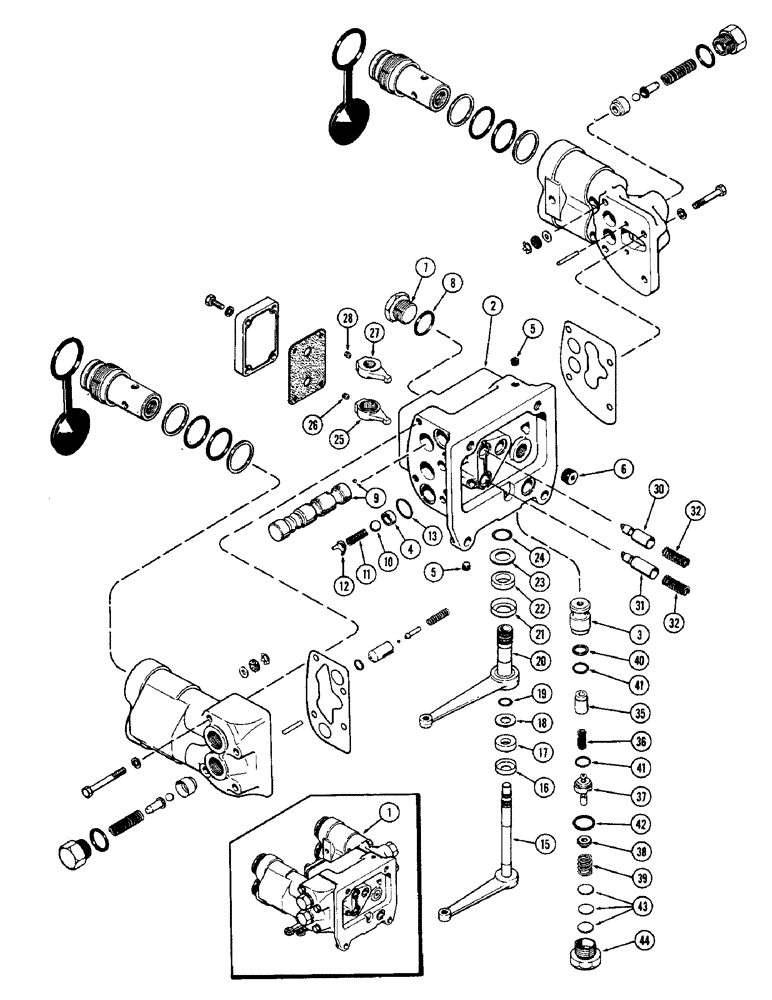

Запчасти Case IH 2870 (286) - REMOTE CONTROL VALVE, WITH RELIEF VALVE, USED PRIOR TO P.I.N 8826982 (08) - HYDRAULICS

1

A149137

VALVE

ASSEMBLY - hydraulic, remote control (Replaces A141843), Includes: Ref. 2 - 44 and Ref. 48 - 84 on Figure 288

1шт.

2

A141381

HOUSING

BODY ASSEMBLY, Includes: Ref. 3 - 8

1шт.

3

A57536

SLEEVE

- pilot relief

1шт.

4

A139799

SEAT

- ball check

4шт.

5

221-849

PLUG,Hex Soc, 1/8"-27

- 1/8" PT, socket head

3шт.

6

221-843

PLUG,Hex Soc, 3/8"-18

- 3/8" PT, socket head

1шт.

7

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Assy, Includes: Ref. 8 Hex Hd, 1 1/16"-12 ORB

1шт.

8

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 1-5/32 x 1/8" (23.8 x 29.4 x 3.18 mm) (See kit, figure 288)

1шт.

Part of Remote Valve Repair Kit P/N A43086

1шт.

9

A66469

SPOOL

ASSEMBLY

2шт.

10

211-15

BALL,5/8" Dia

- meter (15.88 mm) 5/8" Dia

4шт.

11

A27452

SPRING

- ball check, 1-1/8" free length (28.58 mm)

4шт.

12

A27364

GUIDE

- ball check spring

4шт.

13

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

- 15/16 x 1-1/8 x 3/32" (23.8 x 28.6 x 2.38 mm) see kit, figure 288

4шт.

Part of Remote Valve Repair Kit P/N A43086

1шт.

15

A57605

LEVER

- remote valve, lower

1шт.

16

A30875

RETAINER

- felt washer, 17/32" hole (13.49 mm) (See kit, figure 288)

1шт.

Part of Remote Valve Repair Kit P/N A43086

1шт.

17

A30853

WASHER

- 1/2 x 15/16 x 1/4" (12.7 x 23.8 x 6.35 mm) see kit, figure 288

1шт.

Part of Remote Valve Repair Kit P/N A43086

1шт.

18

A27409

WASHER

- seal, 1/2 x 1 x 1/32" (12.7 x 25.4 x 0.79 mm) (See kit, figure 288)

1шт.

Part of Remote Valve Repair Kit P/N A43086

1шт.

19

A64836

O-RING,0.487" ID x 0.693" OD

- 1/2 x 11/16 x 3/32" (12.7 x 17.46 x 2.38 mm) (See kit, figure 288)

1шт.

Part of Remote Valve Repair Kit P/N A43086

1шт.

20

A57604

LEVER

- remote valve, upper

1шт.

21

A30880

RETAINER

- felt washer, 3/4" hole (19.05 mm) (See kit, figure 288)

1шт.

Part of Remote Valve Repair Kit P/N A43086

1шт.

22

A30879

WASHER

- 3/4 x 1-13/16 x 1/4" (19.05 x 46.04 x 6.35 mm) See kit, figure 288

1шт.

Part of Remote Valve Repair Kit P/N A43086

1шт.

23

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER - 3/4 x 1-1/4 x 1/32" (19.05 x 31.8 x 0.79 mm) See kit, figure 288

1шт.

Part of Remote Valve Repair Kit P/N A43086

1шт.

24

A64837

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- 3/4 x 15/16 x 3/32" (19.05 x 23.81 x 2.38 mm) (See kit, figure 288)

1шт.

Part of Remote Valve Repair Kit P/N A43086

1шт.

25

A57546

ARM

ASSEMBLY - upper lever, Includes: Ref. 26

1шт.

26

178-875

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set, 1/4 x 1/4" NC, socket head, cup point

1шт.

27

A57547

ARM

ASSEMBLY - lower lever, Includes: Ref. 28

1шт.

28

178-875

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set, 1/4 x 1/4" NC, socket head, cup point

1шт.

30

A57555

PLUNGER

- upper (With hole)

1шт.

31

A57554

PLUNGER

- lower (Without hole)

1шт.

32

A76886

SPRING

- plunger, 1-15/32" free length (37.31 mm)

2шт.

35

A57553

PISTON

- pilot relief valve

1шт.

36

A34382

SPRING

- pilot relief valve (1" free length) (25.4 mm)

1шт.

37

A57556

PISTON

ASSEMBLY - pilot

1шт.

38

A57558

RETAINER

- pilot relief spring

1шт.

39

A34492

SPRING

- pilot relief, 23/32" free length (18.26 mm)

1шт.

A42888

KIT

PILOT RELIEF KIT, Includes: Ref. 40 - 42

1шт.

40

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

- back-up (See kit, figure 288)

1шт.

Part of Remote Valve Repair Kit P/N A43086

1шт.

41

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

- 5/8 x 3/4 x 1/16" (15.88 x 19.05 x 1.59 mm) (See kit, figure 288)

2шт.

Part of Remote Valve Repair Kit P/N A43086

1шт.

42

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 15/16 x 1/8" (19.05 x 23.81 x 3.18 mm) (See kit, figure 288)

1шт.

Part of Remote Valve Repair Kit P/N A43086

1шт.

43

A34694

SHIM,.0201" Thk

Pilot relief spring (0.52 mm) .0201" Thk

1шт.

Refer to tag on valve for shim data.

1шт.

43

A34817

SHIM,.0149" Thk

Pilot relief spring (0.38 mm) .0149" Thk

1шт.

Refer to tag on valve for shim data.

1шт.

43

A34390

SHIM,.0329" Thk

Pilot relief spring (0.83 mm) .0329" Thk

1шт.

Refer to tag on valve for shim data.

1шт.

43

A34849

SHIM,.0105" Thk

Pilot relief spring (0.26 mm) .0105" Thk

1шт.

Refer to tag on valve for shim data.

1шт.

44

A34392

PLUG

- pilot relief valve

1шт.
