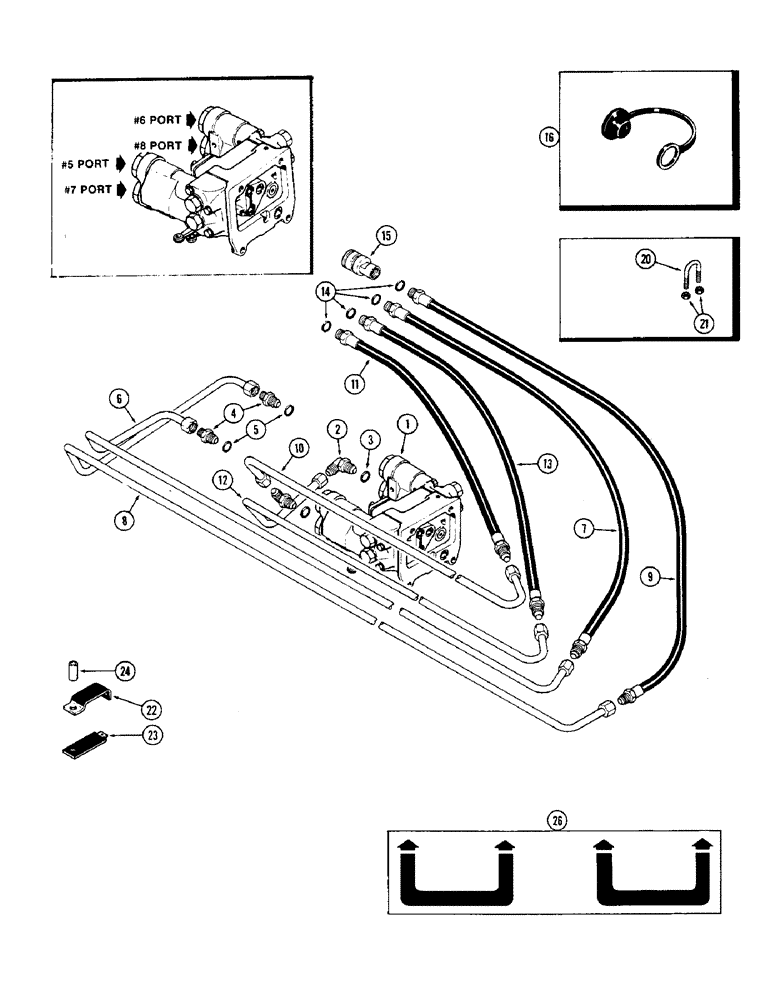

Запчасти Case IH 2870 (280) - REMOTE HYDRAULIC COUPLER CIRCUITRY, WITH TWIN DUAL CONTROL VALVE, USED P.I.N. 8826982 AND AFTER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - remote (See figure 282)

1шт.

2

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

ASSEMBLY - #7 and #8 valve ports, Incl. Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 15/16 x 3/32" (19.05 x 23.81 x 2.38 mm)

1шт.

4

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR ASSEMBLY - #5 and #6 valve ports, Includes: Ref. 5

2шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 15/16 x 3/32" (19.05 x 23.81 x 2.38 mm)

1шт.

6

A147408

TUBE

- #5 valve port

1шт.

7

A147455

HOSE,0.50" ID x 40.00", SAE 100R1

- #5 tube to coupling (Includes Ref. 14) 0.50" ID x 40.00", SAE 100R1

1шт.

8

A147453

LINKAGE YOKE

TUBE - #6 valve port

1шт.

9

A147454

HOSE,0.50" ID x 47.50", SAE 100R1

- #6 tube to coupling (Includes Ref. 14) 0.50" ID x 47.50", SAE 100R1

1шт.

10

A147452

TUBE

- #7 valve port

1шт.

11

A147456

HOSE,0.50" ID x 34.00", SAE 100R1

- #7 tube to coupling (Includes Ref. 14) 0.50" ID x 34.00", SAE 100R1

1шт.

12

A147417

TUBE

- #8 valve port

1шт.

13

A147457

HOSE

ASSEMBLY - #8 tube to coupling, 29" long (736.5 mm), Includes: Ref. 14

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 15/16 x 3/32" (19.05 x 23.81 x 2.38 mm)

1шт.

15

A147888

BREAKER POINTS

COUPLING ASSEMBLY - female half (See figure 298)

4шт.

16

A137135

PLUG

- coupling, dust (Black) (#5 and #6 hose)

2шт.

16

A137135

PLUG

- coupling, dust (White) (#7 and #8 hose)

2шт.

20

A66788

CLAMP

- remote coupler hold down (U-bolt)

4шт.

21

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

16шт.

22

A147584

CLAMP

- remote tubes (Upper)

2шт.

23

A147583

CLIP

CLAMP - remote tubes (Lower)

2шт.

24

A147284

SPACER - platform, 9/16 x 3/4 x 1-13/16" (14.29 x 19.05 x 46.04 mm)

1шт.

24

A147586

SPACER

- platform, 9/16 x 3/4 x 1-9/16" (14.29 x 19.05 x 39.69 mm)

1шт.

26

321-4653

DECAL

- remote coupling

1шт.
