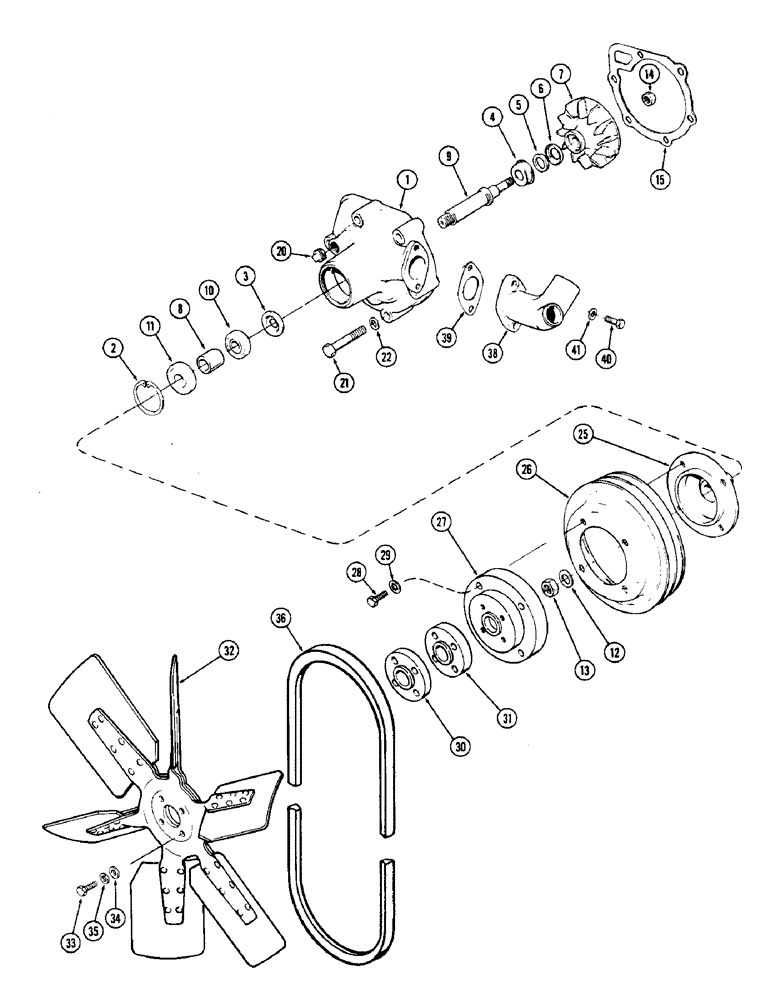

Запчасти Case IH 2870 (008) - WATER PUMP, FAN AND BELTS, 674 CUBIC INCH DIESEL ENGINE (02) - ENGINE

A46263

PUMP

WATER PUMP ASSEMBLY, Includes: Ref. 1 - 14

1шт.

A67540 Water Filter Kit

1шт.

1

A46264

HOUSING

BODY - pump

1шт.

2

A46042

RING

- snap, bearing

1шт.

Part of Pump Repair Kit P/N A46147

1шт.

3

A46271

GUARD

SHIELD - bearing

1шт.

Part of Pump Repair Kit P/N A46147

1шт.

4

A46267

SEALING RING

- carbon

1шт.

Part of Pump Repair Kit P/N A46147

1шт.

5

A46268

RING

- wear

1шт.

Part of Pump Repair Kit P/N A46147

1шт.

6

A46269

RING

- attaching, wear ring

1шт.

Part of Pump Repair Kit P/N A46147

1шт.

7

A46266

IMPELLER

1шт.

Part of Pump Repair Kit P/N A46147

1шт.

8

A46272

BUSHING

SPACER - shaft bearing

1шт.

A46148

KIT

SHAFT KIT, Includes: Ref. 9 - 11

1шт.

9

A46265

SHAFT

- impeller

1шт.

10

A46270

BALL BEARING

BEARING - inner

1шт.

11

A46273

BALL BEARING

BEARING - outer

1шт.

12

A46041

WASHER

- lock

1шт.

Part of Pump Repair Kit P/N A46147

1шт.

13

A46040

NUT

- front, impeller shaft

1шт.

14

A46274

NUT

- rear, Serial Range: impeller-shaft

1шт.

15

A46258

GASKET

- pump, Serial Range: body-head

1шт.

Part of Pump Repair Kit P/N A46147

1шт.

A46147

KIT

REPAIR KIT - pump, Includes: Ref. 2-7, 12 and 15

1шт.

20

A46259

PLUG

- water pump body

1шт.

21

513-812

BOLT

- 12 x 1.75 x 65 mm, hex head

6шт.

22

195-533

WASHER,1/2", SAE

- 17/32 x 1-1/16 x 3/32" (13.49 x 27 x 2.38 mm)

6шт.

25

A46260

HUB

- pump drive

1шт.

26

A46261

PULLEY

- pump drive (2 grooves)

1шт.

27

A144184

BUSHING

SPACER - fan

1шт.

28

814-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

- 12 x 1.75 x 40 mm hex head (Spacer to hub) (Replaces 513-2807)

1шт.

29

193-77

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

4шт.

30

A61283

BUSHING

SPACER - fan, 3/4" (19.05 mm)

1шт.

31

A61268

BUSHING

SPACER - fan, 1" (25.4 mm)

1шт.

32

A76744

FAN

- suction

1шт.

33

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

Fan to spacer Hex, 3/8"-16 x 2 3/4", G5

4шт.

34

195-104

WASHER,3/8"

- 7/16 x 1 x 1/16" (11.11 x 25.4 x 1.59 mm)

4шт.

35

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

36

A138001

SET OF BELTS,0.50" W x 62.00" L

BELT , Fan (Set of 2) 0.50" W x 62.00" L

1шт.

38

A46262

TUBE

- elbow, oil cooler

1шт.

39

A46359

GASKET

- tube to water pump (Replaces A45873)

1шт.

40

513-607

SCREW

BOLT - 8 x 1.25 x 30 MM, hex head

2шт.

41

195-103

WASHER,5/16"

- 3/8 x 7/8 x 1/16" (9.53 x 22.23 x 1.59 mm)

2шт.
