Запчасти Case IH 2870 (278) - REMOTE HYDRAULIC VALVE CIRCUITRY, WITH TWIN DUAL CONTROL VALVES (08) - HYDRAULICS

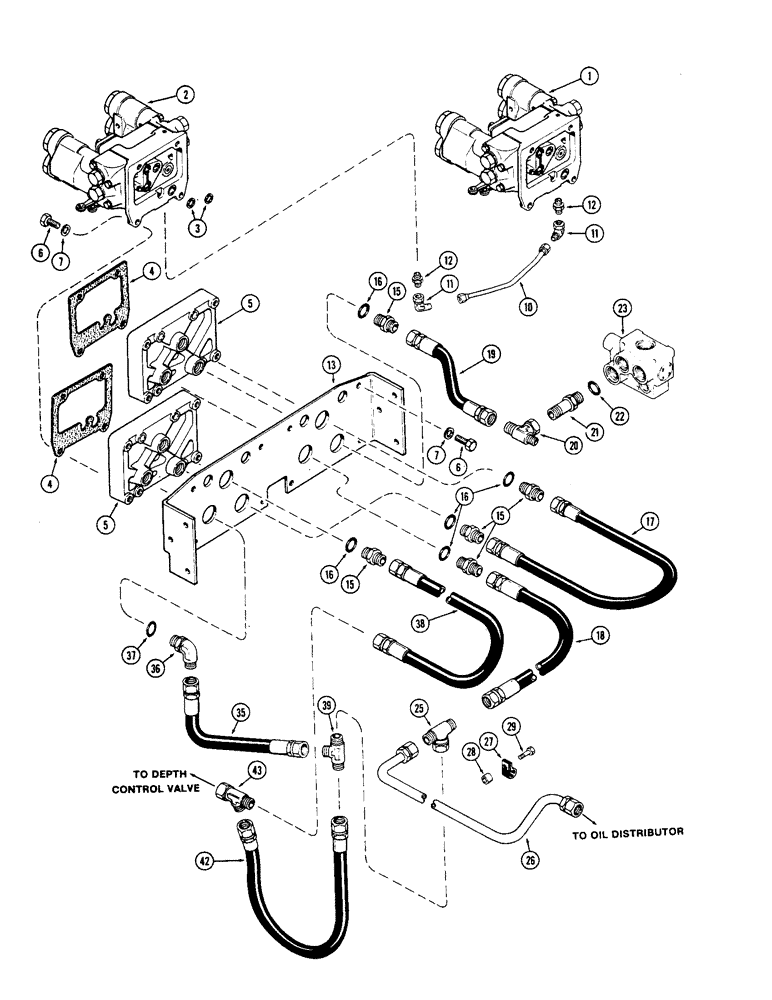

Схема запчастей Case IH 2870 - (278) - REMOTE HYDRAULIC VALVE CIRCUITRY, WITH TWIN DUAL CONTROL VALVES (08) - HYDRAULICS
12
23
7
28
15
27
20
17
16
10
13
12
15
5
37
16
4
26
36
16
19
4
11
15
7
21
5
25
38
19
1
35
6
43
22
3
29
39
42
11
2
6

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE ASSEMBLY - remote (No. 1 with relief valve) (See figure 282- 288)

1шт.

2

REF

INSTRUCTION

VALVE ASSEMBLY - remote (No. 2 without relief valve) (See figure 290-296)

1шт.

3

A32348

GASKET,16.54mm ID x 23.29mm OD x 3.5mm Thk

GASKET - port, Serial Range: valve-manifold

4шт.

4

A145407

GASKET

- valve, Serial Range: body-manifold

2шт.

5

A143889

MANIFOLD

- valve mounting

2шт.

6

113-822

BOLT,Hex, 7/8" - 9 x 2-3/4", Gr 5

- 1/2 x 1-3/8" NC hex

8шт.

7

92-8

LOCK WASHER,1/2"

8шт.

10

A144047

TUBE

- crossover, detent

1шт.

11

218-5229

ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/2"-20, 37 Degree Fem Sw

- tube

2шт.

12

218-442

HYD CONNECTOR,1/2" - 20 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR

2шт.

13

REF

INSTRUCTION

SUPPORT - hose (See figure 324)

1шт.

15

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY - hose to valve, Incl. Ref. 16

5шт.

16

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 1-5/32 x 1/8" (23.81 x 29.37 x 3.18 mm)

1шт.

17

A140575

HOSE

No. 1 to No. 2 Valve

1шт.

18

A140579

HOSE - no. 1 valve to return tee, 25" long (635 mm)

1шт.

19

A146581

HOSE,0.75" ID x 15.00", SAE 100R2

- No. 1 valve to regulator valve 0.75" ID x 15.00", SAE 100R2

1шт.

20

218-847

TEE - swivel

1шт.

21

218-5030

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY, Includes: Ref. 22

1шт.

22

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 1-5/32 x 1/8" (23.81 x 29.37 x 3.18 mm)

1шт.

23

REF

INSTRUCTION

VALVE ASSEMBLY - pressure regulator (See figure 266)

1шт.

25

218-837

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Br

- return

1шт.

26

A148298

TUBE - return oil to distributor tube

1шт.

27

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- tube

2шт.

28

A76093

BUSHING

SPACER - clamp, 13/32 x 3/4 x 1/2" (10.32 x 19.05 x 12.7 mm)

2шт.

29

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

35

A142894

HOSE

- no. 2 valve to return tee, 17" long (431.8 mm)

1шт.

36

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 37 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

37

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 1-5/32 x 1/8" (23.81 x 29.37 x 3.18 mm)

1шт.

38

A140575

HOSE

No. 2 Valve to Return or Depth Control

1шт.

39

218-596

TEE,1 1/16"-12 37 Degree

- return oil

1шт.

42

A140575

HOSE

Depth Control Valve

1шт.

43

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

Depth control valve 37º, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

Выбрано товаров: 32
