Запчасти Case IH 2870 (274) - REMOTE HYDRAULIC COUPLER CIRCUITRY, WITH SINGLE DUAL CONTROL VALVE, USED P.I.N. 8826982 AND AFTER (08) - HYDRAULICS

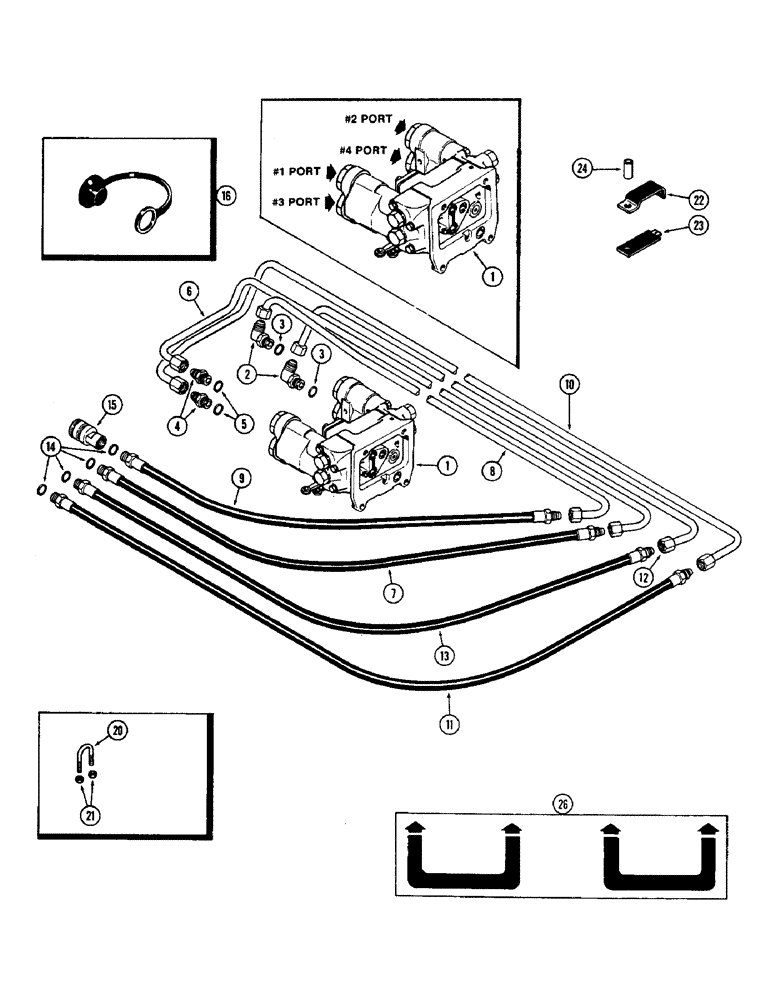

Схема запчастей Case IH 2870 - (274) - REMOTE HYDRAULIC COUPLER CIRCUITRY, WITH SINGLE DUAL CONTROL VALVE, USED P.I.N. 8826982 AND AFTER (08) - HYDRAULICS
9
14
20
2
10
21
12
15
1
3
7
23
13
16
22
6
1
24
11
8
3
5
4
26

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE ASSEMBLY - remote (See figure 282 - 296)

1шт.

2

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

ASSEMBLY - for #2 and #4 valve ports, Incl. Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 15/16 x 3/32" (19.05 x 23.81 x 2.38 mm)

1шт.

4

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR ASSEMBLY - for #1 and #3 valve ports, Includes: Ref. 5

2шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 15/16 x 3/32 (19.05 x 23.81 x 2.38 mm)

1шт.

6

A147464

TUBE

- #1 valve port

1шт.

7

A147456

HOSE,0.50" ID x 34.00", SAE 100R1

- #1 tube to coupling (Includes Ref. 14) 0.50" ID x 34.00", SAE 100R1

1шт.

8

A147458

TUBE

- #2 valve port

1шт.

9

A147457

HOSE

ASSEMBLY - #2 tube to coupling, 29" long (736.5 mm) (Includes: Ref. 14)

1шт.

10

A147461

TUBE

- #3 valve port

1шт.

11

A147454

HOSE,0.50" ID x 47.50", SAE 100R1

- #3 tube to coupling (Includes Ref. 14) 0.50" ID x 47.50", SAE 100R1

1шт.

12

A147459

TUBE - #4 valve port

1шт.

13

A147455

HOSE,0.50" ID x 40.00", SAE 100R1

- #4 tube to coupling, Includes Ref. 14 0.50" ID x 40.00", SAE 100R1

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 15/16 x 3/32" (19.05 x 23.81 x 2.38 mm)

1шт.

15

A147888

BREAKER POINTS

COUPLING ASSEMBLY - female half (See figure 298)

4шт.

16

A137135

PLUG

- coupling, dust (Black) (#1 and #2 hose)

2шт.

16

A137136

PLUG

- coupling, dust (White) (#3 and #4 hose)

2шт.

20

A66788

CLAMP

- remote coupler hold down (U-bolt)

4шт.

21

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

16шт.

22

A147584

CLAMP

- remote tubes (Upper)

2шт.

23

A147583

CLIP

CLAMP - remote tubes (Lower)

2шт.

24

A147284

SPACER - platform, 9/16 x 3/4 x 1-13/16" (14.29 x 19.05 x 46.04 mm)

1шт.

24

A147586

SPACER

- platform, 9/16 x 3/4 x 1-9/16" (14.29 x 19.05 x 39.69 mm)

1шт.

26

321-4623

DECAL

- remote coupling

1шт.
