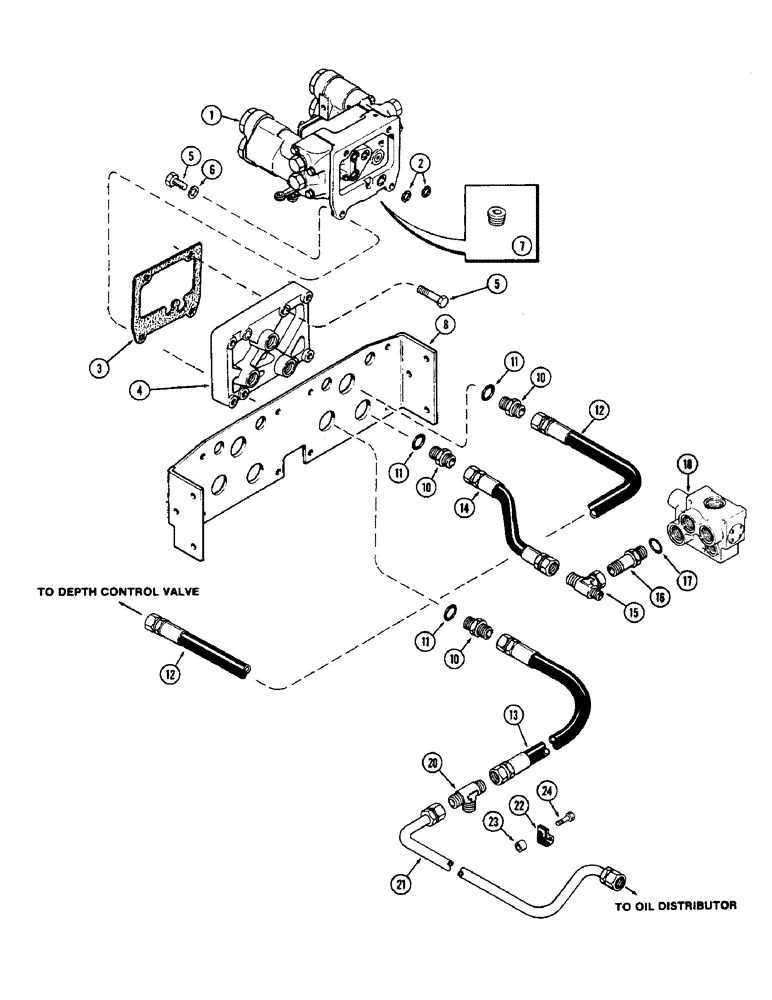

Запчасти Case IH 2870 (272) - REMOTE HYDRAULIC VALVE CIRCUITRY, WITH SINGLE DUAL CONTROL VALVE (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - hydraulic, remote (See figure 282-296)

1шт.

2

A32348

GASKET,16.54mm ID x 23.29mm OD x 3.5mm Thk

GASKET - port, Serial Range: valve-manifold

2шт.

3

A145407

GASKET

- valve, Serial Range: body-manifold

1шт.

4

A143889

MANIFOLD

- valve mounting

1шт.

5

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- 1/2 x 2-1/4" NC hex

4шт.

6

92-8

LOCK WASHER,1/2"

4шт.

7

221-849

PLUG,Hex Soc, 1/8"-27

- 1/8" PT socket head

1шт.

8

REF

INSTRUCTION

SUPPORT - hose, (See figure 324)

1шт.

10

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY - hose to valve, Incl. Ref. 11

3шт.

11

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 1-5/32 x 1/8" (23.81 x 29.37 x 3.18 mm)

1шт.

12

A140575

HOSE

Remote Valve to Depth Control Valve

1шт.

13

A140579

HOSE - remote valve to return tee, 25" long (635 mm)

1шт.

14

A146581

HOSE,0.75" ID x 15.00", SAE 100R2

- Remote valve to regulator valve 0.75" ID x 15.00", SAE 100R2

1шт.

15

218-847

TEE - swivel

1шт.

16

218-5030

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY, Includes: Ref. 17

1шт.

17

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 1-5/32 x 1/8" (23.81 x 29.37 x 3.18 mm)

1шт.

18

REF

INSTRUCTION

VALVE ASSEMBLY - pressure regulator (See figure 266)

1шт.

20

218-596

TEE,1 1/16"-12 37 Degree

- return oil

1шт.

21

A148295

TUBE - return oil to distributor tube

1шт.

22

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- tube

2шт.

23

A76093

BUSHING

SPACER - clamp, 13/32 x 3/4 x 1/2" (10.32 x 19.05 x 12.7 mm)

2шт.

24

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.
