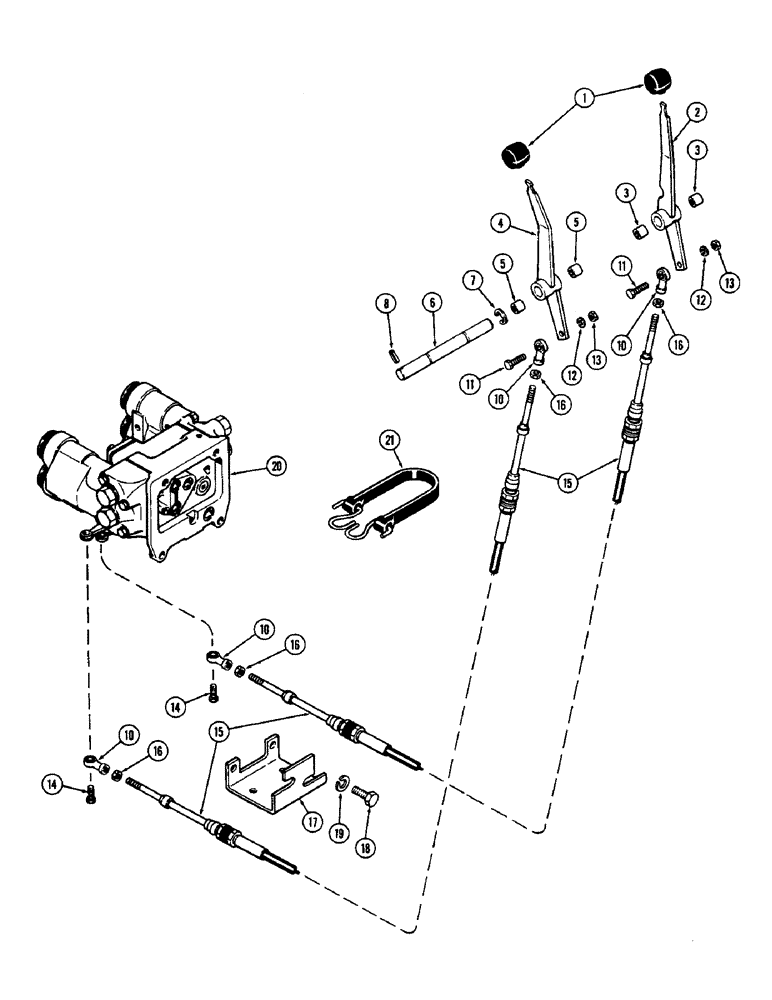

Запчасти Case IH 2870 (270) - REMOTE HYDRAULIC CONTROLS, WITH SINGLE DUAL CONTROL VALVE (08) - HYDRAULICS

1

A137806

KNOB

- control lever

2шт.

2

A142118

LEVER ASSEMBLY - inner, remote hydraulic valve control, Includes: Ref. 3

1шт.

3

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- pivot

2шт.

4

A142116

LEVER ASSEMBLY - outer, remote hydraulic valve control, Includes: Ref. 5

1шт.

5

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- pivot

2шт.

6

A75736

SHAFT

- lever pivot

1шт.

7

A27785

CIRCLIP,#62, .480" Dia, E-Type

Ring, Retaining, , lever #62, .480" Dia, E-Type

1шт.

8

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, (4.76 x 25.4 mm) 3/16" x 1", Slotted

1шт.

10

A35134

BEARING

BALL JOINT -, Serial Range: cable-lever

4шт.

11

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(To hand lever) Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

13

9635082

NUT,5/16" - 18, Gr 5

2шт.

14

114-101

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

(To valve lever) Hex, 5/16"-24 x 7/8", G5, Full Thd

2шт.

15

A152748

CABLE

- control, remote hydraulic valve, 80" long (2032 mm) (Replaces A142196)

2шт.

16

86637933

JAM NUT,5/16" - 24, Gr 5

Cable end Jam, 5/16"-24, G5

4шт.

17

A145346

BRACKET

- cable anchor

1шт.

18

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

19

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

20

REF

INSTRUCTION

VALVE ASSEMBLY - control (See figure 282-296)

1шт.

21

A147815

STRAP

ASSEMBLY - cable tie down (To platform) (1st used P.I.N. 8828263)

1шт.
