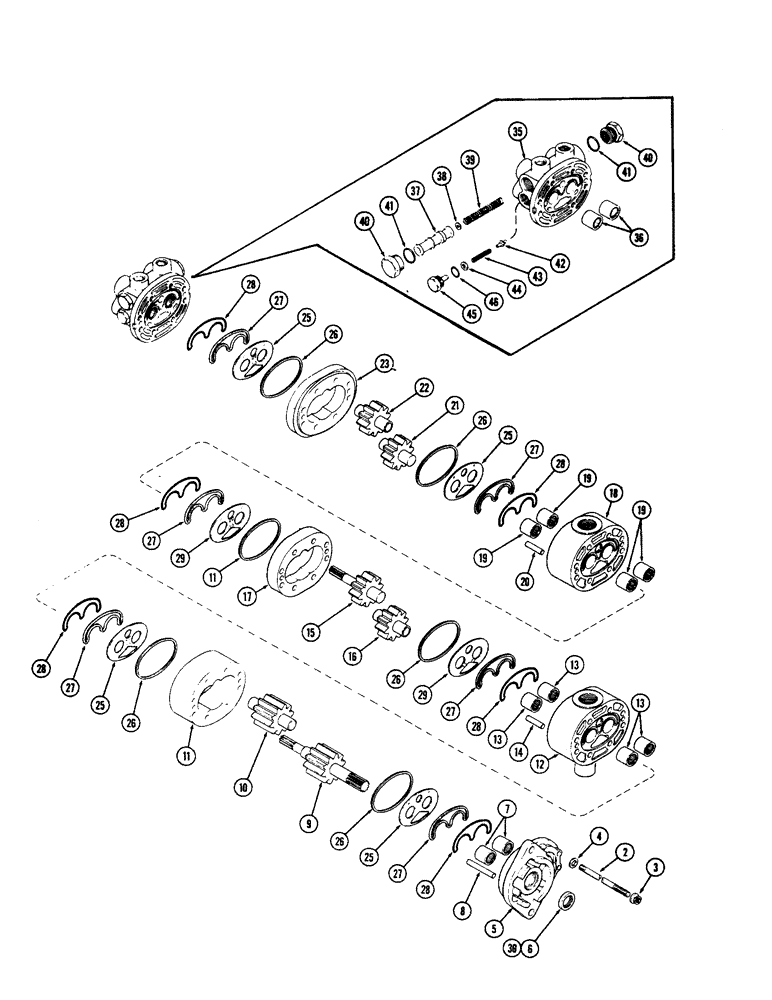

Запчасти Case IH 2870 (268) - HYDRAULIC PUMP (08) - HYDRAULICS

A150825

PUMP

ASSEMBLY - hydraulic, Includes: Ref. 2 - 46

1шт.

2

A45052

STUD

- body, 3/8" NF x 10-3/4"

8шт.

3

A45051

NUT

- 3/8" NF

8шт.

4

A45050

WASHER

- 3/8 x 5/8 x 1/16" (9.53 x 15.88 x 1.59 mm) (Replaces A32395)

8шт.

5

A44110

HOUSING

BODY ASSEMBLY - drive end, Includes: Ref. 6 and 7

1шт.

6

T39095

OIL SEAL

- oil, drive shaft

1шт.

Part of Pump Repair Seal Kit P/N A44128

1шт.

7

A28244

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W

BEARING - needle

2шт.

8

A45434

PIN - dowel, 2-13/16" long (71.44 mm)

1шт.

9

A45430

SHAFT

GEAR ASSEMBLY - pump drive, with shaft

1шт.

10

A45431

GEAR

- idler

1шт.

11

A45433

LARGE PLATE

PLATE - pump gear

1шт.

12

A45428

LARGE PLATE

PLATE ASSEMBLY - middle bearing, Includes: Ref. 13

1шт.

13

A28244

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W

BEARING - needle

1шт.

14

T39077

PIN

- dowel, 1-9/16" long (39.69 mm)

2шт.

15

T39092

GEAR

- drive, middle

1шт.

16

A44106

GEAR

- driven, middle

1шт.

17

A45048

PLATE

- middle gear housing

1шт.

18

A45098

LARGE PLATE

PLATE ASSEMBLY - bearing, rear (Replaces A44126), Includes: Ref. 19

1шт.

19

A28244

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W

BEARING - needle

4шт.

20

A45436

PIN - dowel, 1-11/16" long (42.86 mm)

2шт.

21

A45432

GEAR

- idler, rear

1шт.

22

A45437

GEAR

- drive, rear

1шт.

23

A45049

LARGE PLATE

PLATE - rear gear housing (Replaces A45435)

1шт.

A44127

KIT

WEAR PLATE KIT, Includes: Ref. 25 - 30

1шт.

25

A45046

WEAR PLATE

PLATE - wear, front (Replaces T39089)

4шт.

26

NSS

NOT SOLD SEPARAT

RING - seal retaining (See A44128)

6шт.

Part of Pump Repair Seal Kit P/N A44128

1шт.

27

NSS

NOT SOLD SEPARAT

SEAL - plastic, pre-load (See A44128)

6шт.

Part of Pump Repair Seal Kit P/N A44128

1шт.

28

NSS

NOT SOLD SEPARAT

SEAL - rubber (See A44128)

6шт.

Part of Pump Repair Seal Kit P/N A44128

1шт.

29

A45047

LARGE PLATE

PLATE - wear, center (Replaces A44103)

2шт.

30

T39095

OIL SEAL

- oil, drive shaft

1шт.

Part of Pump Repair Seal Kit P/N A44128

1шт.

A45099

COVER

ASSEMBLY - flow-divider (Includes tube and seat) (Replaces A45429), Includes: Ref. 35 - 46

1шт.

35

NSS

NOT SOLD SEPARAT

COVER ASSEMBLY

1шт.

36

A28244

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W

BEARING - needle

2шт.

37

A45441

PISTON ASSY.

PISTON - flow divider

1шт.

38

A45443

DISC - orifice

1шт.

39

A45442

SPRING - piston, 2-3/4" free length (69.85 mm)

1шт.

40

A45389

PLUG

- flow divider

2шт.

41

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- plug, 1-1/16 x 1-9/32 x 1/8" (27 x 32.54 x 3.18 mm)

2шт.

Part of Pump Repair Seal Kit P/N A44128

1шт.

42

A45444

VALVE POPPET

POPPET - relief valve

1шт.

43

A45445

SPRING

- relief valve, 2-11/32" free length (59.53 mm)

1шт.

44

A45448

SHIM - relief valve spring, 0.010" (0.27 mm)

1шт.

44

A45447

SHIM,.017" Thk

Relief valve spring (0.45 mm) .017" Thk

1шт.

44

A45446

SHIM - relief valve spring, 0.028" (0.72 mm)

1шт.

45

A45440

BRACKET

PLUG - relief valve

1шт.

46

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug, 3/4 x 15/16 x 3/32" (19.05 x 23.81 x 2.38 mm)

1шт.

Part of Pump Repair Seal Kit P/N A44128

1шт.

A44128

KIT

SEAL KIT - pump repair, Includes: Ref. 6, 26, 27, 28, 30, 41 and 46

1шт.
