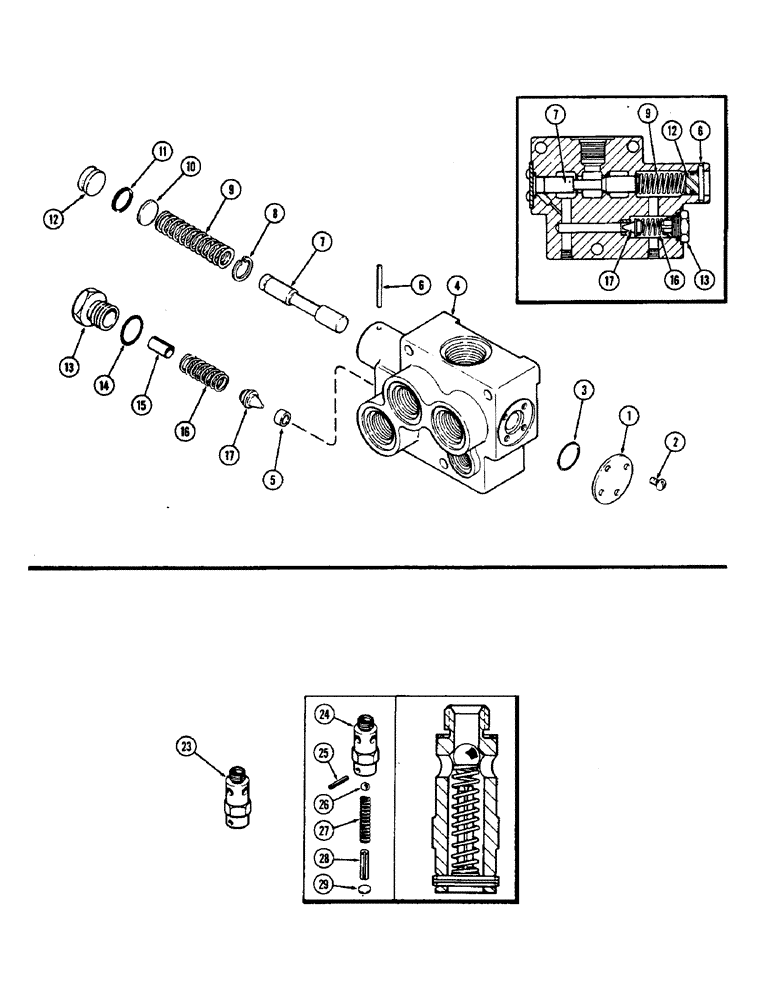

Запчасти Case IH 2870 (266) - PRESSURE REGULATOR VALVE (08) - HYDRAULICS

A76991

VALVE

ASSEMBLY - pressure regulator, Includes: Ref. 1 - 17

1шт.

1

A60277

CAP

- spool opening

1шт.

2

164-22

SCREW - #10-24 x 1/2" button head

4шт.

3

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- cap, 3/4 x 15/16 x 3/32" (19.05 x 23.81 x 2.38 mm)

1шт.

Part of Seal Kit P/N A42884

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - valve (Order A76991)

1шт.

5

A60686

SEAT

- relief valve poppet

1шт.

6

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN - roll, 3/16 x 1-1/4" (4.76 x 31.75 mm)

1шт.

7

NSS

NOT SOLD SEPARAT

SPOOL - regulating (Order A76991)

1шт.

8

A60273

SNAP RING,#62, Ext

Ring, Snap, #62, Ext

1шт.

9

A60274

SPRING

- spool, 2-7/8" free length (73.03 mm)

1шт.

10

A60275

SHIM,.0164" Thk

Spool spring .0164" Thk

1шт.

11

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- plug, 11/16 x 7/8 x 3/32" (17.46 x 22.23 x 2.38 mm)

1шт.

Part of Seal Kit P/N A42884

1шт.

12

A60276

PLUG

- spool

1шт.

13

A139173

PLUG

RING ASSEMBLY - relief valve spring, Includes: Ref. 14 and 15

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 15/16 x 3.32" (19.05 x 23.81 x 2.38 mm)

1шт.

Part of Seal Kit P/N A42884

1шт.

15

138-245

LOCK PIN,1/2" x 7/8", Slotted

Pin, (12.7 x 22.23 mm) 1/2" x 7/8", Slotted

1шт.

16

A60286

SPRING

- relief valve, 2-3/16" free length (55.56 mm)

1шт.

17

A60687

VALVE POPPET

POPPET - relief valve

1шт.

A42884

KIT

SEAL KIT, Includes Refs. 3, 11 and 14

1шт.

23

A60890

VALVE

ASSEMBLY - relief, lube oil, cold, Includes: Ref. 24 - 29

1шт.

24

NSS

NOT SOLD SEPARAT

BODY - (Order A60890), cold lube oil relief valve

1шт.

25

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, (3.18 x 19.05 mm), Cold lube oil relief valve 1/8" x 3/4", Slotted

1шт.

26

211-9

BALL,5/16" Dia

- meter (7.94 mm), cold lube oil relief valve 5/16" Dia

1шт.

27

A60889

SPRING

- relief valve, 1-11/16" free length (42.86 mm), cold lube oil

1шт.

28

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, , Spring guide (4.76 x 25.4 mm) cold lube oil relief valve 3/16" x 1", Slotted

1шт.

29

195-6

WASHER,#6

- 5/32 x 5/16 x 1/32" (3.97 x 7.94 x 0.79 mm), cold lube oil relief valve

1шт.
