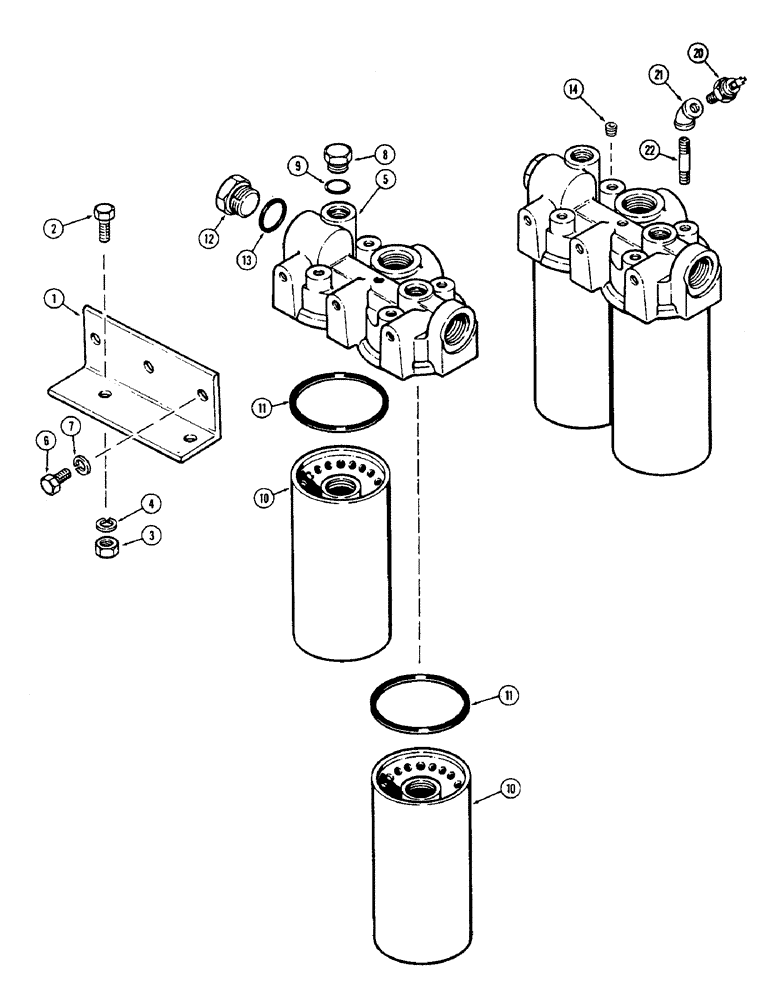

Запчасти Case IH 2870 (264) - HYDRAULIC OIL FILTER (08) - HYDRAULICS

1

A146862

BRACKET

- filter mounting

1шт.

2

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

3

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

5

A137898

HOUSING

- filter mounting

1шт.

6

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

3шт.

7

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

8

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Assy, Includes: Ref. 9 Hex Hd, 1 1/16"-12 ORB

1шт.

9

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-3/16 x 1-13/32 x 1/8" (30.16 x 35.72 x 3.18 mm)

1шт.

A45625

HYDRAULIC OIL FILTER

FILTER KIT - element replacement, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

ELEMENT - filter

2шт.

11

A139281

GASKET

-, Serial Range: element-housing

2шт.

12

218-5161

PLUG,Hex Hd, 1 5/8"-12 ORB

ASSEMBLY - housing, Includes: Ref. 13

1шт.

13

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- 1-15/32 x 1-23/32 x 3/32 (37.30 x 43.66 x 2.38 mm)

1шт.

14

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

4шт.

20

A66737

SWITCH, PRESSURE

SWITCH - transmission oil filter pressure

1шт.

21

221-1365

ELBOW,45 Degree, 1/8" NPT

- 45 degree

1шт.

22

221-1110

PIPE,Nipple, 1/8" NPT x 2 1/2"

NIPPLE - 1/8" PT x 2-1/2"

1шт.
