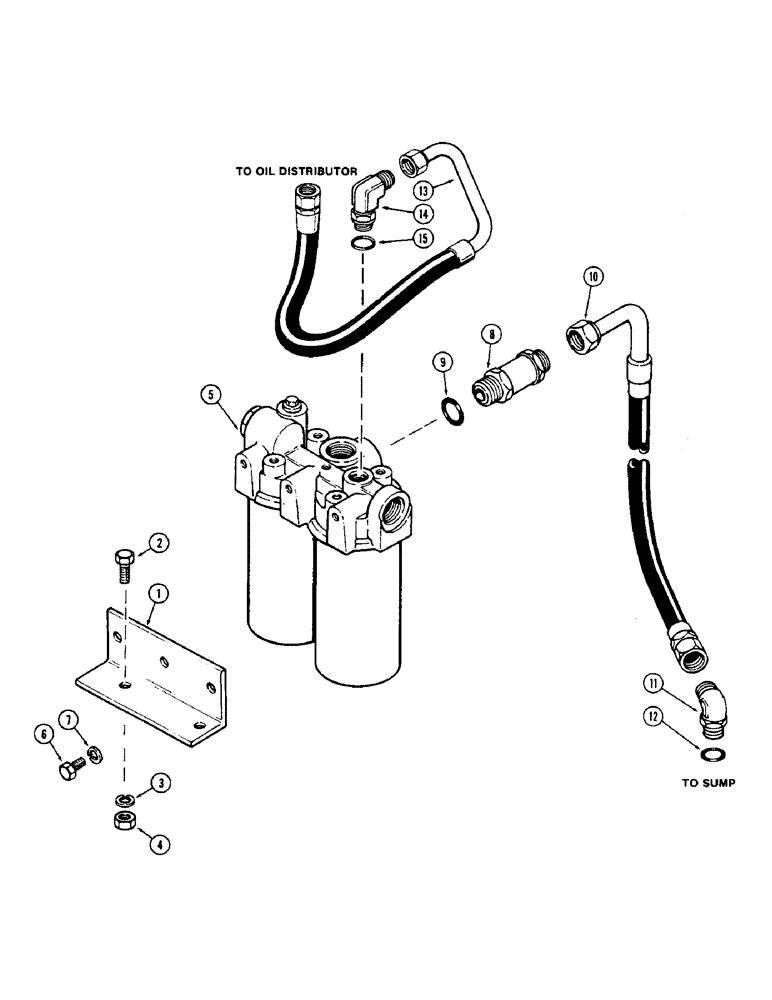

Запчасти Case IH 2870 (262) - HYDRAULIC FILTER CIRCUITRY (08) - HYDRAULICS

1

A146862

BRACKET

- mounting, hydraulic oil filter

1шт.

2

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

4

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

5

REF

INSTRUCTION

FILTER ASSEMBLY - (See figure 264)

1шт.

6

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

3шт.

7

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

8

A144547

VALVE

- relief, filter oil pressure

1шт.

9

A62194

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

- valve to filter housing, 1-1/2 x 1-11/16 x 3/32" (38.1 x 42.86 x 2.38 mm)

1шт.

10

A146854

HOSE

-, Serial Range: filter-sump

1шт.

11

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

adjustable, Assy, Incl. Ref. 12 90º, 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

12

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-1/16 x 1-1/4 x 1/8" (27 x 31.75 x 3.18 mm)

1шт.

13

A148299

TUBE ASSY.

HOSE - filter to oil distributor

1шт.

14

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Assy, Incl. Ref. 15 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

15

218-5347

O-RING,0.116" Thk x 0.986" ID, -913, Cl 6, 90 Duro

- 1 x 1-1/4 x 1/8" (25.4 x 31.75 x 3.18 mm)

1шт.
