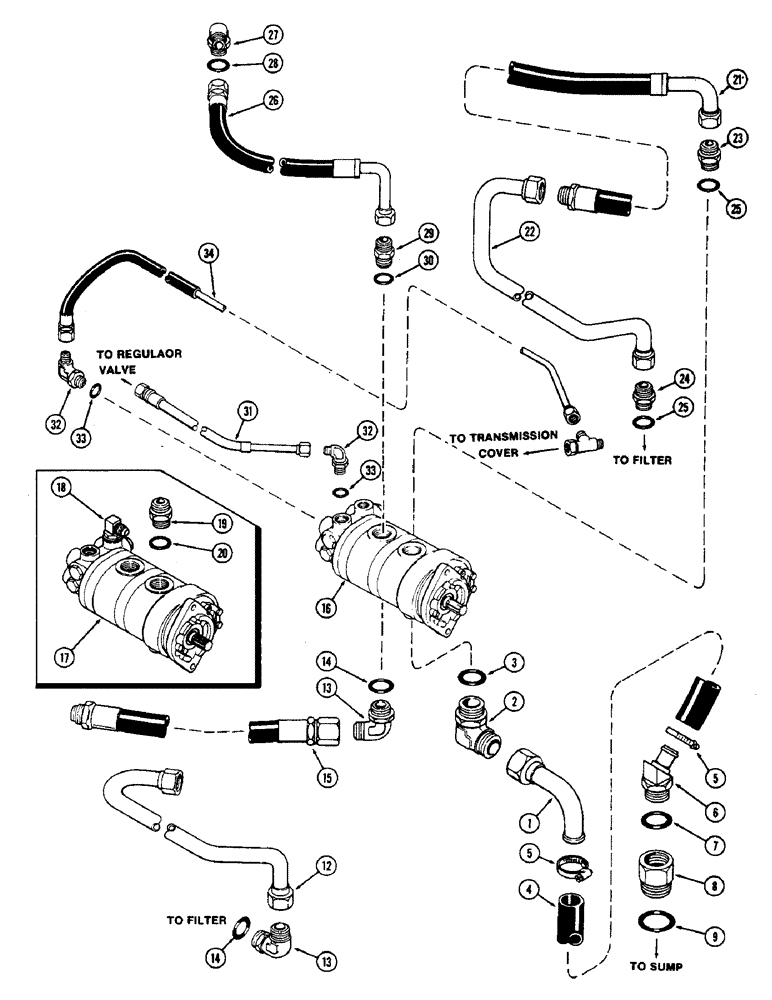

Запчасти Case IH 2870 (260) - HYDRAULIC PUMP CIRCUITRY (08) - HYDRAULICS

1

A140550

TUBE - pump to sump hose

1шт.

2

218-5113

ELBOW,90 Degree Elbow, 1-7/8" - 12 Male JIC x 1-7/8" - 12 Male ORB

ASSEMBLY - adjustable, Includes: Ref. 3

1шт.

3

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- 1-3/4 x 1-15/16 x 1/8" (44.45 x 49.21 x 3.18 mm)

1шт.

4

A144594

HOSE,1.50" ID x 18.00", SAE J30b R2 TYPE 2

1.50" ID x 18.00", SAE J306R2 - Sump

1шт.

5

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

CLAMP - hose, 1-5/16" to 2" (33.74 x 50.8 mm)

2шт.

6

217-318

FITTING,45° Elbow, 1-1/2" Hose Barb x 1-7/8" - 12 Male ORB

ELBOW ASSEMBLY, Includes: Ref. 7

1шт.

7

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- 1-3/4 x 1-15/16 x 1/8" (44.45 x 49.21 x 3.18 mm)

1шт.

8

218-5259

HYD CONNECTOR,1 5/8"-12 Male ORB x 1 1/4" NPSM Fem Sw

CONNECTOR ASSEMBLY, Includes: Ref. 9

1шт.

9

218-5013

O-RING,0.118" Thk x 2.337" ID, -932, Cl 6, 90 Duro

- 2-3/8 x 2-1/2 x 1/8" (60.33 x 63.5 x 3.18 mm)

1шт.

12

A148217

TUBE - filter to pump hose

1шт.

13

218-5112

ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

ASSEMBLY - adjustable, Includes: Ref. 14

2шт.

14

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- 1-15/32 x 1-23/32 x 5/32" (37.31 x 43.66 x 3.97 mm)

1шт.

15

A148216

HOSE,1.25" ID x 18.75", SAE 100R1

per SAE J516 - Filter to pump 1.25" ID x 18.75", SAE 100R1

1шт.

16

A150825

PUMP

ASSEMBLY - hydraulic (With two 7/8"-14 priority pressure ports) (See figure 268), Includes: Ref. 18

1шт.

17

A140483

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic (With one 7/8"14 and one 3/4"-16 priority pressure ports) (Order 1-A150825 pump, 1-A150824 connector and 1-218-5107 elbow), Includes: Ref. 18

1шт.

18

A45039

ELBOW ASSEMBLY - 90 degree (3/4"-16 pump end)

1шт.

19

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

CONNECTOR ASSEMBLY - (Used with A140483 pump), Includes: Ref. 20

1шт.

20

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- 1-15/32 x 1-23/32 x 5/32" (37.32 x 43.66 x 3.97 mm)

1шт.

21

A148218

HOSE -, Serial Range: pump-filter

1шт.

22

A148219

TUBE -, Serial Range: pump-filter

1шт.

23

A150824

ROD, CONNECTING

CONNECTOR ASSEMBLY - (Includes: Ref. 25)

1шт.

24

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

CONNECTOR ASSEMBLY, Includes: Ref. 25

1шт.

25

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- 1-15/32 x 1-23/32 x 5/32" (37.31 x 43.66 x 3.97 mm)

1шт.

26

A138265

HOSE

- pressure regulator, Serial Range: valve-pump

1шт.

27

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

adjustable, Assy, Incl. Ref. 28 90º, 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

28

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-1/16 x 1-5/16 x 1/8" (27 x 33.34 x 3.18 mm)

1шт.

29

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR ASSEMBLY, Incl. Ref. 30

1шт.

30

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-1/16 x 1-5/16 x 1/8" (27 x 33.34 x 3.18 mm)

1шт.

31

A140301

TUBE ASSY.

HOSE - pump to regulator valve tee

1шт.

32

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

ASSEMBLY - 90 degree adjustable (7/8"-14) (1 used with A140483 pump and 2 used with A150825 pump), Includes: Ref. 33

1шт.

33

218-5346

O-RING,0.116" Thk x 0.863" ID, -911, Cl 6, 90 Duro

- 7/8 x 1-1/8 x 1/8" (22.23 x 28.58 x 3.18 mm)

1шт.

34

A140718

HOSE

TUBE - pump relief valve drain

1шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- (Not illustrated) 5/8 x 13/16 x 3/32" (15.88 x 20.64 2.38 mm)

1шт.
