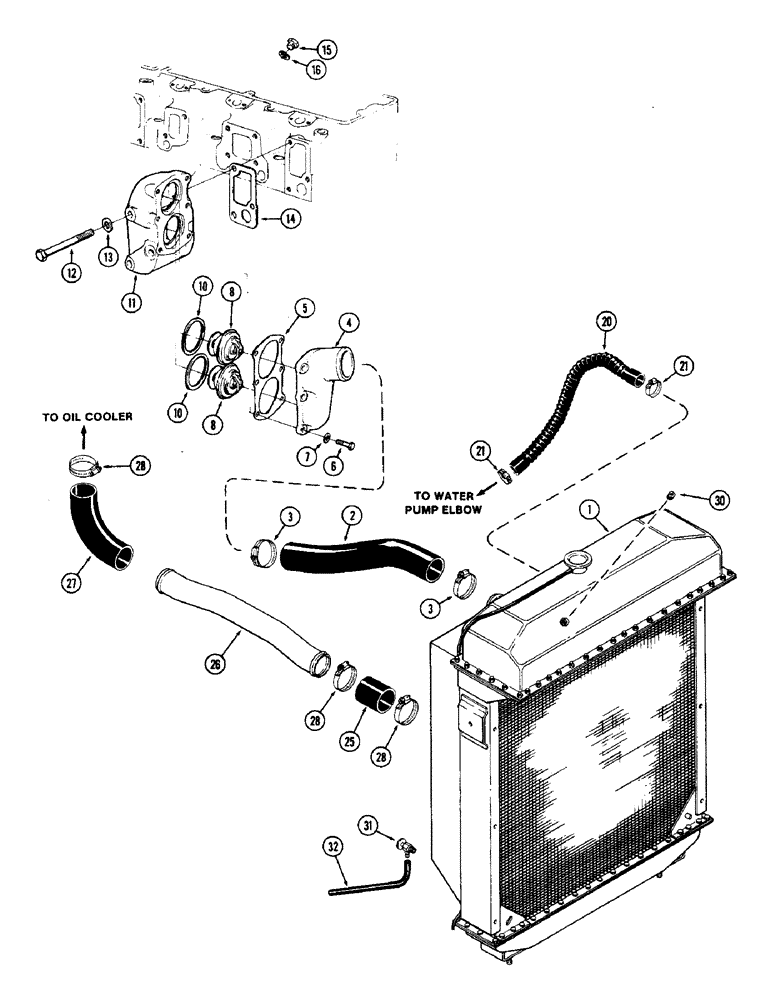

Запчасти Case IH 2870 (006) - RADIATOR HOSE AND THERMOSTATS, 674 CUBIC INCH DIESEL ENGINE (02) - ENGINE

1

A144483

RADIATOR

- (See figure 4)

1шт.

2

A148149

RADIATOR HOSE,2.25" ID x 15.20", SAE 20R4

Upper, Thermostat Housing to Radiator

1шт.

3

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - hose, 1-13/16" to 2-3/4" (46 mm to 69.85 mm)

2шт.

4

A45768

COVER

- thermostat housing

1шт.

5

A45769

GASKET,0.5mm Thk

- cover

1шт.

6

513-606

BOLT

- 8 x 1.25 x 25 mm, hex head

6шт.

7

195-103

WASHER,5/16"

- 3/8 x 7/8 x 1/16" (9.53 x 22.23 x 1.59 mm)

6шт.

8

A45759

THERMOSTAT

- 174 degrees F (79 degrees C)

2шт.

10

A45770

GASKET

-, Serial Range: thermostat-housing

2шт.

11

A45767

HOUSING

- thermostat

1шт.

12

513-820

SCREW

BOLT - 12 x 1.25 x 120 mm, hex head

3шт.

13

195-533

WASHER,1/2", SAE

- 1/2 x 1-1/16 x 1/16" (12.7 x 27 x 1.59 mm)

3шт.

14

A46170

GASKET

- thermostat, Serial Range: housing-head

1шт.

15

A45764

PLUG

- thermostat housing

1шт.

16

A45766

GASKET

- plug

1шт.

20

A146503

HOSE,31.8 mm ID x 736.60 mm, SAE 20R5 CLASS C

1.25" ID x 29.00", SAE 20R5 Class C - Pressure balance, Radiator to water pump

1шт.

21

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

(33.34 to 57.15 mm) #28, 1.31/2.25 Type F Worm

2шт.

25

G46338

INTAKE AIR HOSE,2.25" ID x 3.00", SAE 20R2

- Lower, Radiator to oil cooler tube 2.25" ID x 3.00", SAE 20R2

1шт.

26

A148150

TUBE

- radiator to engine oil cooler

1шт.

27

A148151

HOSE,2.25" ID x 5.65", SAE 20R4 Class C, D, or D1

- Tube to engine oil cooler 2.25" ID x 5.65", SAE 20R4 Class C, D, or D1

1шт.

28

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

(30.16 mm to 69.85 mm) #36, 1.81/2.75 Type F Worm

4шт.

30

221-841

PLUG

- radiator top tank, 1/4" PT, socket head

2шт.

31

A23655

VALVE

- drain, radiator, 1/4" PT (Replaces A27862)

1шт.

32

A75533

HOSE,0.25" ID x 13.00", SAE SC-715

RADIATOR HOSE, , Drain Valve 0.25" ID x 13.00", SAE SC-715

1шт.
