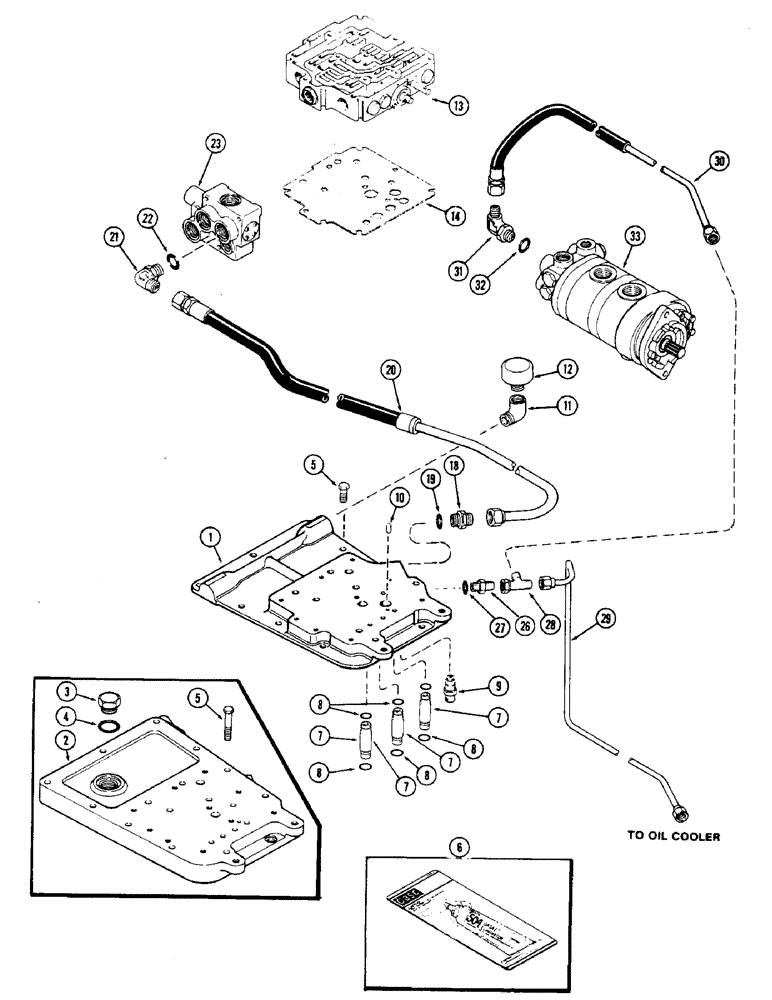

Запчасти Case IH 2870 (256) - TRANSMISSION TOP COVER AND TUBES (06) - POWER TRAIN

1

A144404

COVER

- transmission, top (Used transmission serial nos., Serial Range: 10052699-10120613)

1шт.

2

A75178

COVER

- transmission, top (Used prior to transmission serial no. 10052699. Also used transmission serial no. 10120613 and after)

1шт.

3

273916

PLUG,Hex, 1-5/16" - 12 ORB

Assy (Used with A75178 cover), Includes Ref. 4 Hex Hd, 1 5/16"-12 ORB

1шт.

4

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- 1-1/2 x 1-11/16 x 1/8" (38.1 x 42.86 x 3.18 mm)

1шт.

5

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Cover (9 used with A144404 cover and 1 used with A75178 cover) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

5

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- cover, 1/2 x 2-1/2" NC hex (2 used with A144404 cover and 10 used with A75178 cover)

1шт.

6

B17428

LOCTITE

- gasket eliminator (2 oz tube)

1шт.

7

A76120

TUBE

- oil distributor

3шт.

8

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- oil tube seal, 1/2 x 5/8 x 1/16" (12.7 x 15.88 x 1.59 mm)

6шт.

9

A60890

VALVE

ASSEMBLY - relief, lube oil (See figure 266)

1шт.

10

D24005

PIN

- cover locating, 3/16 x 1/2" (4.76 x 12.7 mm)

1шт.

11

221-415

ELBOW,90 Degree, 3/4"-14, NPT

Street, breather 90º, 3/4"-14, NPT

1шт.

12

A75179

BREATHER

- transmission

1шт.

13

REF

INSTRUCTION

VALVE ASSEMBLY - transmission control (See figures 258 and 260)

1шт.

14

A155116

GASKET

- control valve to top cover

1шт.

18

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY - regulator valve tube, for 3/4" tube (19.05 mm), Incl. Ref. 19

1шт.

19

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-1/16 x 1-1/4 x 1/8" (27 x 31.75 x 3.18 mm)

1шт.

20

A138249

HOSE

TUBE - regulator valve to transmission cover

1шт.

21

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Assy, to regulator valve, for 3/4" tube (19.05 mm), Incl. Ref. 22 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

22

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-1/16 x 1-1/4 x 1/8" (27 x 31.75 x 3.18 mm)

1шт.

23

REF

INSTRUCTION

VALVE ASSEMBLY - pressure regulator (See figure 266)

1шт.

26

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - hydraulic pump tube, for 1/2" tube (12.7 mm), Incl. Ref 27

1шт.

27

218-5345

O-RING,9-1, 90 Duro, .706" ID x .097" Thk

- 11/16 x 7/8 x 1/16" (17.46 x 22.23 x 1.59 mm)

1шт.

28

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- tube junction 37º, 3/4"-16 x 3/4"-16, Fem Sw Run

1шт.

29

A140427

TUBE

- oil cooler return

1шт.

30

A140718

HOSE

TUBE - hydraulic pump to transmission cover

1шт.

31

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

ASSEMBLY - to hydraulic pump, for 1/2" tube (12.7 mm), Includes: Ref. 32

1шт.

32

218-5346

O-RING,0.116" Thk x 0.863" ID, -911, Cl 6, 90 Duro

- 3/4 x 7/8 x 1/8" (19.05 x 22.23 x 3.18 mm)

1шт.

33

REF

INSTRUCTION

PUMP ASSEMBLY - hydraulic (See figure 268)

1шт.
