(254) - TRANSMISSION CONTROL VALVE AND TUBES

Запчасти Case IH 2870 (254) - TRANSMISSION CONTROL VALVE AND TUBES (06) - POWER TRAIN

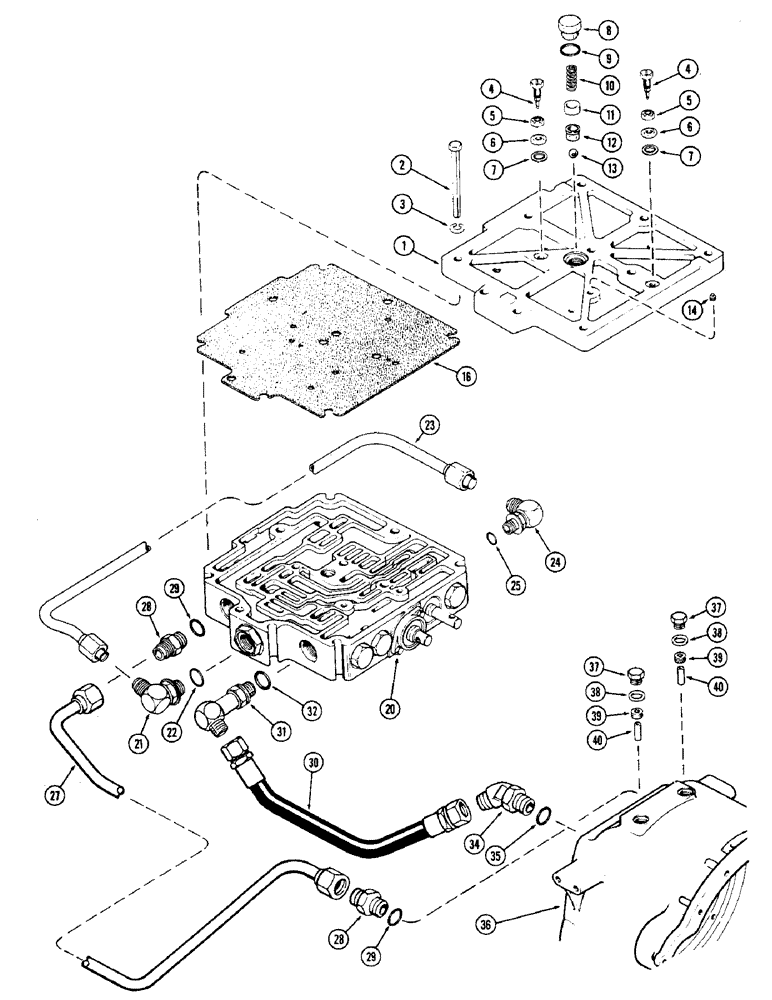

Схема запчастей Case IH 2870 - (254) - TRANSMISSION CONTROL VALVE AND TUBES (06) - POWER TRAIN
37
5
38
28
3
36
24
39
4
38
31
29
4
7
25
40
20
34
6
29
40
16
11
35
7
5
28
22
27
14
8
32
12
2
39
10
30
13
6
9
23
37
21
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A151421

COVER

- control valve, transmission (Aluminum) (1st used transmission serial no. 10121595) (See Ref. 16)

1шт.

1

A64321

COVER

- control valve, transmission (Cast iron) (Use before transmission serial no. 10121595) (See Ref. 16)

1шт.

2

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8 x 3-1/2" NC hex

10шт.

3

92-6

LOCK WASHER,3/8"

10шт.

4

A136916

NEEDLE

- retard orifice

2шт.

5

25-154

JAM NUT,Jam, 1/4"-28, G5

- jam, 1/4" NF hex

2шт.

6

122-13

GROMMET

WASHER - seal protector

2шт.

7

A59074

SEAL

- 9/16" OD with rubber insert (14.29 mm)

2шт.

8

A62588

PLUG

- detent

1шт.

10

A61696

SPRING

- detent ball, 1-1/16" free length (27 mm)

1шт.

11

A62107

SPACER

- detent, 1/2 x 11/16 x 1/4" (12.7 x 17.46 x 6.35 mm)

1шт.

12

A59062

SLEEVE

- detent

1шт.

13

211-12

BALL,7/16 Dia

- detent, 7/16" diameter (11.11 mm)

1шт.

14

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - 1/8" PT, square head

5шт.

16

A66734

GASKET

- cover to valve assembly (Use with A64321 cover) (See Ref. 1)

1шт.

16

A151615

GASKET

- cover to valve assembly (Use with A151421 cover) (See Ref. 1)

1шт.

20

REF

INSTRUCTION

VALVE ASSEMBLY - transmission control (See figure 258)

1шт.

21

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 90 degree, Includes: Ref. 22

1шт.

23

A63294

TUBE

- pilot, reverse lock-out

1шт.

24

A63295

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18 O-Ring

ASSEMBLY - 90 degree adjustable, Includes: Ref. 25

1шт.

27

A140747

TUBE

- control valve to clutch housing

1шт.

28

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - straight, Incl. Ref 29

2шт.

30

A148280

HOSE,0.50" ID x 14.00", SAE 100R1

- Control valve to clutch housing 0.50" ID x 14.00", SAE 100R1

1шт.

31

A62102

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16 O-Ring, Long

ASSEMBLY - 90 degree extended, Includes: Ref. 32

1шт.

34

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 45 degree adjustable, Incl. Ref 35

1шт.

36

REF

INSTRUCTION

HOUSING - clutch (See figure 168)

1шт.

37

214389

PLUG,3/4" - 16 ORB

Assy, Includes Ref. 38 Hex Hd, 3/4"-16 ORB

2шт.

39

A58050

PLUG

- oil fill tube

2шт.

40

A58049

TUBE

- oil fill, (C1) and (C4) clutches

2шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32" (15.88 x 20.64 x 2.38 mm)

1шт.

22

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32" (15.88 x 20.64 x 2.38 mm)

1шт.

25

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32" (15.88 x 20.64 x 2.38 mm)

1шт.

29

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32" (15.88 x 20.64 x 2.38 mm)

1шт.

32

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32" (15.88 x 20.64 x 2.38 mm)

1шт.

35

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32" (15.88 x 20.64 x 2.38 mm)

1шт.

38

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32" (15.88 x 20.64 x 2.38 mm)

1шт.
