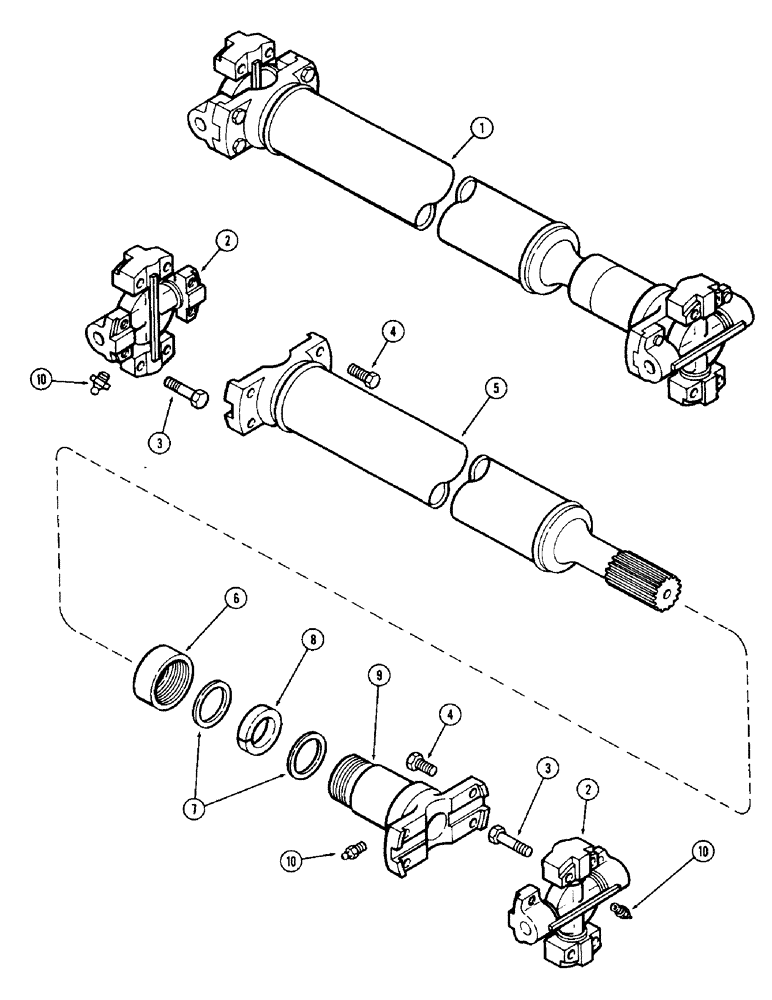

Запчасти Case IH 2870 (252) - PTO DRIVE SHAFT (06) - POWER TRAIN

1

A148811

SHAFT

ASSEMBLY - PTO drive, Includes: Ref. 2 - 10

1шт.

2

D73648

JOINT

ASSEMBLY - universal

2шт.

3

A17298

BOLT,Hex, 3/8" x 1 11/16"

- 3/8 x 2-1/4" NC hex

8шт.

4

28-616

BOLT,Hex, 3/8" - 24 x 1", Gr 8

- 3/8 x 15/16" NC hex (Replaces A17302)

8шт.

5

A44739

TUBE

- drive shaft

1шт.

6

A19923

CAP

- retainer, slip yoke

1шт.

7

A19922

WASHER

- felt seal

2шт.

8

A19924

SEAL

- dust, slip yoke cover

1шт.

9

L33943

KIT

YOKE - slip (Replaces A19917)

1шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" PT straight

3шт.
