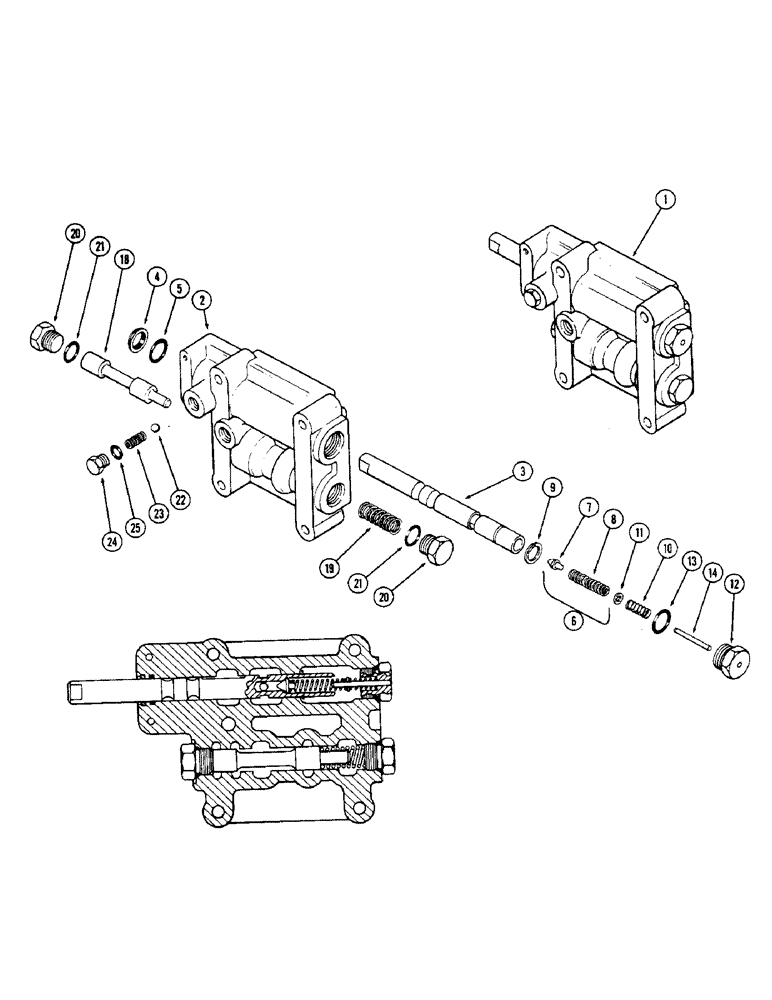

Запчасти Case IH 2870 (250) - PTO CONTROL VALVE (06) - POWER TRAIN

1

A152404

VALVE

ASSEMBLY - PTO control (Used transmission serial no. 10052013 and after), Includes: Ref. 2 - 25

1шт.

1

A77303

VALVE

ASSEMBLY - PTO control (Order A152404) (Used prior to transmission serial no. 10052013), Includes: Ref. 2 - 25

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - modulating

1шт.

4

A63660

RING

- wiper, modulating spool

1шт.

5

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- spool, 9/16 x 3/4 x 3/32" (14.29 x 19.05 x 2.38 mm)

1шт.

6

A60155

SPRING

ASSEMBLY - modulator, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

POINT

1шт.

8

NSS

NOT SOLD SEPARAT

SPRING - modulating, primary, 1-5/8" free length (41.28 mm)

1шт.

9

A60273

SNAP RING,#62, Ext

Ring, Snap, , valve spool #62, Ext

1шт.

10

A61988

SPRING

- modulating, secondary, 3/4" free length (19.05 mm)

1шт.

11

A61989

WASHER,4.95mm ID x 9.27mm OD x 1.02mm Thk

- guide, secondary modulating spring

1шт.

12

A61985

PLUG

ASSEMBLY - modulating spool, Includes: Ref. 13 and 14

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug, 3/4 x 15/16 x 3/32" (19.05 x 23.81 x 2.38 mm)

1шт.

14

NSS

NOT SOLD SEPARAT

PIN - spring guide

1шт.

18

A152403

SPOOL - pilot (Used in A152404 valve)

1шт.

18

A77306

SPOOL

- pilot (Used in A77303 valve) (Order 1-A152403 spool and 1-A58271 spring)

1шт.

19

A58271

SPRING

- pilot spool (Used in A152404 valve) 1-11/16" free length (42.86 mm)

1шт.

19

A22712

SPRING

- pilot spool (Used in A77303 valve) 1-7/16" free length (36.51 mm)

1шт.

20

A62564

PLUG

- pilot spool

2шт.

22

211-11

BALL,3/8" Dia

- detent, meter (9.53 mm) 3/8" Dia

1шт.

23

B51407

SPRING

- detent, 19/32" free length (15.08 mm)

1шт.

24

9672438

PLUG,7/16" - 20 ORB

Assy, Detent spring, Incl. Ref. 25 Hex Hd, 7/16"-20 ORB

1шт.

25

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

- 1/2 x 5/8 x 1/16" (12.7 x 15.88 x 1.59 mm)

1шт.

21

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- plug, 5/8 x 13/16 x 3/32" (15.88 x 20.64 x 2.38 mm)

2шт.
