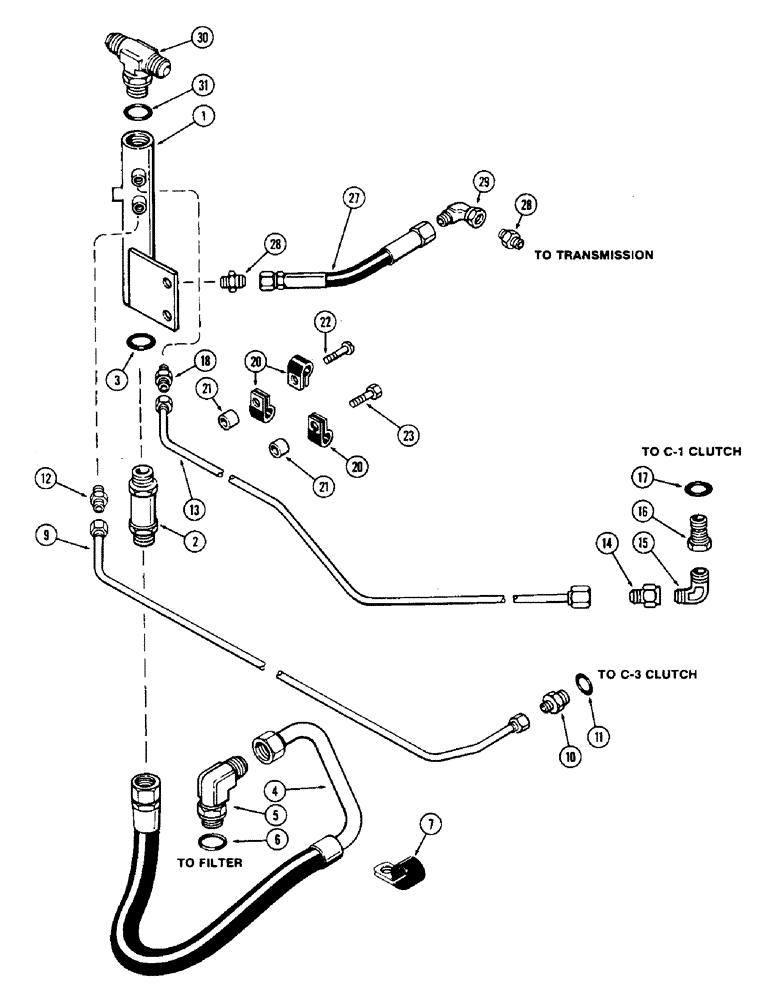

Запчасти Case IH 2870 (248) - TRANSMISSION AND CLUTCH LUBRICATION TUBES (06) - POWER TRAIN

1

A148250

MANIFOLD

DISTRIBUTOR - lube oil, transmission clutch and PTO

1шт.

2

A148375

VALVE - check, oil distributor

1шт.

3

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- check valve, 15/16 x 1-1/8 x 3/32" (23.81 x 28.58 x 2.38 mm)

1шт.

4

A148299

TUBE ASSY.

HOSE -, Serial Range: distributor-filter

1шт.

5

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Assy, Incl. Ref. 6 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

6

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-3/16 x 1-3/8 x 1/8" (30.16 x 34.93 x 3.18 mm)

1шт.

7

R17416

CLAMP

- hose

1шт.

9

A148345

TUBE - lube oil, (C3) clutch

1шт.

10

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

CONNECTOR ASSEMBLY, Includes: Ref. 11

1шт.

12

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR

1шт.

13

A148341

TUBE - lube oil, (C1) clutch

1шт.

14

218-786

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

- 1/2" tube to 3/8" tube (12.7 x 9.53 mm)

1шт.

15

218-1055

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/4"-18, NPTF

- 90 degree

1шт.

16

A148901

FITTING

UNION - bulkhead

1шт.

18

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR

1шт.

20

49845

CLAMP

- tube

3шт.

21

A76093

BUSHING

SPACER - clamp, 13/32 x 3/4 x 1/2" (10.32 x 19.05 x 12.7 mm)

2шт.

22

187-1305

SELF-TAP SCREW,Hex, 3/8" - 18 x 1 1/4"

SCREW - tapping, 3/8 x 1/4"

1шт.

23

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

27

A148762

HOSE - lube oil, transmission shaft

1шт.

28

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR

2шт.

29

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree

1шт.

30

218-5185

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSEMBLY, Includes: Ref. 31

1шт.

31

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 1-5/32 x 1/8" (23.81 x 29.37 x 3.18 mm)

1шт.

11

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32" (15.88 x 20.64 x 2.38 mm)

1шт.

17

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32 (15.88 x 20.64 2.38 mm)

1шт.
