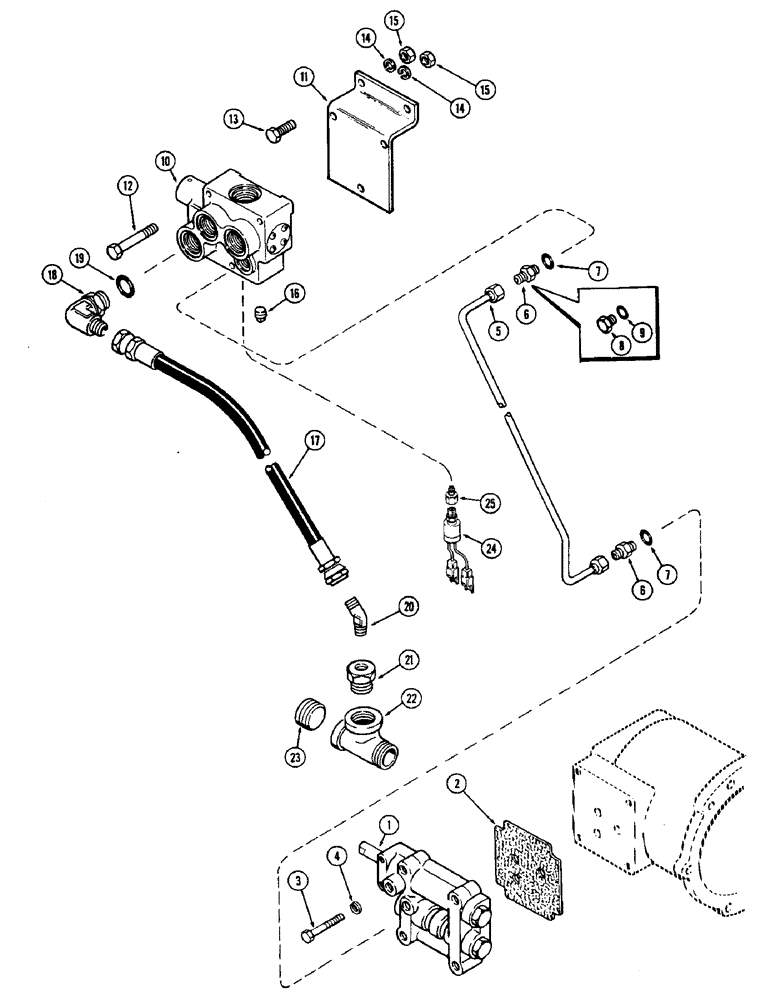

Запчасти Case IH 2870 (244) - PTO CONTROL AND REGULATOR VALVES (06) - POWER TRAIN

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, PTO (See figure 250)

1шт.

2

A77307

GASKET

-, Serial Range: valve-housing

1шт.

3

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

4шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

5

A138227

TUBE - regulator valve to PTO valve

1шт.

6

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR ASSEMBLY, Incl. Ref. 7

2шт.

8

76349

PLUG,9/16" - 18 ORB

Assy, Regulator valve (Without PTO), Incl. Ref. 9 Hex Hd, 9/16"-18 ORB

1шт.

10

REF

INSTRUCTION

VALVE ASSEMBLY - pressure regulator (See figure 266)

1шт.

11

A76994

BRACKET

- mounting, pressure regulator valve

1шт.

12

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3шт.

13

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

5шт.

16

221-849

PLUG,Hex Soc, 1/8"-27

- drain port, 1/8" PT socket head

1шт.

17

A150740

HOSE - regulator valve to transmission, 50" long (1270 mm) (Replaces A144016)

1шт.

18

218-5120

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

ASSEMBLY, Includes: Ref. 19

1шт.

19

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 1-5/32 x 1/8" (23.81 x 29.37 x 3.18 mm)

1шт.

20

218-534

ELBOW,45 Degree, 3/4"-14, 37 Degree x 3/8"-18, NPTF

1шт.

21

221-1602

BUSHING - reducing, 1" to 3/8" PT

1шт.

22

221-1695

TEE,Street, 1" NPT

- street, 1" PT

1шт.

23

221-1846

PLUG

- 1" PT socket head (Without PTO)

1шт.

24

A145119

SWITCH

- sender, oil pressure

1шт.

25

A155051

SPARE PART

SNUBBER - switch

1шт.

7

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32" (15.88 x 20.64 x 2.38 mm)

1шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32" (15.88 x 20.64 x 2.38 mm)

1шт.
