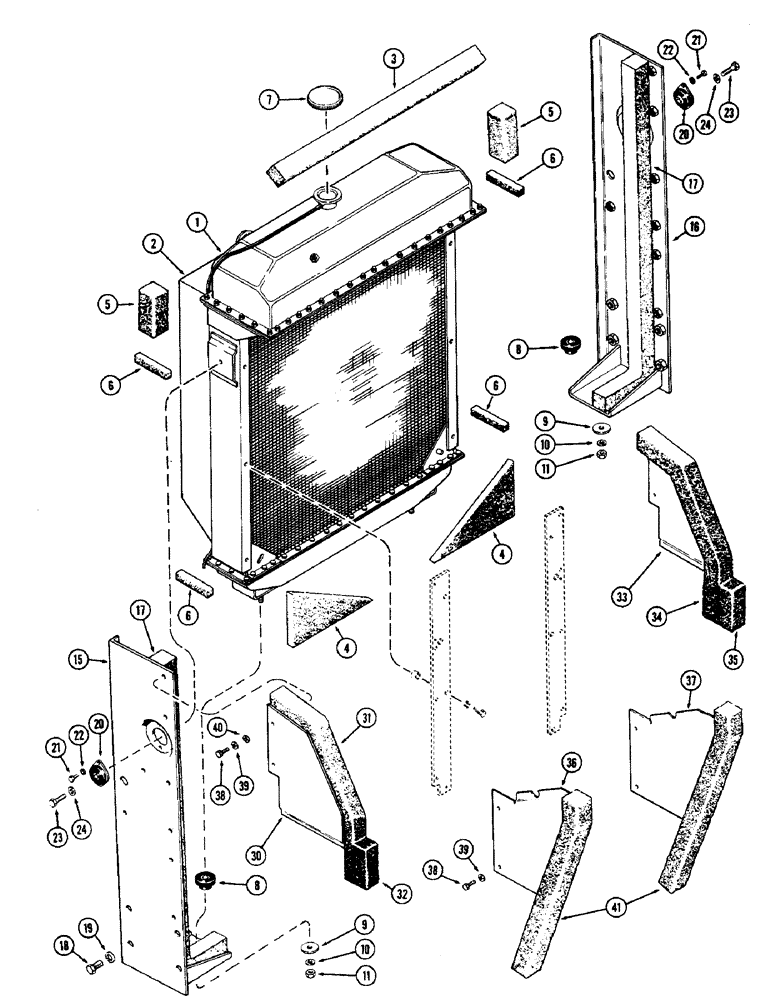

Запчасти Case IH 2870 (004) - RADIATOR, BAFFLES AND SUPPORTS, 674 CUBIC INCH DIESEL ENGINE (02) - ENGINE

1

A144483

RADIATOR

ASSEMBLY, Includes: Ref. 2

1шт.

2

A151027

SHROUD KIT - with attaching screws

1шт.

3

A150488

SEAL

- top, front, 2" square x 34" (50.8 x 863.6 mm)

2шт.

4

A150496

SEAL

- corner, lower

2шт.

5

A150489

SEAL

- top, side, 2" square x 5" (50.8 x 127 mm)

4шт.

6

A148863

SEAL

- radiator corners, 3/4" square x 4-1/2" (19.05 x 114.3 mm)

4шт.

7

A151618

CAP

- radiator, 14 PSI (96.5 kPa) (Replaces A57167)

1шт.

8

A142542

MOUNTING PARTS

MOUNT - radiator stud, lower

2шт.

9

51200247

WASHER

- mounting, lower, 9/16 x 1-3/4 x 1/8" (14.29 x 44.45 x 3.18 mm), Transmission

2шт.

10

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

11

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

15

A146494

SUPPORT

ASSEMBLY - right hand side (Includes: Ref. 17)

1шт.

16

A146498

SUPPORT

ASSEMBLY - left hand side, Includes: Ref. 17

1шт.

17

A150490

SEAL

- radiator to support, 2" square x 46" (50.8 x 1168.4 mm)

1шт.

18

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

19

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

20

A138589

MOUNTING PARTS

MOUNT - radiator to side support

2шт.

21

187-1067

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW - #10-24 x 1/2" hex head

4шт.

22

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

23

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

30

A150485

BAFFLE

ASSEMBLY - upper right hand side, Includes: Ref. 31 and 32

1шт.

31

A150487

SEAL

- baffle, 2" square x 25" (50.8 x 635 mm)

1шт.

32

A150489

SEAL

- baffle, 2" square x 5" (50.8 x 127 mm)

1шт.

33

A150486

BAFFLE

ASSEMBLY - upper left hand side, Includes: Ref. 34 and 35

1шт.

34

A150487

SEAL

- baffle, 2" square x 25" (50.8 x 635 mm)

1шт.

35

A150489

SEAL

- baffle, 2" square x 5" (50.8 x 127 mm)

1шт.

36

A150389

BAFFLE

- lower, right hand

1шт.

37

A150390

BAFFLE

- lower, left hand

1шт.

38

175-421

SCREW - 3/8 x 1" NC truss head

2шт.

38

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

39

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

40

195-106

WASHER,1/2"

- 9/16 x 1-3/8 x 1/8" (14.29 x 34.93 x 3.18 mm)

4шт.

41

A150491

SEAL

- wing panel, lower, 2" square x 26-1/2" (50.8 x 673.1 mm)

2шт.
