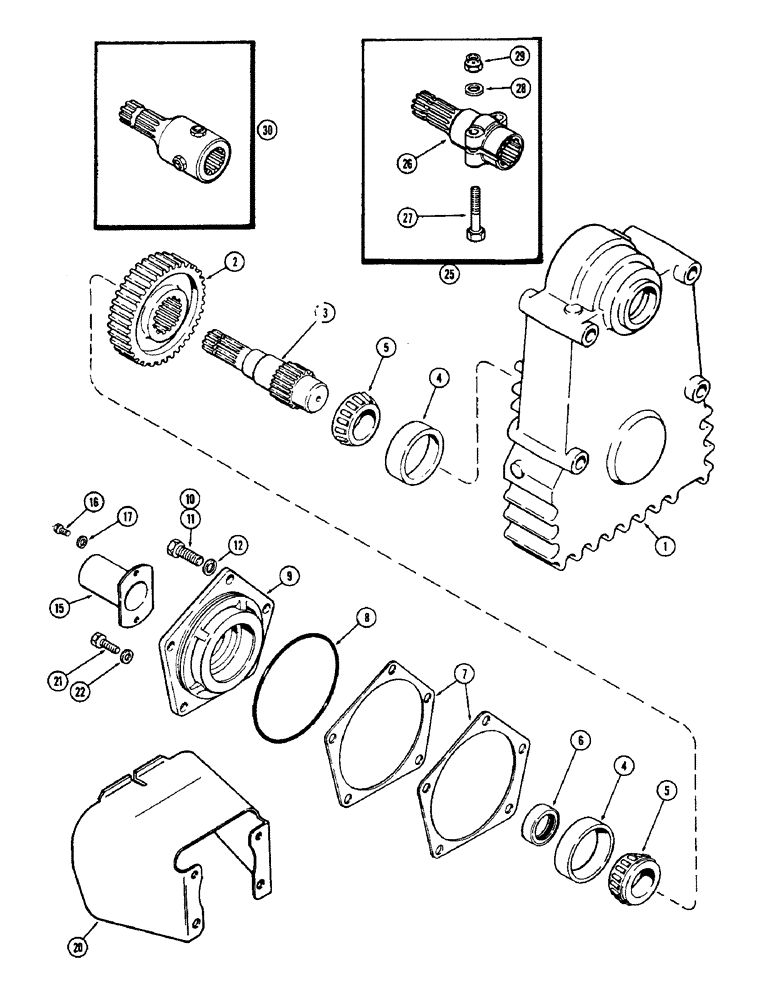

Запчасти Case IH 2870 (242) - PTO OUTPUT SHAFT (06) - POWER TRAIN

1

A146542

HOUSING

- PTO drop box (See figure 240)

1шт.

2

A76563

GEAR

- output shaft, 38 teeth

1шт.

3

A146031

SHAFT

- PTO output

1шт.

4

A75218

BEARING CUP,4.1339" OD x 1.1417"

CUP - bearing, output shaft, 4-1/8" OD (104.78 mm)

2шт.

5

A75219

ROLLER BEARING,1.9685" ID x 1.4173"

CONE - bearing, output shaft, 2" ID (50.8 mm)

2шт.

6

A57708

SEAL

- oil, output shaft, 1-3/4 x 2-1/2 x 1/2" (44.45 x 63.5 x 12.7 mm)

1шт.

7

A75220

SHIM,.005" Thk

Carrier, output shaft brg. (0.14 mm) .005" Thk

1шт.

7

A75221

SHIM,.007" Thk

Carrier, output shaft brg. (0.20 mm) .007" Thk

1шт.

8

R21494

O-RING,0.139" Thk x 7.234" ID, -263, Cl 6, 90 Duro

- carrier seal, 7-1/4 x 7-1/2 x 1/8" (184.15 x 190.05 x 3.18 mm)

1шт.

9

A150048

CARRIER

- bearing, output shaft

1шт.

10

113-2622

BOLT

- 5/8 x 1-1/2" NC hex

1шт.

11

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

1шт.

12

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

15

A58238

GUARD

- PTO output shaft

1шт.

16

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

17

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

20

A62391

GUARD

SHIELD - PTO

1шт.

21

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

22

92-8

LOCK WASHER,1/2"

4шт.

25

A77361

ADAPTER

KIT - output shaft (Replaces A150442), Includes: Ref. 26 - 29

1шт.

26

A151928

DRIVE SHAFT

ADAPTER - (20 internal teeth, 1-3/4" ID and 21 external teeth, 1-3/8" OD)

1шт.

27

113-426

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

2шт.

28

A30061

WASHER

- 1/2 x 15/16 x 1/16"

2шт.

29

131-510

LOCK NUT,1/2"-13

NUT - 1/2" NC flexlock

2шт.

30

A150442

ADAPTER

ASSEMBLY - with set screws and nuts (Order A77361)

1шт.
