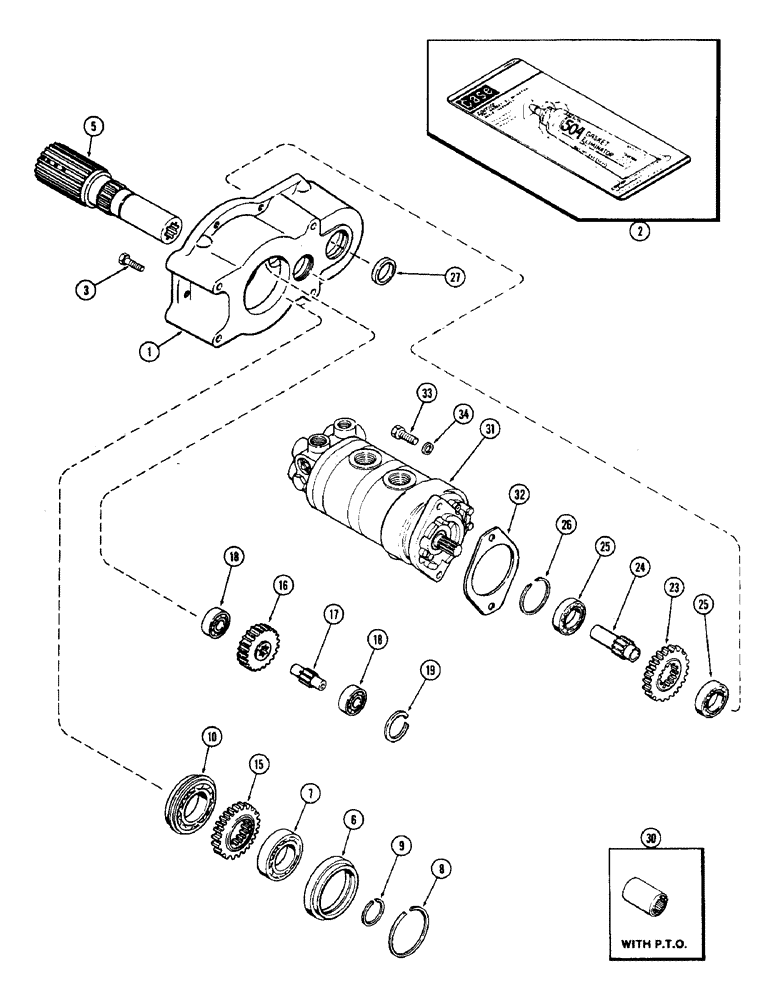

Запчасти Case IH 2870 (238) - HYDRAULIC PUMP DRIVE (06) - POWER TRAIN

1

A138449

HOUSING

- hydraulic pump drive

1шт.

2

B17428

LOCTITE

- gasket eliminator, 2 oz - (50 CC)

1шт.

3

13-892

BOLT,Hex, 1/2" - 13 x 5-3/4", Gr 5

- 1/2 x 5/34" NC hex

4шт.

5

A138451

SHAFT

- hydraulic pump drive (See figure 236)

1шт.

6

A138453

RING

- pilot, shaft bearing

1шт.

7

A150523

BALL BEARING,1.9685" ID x 3.5433" OD x 0.7874"

BEARING - front, input shaft, 2 x 3-1/2 x 3/4" (50.8 x 88.9 x 19.05 mm)

1шт.

8

G46143

RING

- snap, bearing to pilot ring

1шт.

9

A27089

SNAP RING,2.36mm Thk, Ext

RING - snap, Serial Range: bearing-shaft

1шт.

10

A150524

BALL BEARING,2.1654" ID x 3.937" OD x 0.8268"

BEARING - rear, input shaft, 2-1/8 x 4-1/8 x 7/8" (54 x 104.78 x 22.23 mm)

1шт.

15

A138454

GEAR

- drive, hydraulic pump (30 teeth - 33 splines)

1шт.

16

A138456

GEAR

- idler, pump drive (25 teeth - 15 splines)

1шт.

17

A138455

SHAFT

- idler gear

1шт.

18

A150526

BALL BEARING,0.7874" ID x 2.0472" OD x 0.5906"

BEARING - idler gear shaft, 3/4 x 2 x 9/16" (19.05 x 50.8 x 14.29 mm)

2шт.

19

A27150

RING

- snap, idler shaft

1шт.

23

A138459

GEAR

- pump drive (30 teeth - 27 splines)

1шт.

24

A138458

COUPLING

- pump drive

1шт.

25

A150525

BALL BEARING,1.5748" ID x 2.6772" OD x 0.5906"

BEARING - coupling, pump drive, 1-1/2 x 2-11/16 x 9/16" (38.1 x 68.26 x 14.29 mm)

2шт.

26

A27414

RING

PISTON ASSEMBLY - PTO brake (Includes lining) (replaces A148391)

1шт.

27

A24361

PLUG

- pump drive opening, 2-3/8" OD cup type (60.33 mm)

1шт.

30

A75181

COUPLING

- pump drive (Without PTO)

1шт.

31

REF

INSTRUCTION

PUMP ASSEMBLY - hydraulic (See figure 268)

1шт.

32

A76477

GASKET

- pump mounting

1шт.

33

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

34

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.
