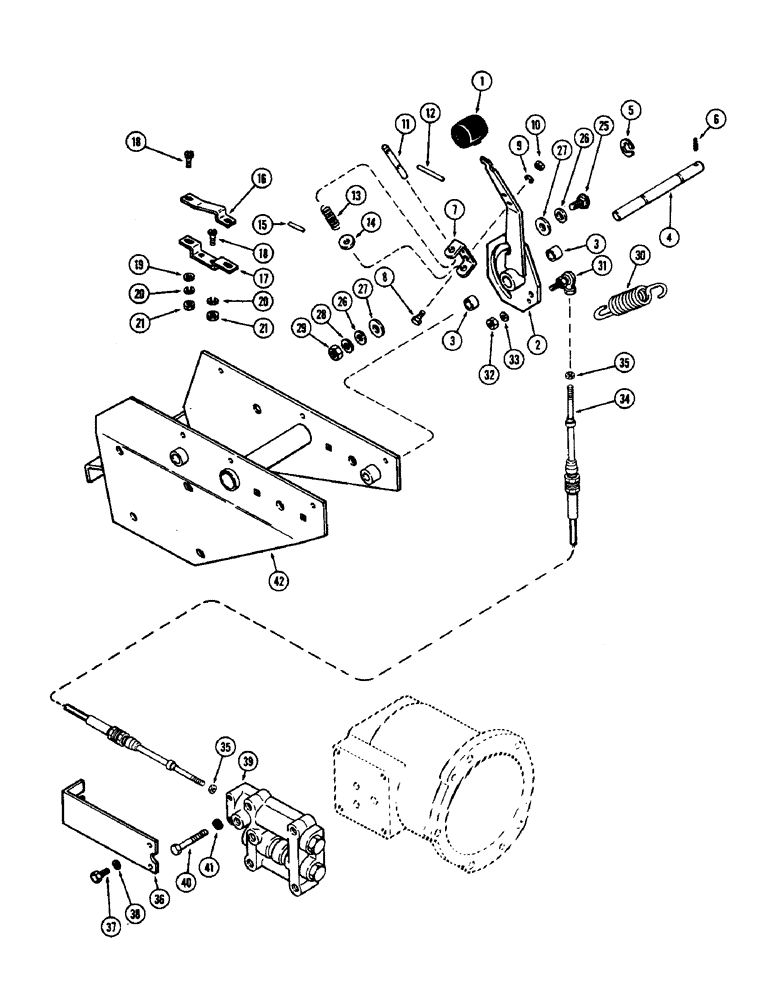

Запчасти Case IH 2870 (234) - PTO CONTROL LINKAGE (06) - POWER TRAIN

1

A137806

KNOB

- rubber, control lever

1шт.

2

A146900

LEVER ASSEMBLY - control, PTO, Includes: Ref. 3

1шт.

3

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- lever, 5/8 x 3/4 x 1/2" (15.88 x 19.05 x 12.7 mm)

2шт.

4

A75736

SHAFT

- lever

1шт.

5

A27785

CIRCLIP,#62, .480" Dia, E-Type

Ring, Retaining, , shaft #62, .480" Dia, E-Type

1шт.

6

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, (4.76 x 25.4 mm) 3/16" x 1", Slotted

1шт.

7

A65478

BRACKET

- PTO lever

1шт.

8

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

10

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

11

A65479

PIN

- PTO lever

1шт.

12

138-321

LOCK PIN,3/16" x 2", Slotted

Pin, (4.76 x 50.8 mm) 3/16" x 2", Slotted

1шт.

13

A137733

SPRING

- PTO pin

1шт.

14

195-529

WASHER,7/16", SAE

- 1/2 x 15/16 x 1/16" (12.7 x 23.81 x 1.59 mm)

1шт.

15

138-324

LOCK PIN,3/16" x 7/8", Slotted

PIN, (4.76 x 22.23 mm) 3/16" x 7/8", Slotted

1шт.

16

A66387

LOCK

- PTO lever

1шт.

17

A152444

SPACER - lock

1шт.

18

182-528

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

- #10 x 1/2" NF pan head

4шт.

19

195-101

WASHER,3/16"

- 1-1/16 x 2-1/2 x (27 x 63.5 x 4.76 mm) 3/16"

2шт.

20

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

21

129-37

NUT,#10-32

4шт.

25

111-324

CARRIAGE BOLT,Short NK, 3/8"-16 x 7/8", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 7/8", G2

2шт.

26

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 mm)

2шт.

27

A61069

DISC

- friction

2шт.

28

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

29

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

30

A35789

SPRING

- PTO return

1шт.

31

A75447

BALL JOINT

- lever to cable (#10-32)

1шт.

32

129-37

NUT,#10-32

1шт.

33

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

34

A149528

CABLE

- control, PTO valve, 78" long (1981.2 mm) (Replaces A142197 and A152750)

1шт.

35

129-37

NUT,#10-32

2шт.

36

A75979

BRACKET

- anchor, control cable

1шт.

37

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

38

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

39

REF

INSTRUCTION

VALVE ASSEMBLY - PTO control (See figure 250)

1шт.

40

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

4шт.

41

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

42

REF

INSTRUCTION

CONSOLE - control (See figure 336)

1шт.
