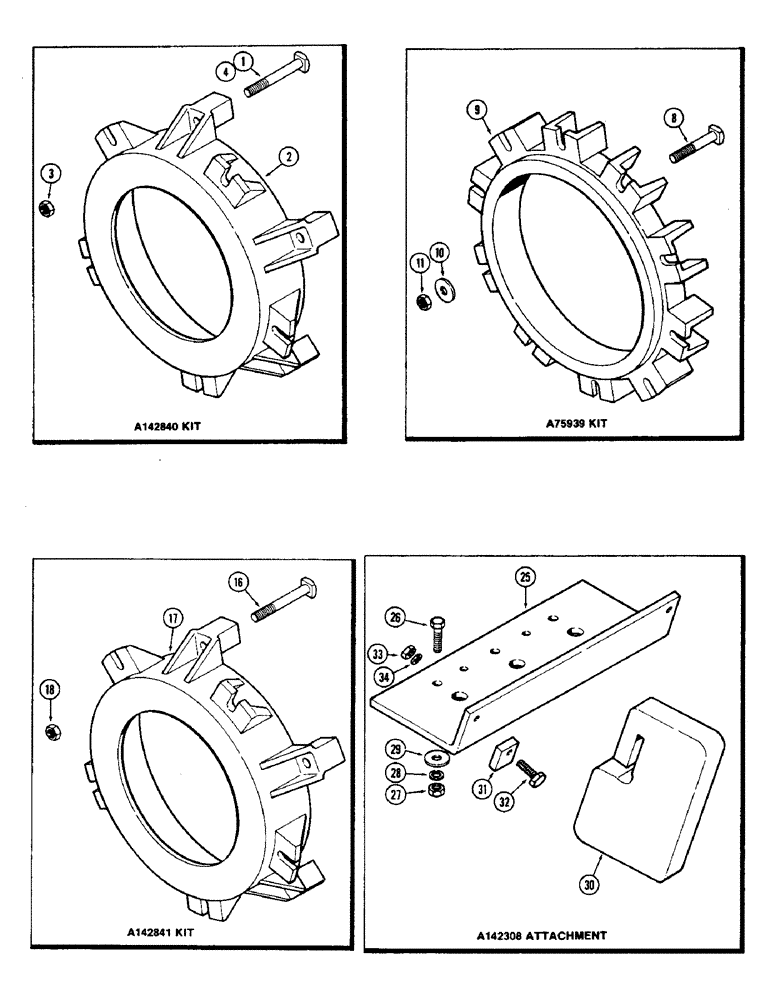

Запчасти Case IH 2870 (228) - WHEEL WEIGHTS (06) - POWER TRAIN

A142840

WEIGHT KIT - first set (Set of 2) (Machinery item) Use with 30" (762 mm) or 34" (863.6 mm) wheels, Includes: Ref. 1 - 4

1шт.

1

117-607

BOLT,Sq Hd, 3/4" - 10 x 6", Gr 5

- 3/4 x 6" NC, square head (For 34" wheels) (See Ref. 4)

10шт.

2

A140241

ADAPTER - wheel weight, 95 lbs. each (42.75 kg)

2шт.

3

129-108

NUT,3/4"-10, G5

10шт.

4

117-610

BOLT - 3/4 x 8" NC square head (For 30" wheels) Sq Hd, 3/4"-10 x 8", G5

10шт.

A75939

WEIGHT KIT - add on set (Set of 2) (Machinery item) Use with 30" (762 mm) or 34" (863.6 mm) wheels, Includes: Ref. 8 - 11

1шт.

8

117-606

BOLT,Sq Hd, 3/4" - 10 x 4-1/2", Gr 5

- 3/4 x 4-1/2" NC, square head

10шт.

9

A75550

WEIGHT - wheel, 100 lbs each (45 kg)

2шт.

10

195-109

WASHER,3/4"

- 13/16 x 2 x 3/16" (20.64 x 50.8 x 4.76 mm)

10шт.

11

129-108

NUT,3/4"-10, G5

10шт.

A142841

WEIGHT KIT - (Set of 2) (Machinery item) Used with 32" (812.8 mm) wheels, Includes: Ref. 16 - 18

1шт.

16

117-610

BOLT - 3/4 x 8" NC, square head Sq Hd, 3/4"-10 x 8", G5

10шт.

17

A140241

ADAPTER - wheel weight, 95 lbs each (42.75 kg)

2шт.

18

129-108

NUT,3/4"-10, G5

10шт.

A142308

WEIGHT ATTACHMENT - front end (Machinery item), Includes: Ref. 25 - 34

1шт.

25

A148867

PLATE

- mounting, front end weight

1шт.

26

113-712

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

- 3/4 x 2-1/2" NC hex, front end weights

3шт.

27

129-108

NUT,3/4"-10, G5

Front end weights 3/4"-10, G5

3шт.

28

192-27

LOCK WASHER,3/4"

WASHER, LOCK, , Front end weights 3/4"

3шт.

29

A31266

WASHER

- 3/4 x 2-1/2 x 3/16" (19.05 x 53.98 x 4.78 mm), front end weights

3шт.

30

A148862

COUNTERWEIGHT

WEIGHT - front end, 85 lbs (38.25 kg)

10шт.

31

A142230

STOP

BOLT - stop, weight, front end

2шт.

32

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Front end weights Hex, 1/2"-13 x 2", G5

2шт.

33

129-105

NUT,Hex, 1/2" - 13, Gr 5

Front end weights 1/2"-13, G5

2шт.

34

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Front end weights 1/2"

2шт.
