(226) - DUAL WHEELS, FOR 34 INCH (863.6 MM) TIRES

Запчасти Case IH 2870 (226) - DUAL WHEELS, FOR 34 INCH (863.6 MM) TIRES (06) - POWER TRAIN

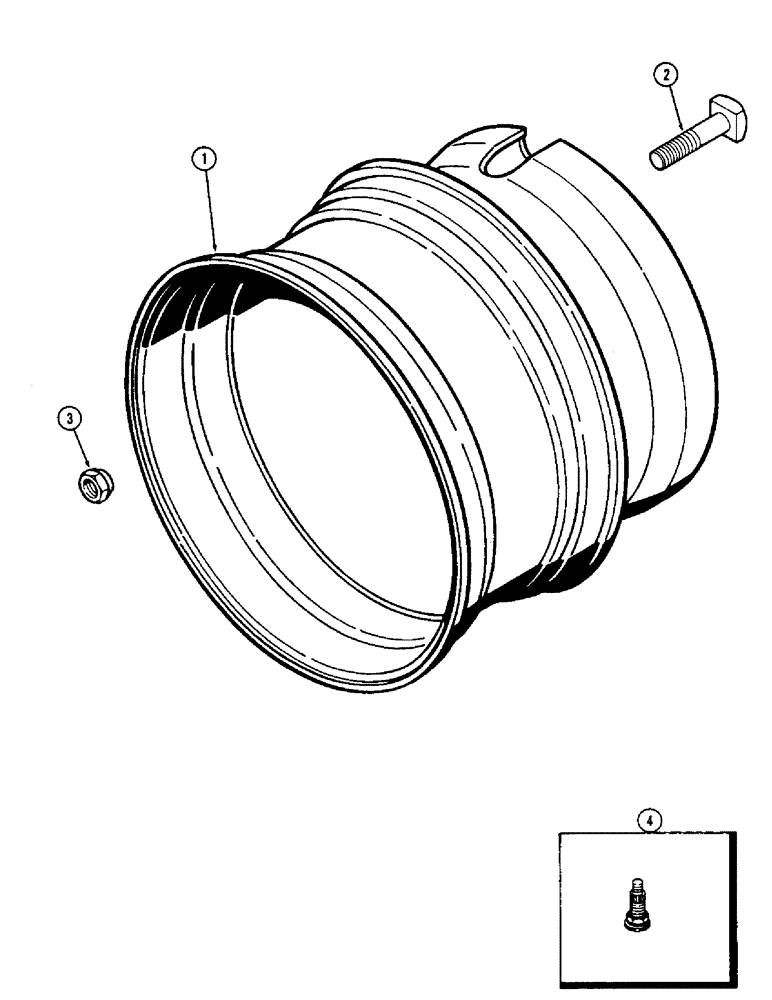

Схема запчастей Case IH 2870 - (226) - DUAL WHEELS, FOR 34 INCH (863.6 MM) TIRES (06) - POWER TRAIN
3
1
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A148140

RIM

- outer, dual wheel (For 20.8 x 34 tire)

4шт.

A76434 Spacer for Dual Wheel Spacing

1шт.

2

A160853

SQUARE BOLT

- 3/4 x 5-1/4" NC square head (Replaces A152296)

40шт.

3

A160864

WHEEL NUT

- 3/4" NC hex (90 degree seat) (Replaces A141621)

40шт.

4

A20058

VALVE STEM

- Tubeless tire

4шт.
