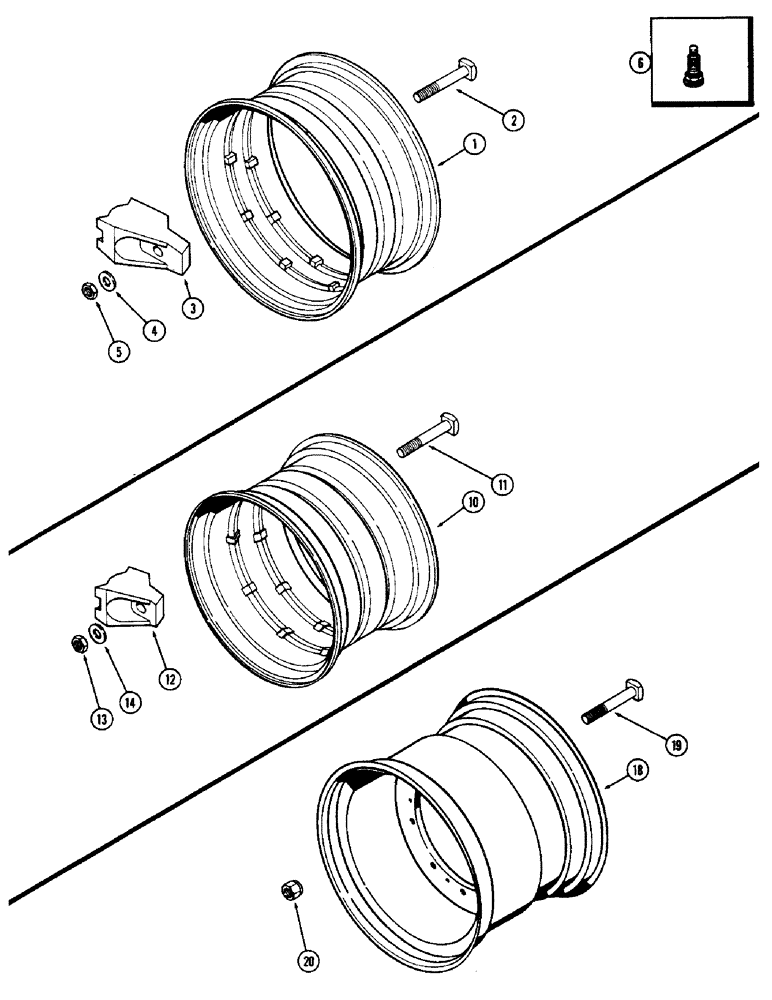

Запчасти Case IH 2870 (224) - SINGLE WHEELS, FOR 34 INCH (863.6 MM) TIRES (06) - POWER TRAIN

1

A75887

WHEEL

RIM - wheel (For 18.4 x 34 tire)

4шт.

1

A75891

RIM

- wheel (For 20.8 x 34 tire)

4шт.

2

A160853

SQUARE BOLT

- clamp, 3/4 x 5-1/4" NC square head (Replaces A152296)

40шт.

3

A139724

CLAMP

- rim, double position

40шт.

4

A141125

WASHER

- clamp nut, 3/4 x 1-1/4 x 3/16" (19.05 x 31.75 x 4.76 mm)

40шт.

5

129-137

NUT,3/4"-10, G5

4шт.

6

A20058

VALVE STEM

- Tubeless tire

4шт.

10

A75890

RIM

- wheel (For 23.1 x 30 tire), (762 mm)

4шт.

11

A160853

SQUARE BOLT

- clamp, 3/4 x 5-1/4" NC square head (Replaces A152296), for 30" (762 mm) tire

40шт.

12

A75894

CLAMP

- rim, double position, for 30" (762 mm) tire

40шт.

13

129-137

NUT,3/4"-10, G5

for 30" (762 mm) tire 3/4"-10, G5

40шт.

14

A141125

WASHER

- clamp nut, 3/4 x 1-1/4 x 3/16" (19.05 x 31.75 x 4.76 mm), for 30" (762 mm) tire

40шт.

18

A77155

WHEEL - (For 24.5 x 32 tire), for 30" (762 mm) tire

4шт.

18

A148139

WHEEL

- (For 30.5 x 32 tire), for 30" (762 mm) tire

4шт.

19

117-614

SQUARE BOLT,3/4" - 10 x 4", Gr 5

- wheel, 3/4 x 4" NC square head, for 30" (762 mm) tire

40шт.

20

A160864

WHEEL NUT

- wheel, 3/4" NC hex (90 degree seat) (Replaces A141621), for 30" (762 mm) tire

40шт.
